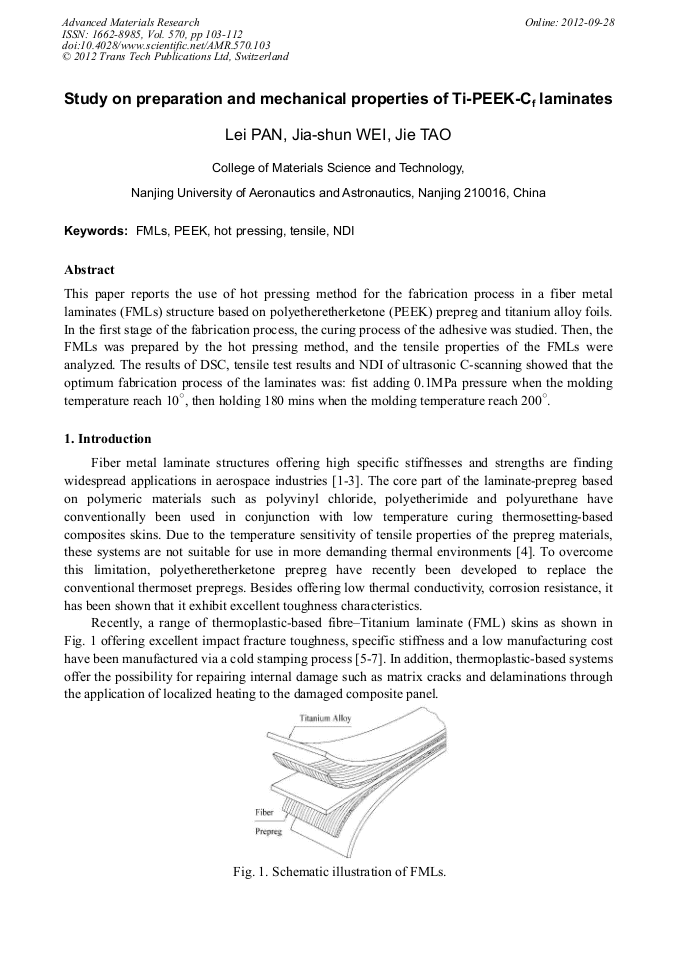

Study on Preparation and Mechanical Properties of Ti-PEEK-C_f Laminates

Abstract:

This paper reports the use of hot pressing method for the fabrication process in a fiber metal laminates (FMLs) structure based on polyetheretherketone (PEEK) prepreg and titanium alloy foils. In the first stage of the fabrication process, the curing process of the adhesive was studied. Then, the FMLs was prepared by the hot pressing method, and the tensile properties of the FMLs were analyzed. The results of DSC, tensile test results and NDI of ultrasonic C-scanning showed that the optimum fabrication process of the laminates was: fist adding 0.1MPa pressure when the molding temperature reach 10, then holding 180 mins when the molding temperature reach 200.

• Periodical: Advanced Materials Research (Volume 570)
• Pages: 103-112
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.570.103
• Online since: September 2012
• Authors: Lei Pan, Jia Shun Wei, Jie Tao
• Keywords: FMLs, Hot Pressing, NDI, PEEK, Tensile

References

[1] P. Mathivanan, M. Balakrishnan and H. Krishnan. Hybrid Laminates Metal Thickness, Fiber Volume Fraction Effect on the Tensile Properties, Debonding of Hybrid Laminates[J]. Journal of Reinforced Plastics and Composites, 2010(14), Vol. 29: 112-120.

DOI: 10.1177/0731684409345616

[2] G. Allegri, M.R. Wisnom, S.R. Hallett. A simplified approach to the damage tolerance design of asymmetric tapered laminates. Part I: Methodology development[J]. Composites Part A: Applied Science and Manufacturing, 2010, 41(10): 1388~1394.

DOI: 10.1016/j.compositesa.2010.05.009

[3] A. Vlot. Glare, History of the Development of a New Aircraft Material[M]. Kluwer Academic Publishers, 2001, 35~36.

[4] Lucas P Durand, Composite Materials Research Progress[M]. Nova Science Publishers, Inc. 2008, 13~14.

[5] B. Kolesnikov, L. Herbeck, A. Fink. CFRP/titanium hybrid material for improving composite bolted joints[J]. Composite Structures, 2008, 83(4): 368~370.

DOI: 10.1016/j.compstruct.2007.05.010

[6] D. A. Burianek, A. E. Giannakopoulos, S. M. Spearing. Modeling of facesheet crack growth in titanium–graphite hybrid laminates, Part I[J]. Engineering Fracture Mechanics, 2003, 70(6): 775~778.

DOI: 10.1016/s0013-7944(02)00086-3

[7] P. Corte´s , W.J. Cantwell. The prediction of tensile failure in titanium-based thermoplastic fibre–metal laminates[J], Composites Science and Technology 66 (2006): 2306–2316.

DOI: 10.1016/j.compscitech.2005.11.031

[8] M. A. Shayed, Ch. Cherif, R. D. Hund , T. Cheng, F. Osterod Carbon and Glass Fibers Modified by Polysilazane Based Thermal Resistant Coating[J] Textile Research Journal Vol 80(11): 1118–1128.

DOI: 10.1177/0040517509357648

[9] R. R. Habeb, G. S. Walker, I. A. Jones. etc. Fabrication Effects on Properties of Composites for Medical Applications: 1. CompositePreparation and Characterization[J]. Journal of Reinforced Plastics and Composites, 2011, 29(1): 112-123.

DOI: 10.1177/0731684408096425

[10] Shang-Lin Gao, Jang-Kyo Kim. Cooling rate in-uences in carbon fibre/PEEK composites. Part II: interlaminar fracture toughness[J], Composites: Part A 32 (2001) 763-774.

DOI: 10.1016/s1359-835x(00)00188-3

[11] Z. Mikulik, D. W. Kelly, R. S. Thomson etc . Fracture mechanics based predictions of initiation and growth of multi-level delaminations in a composite specimen[J]. International Journal of Fracture, 2010, 170( 2): 145-157.

DOI: 10.1007/s10704-011-9619-5

[12] C.A. Rideout, S. C Taylor. Advanced deep focus acoustic microscope for nondestructive inspection of metals and composite materials[J]. Aerospace conference, 2009 IEEE: 1 – 10.

DOI: 10.1109/aero.2009.4839664

[13] S. Ksouri1, M. Matmat, H. Boukabache, etc. Damage detection in composite laminates aeronautics structures through accelerometers network[J]. Journal Advances in Materials Sciences, 2011, 11(2): 37-43.

DOI: 10.2478/v10077-011-0009-5

[14] Wei Jia-shun, Pan Lei, Tao Jie, et al. The influence of surface treatment on the wettability of carbon fiber and the tensile strength of CFRP. Fiber Composites, 2010(4): 36-40.
