Synthesis of β-Sialon/Ti(C,N) Composites Using Low and Middle Grade Bauxite and Ilmenite by Carbothermal Reduction-Nitridation

Abstract:

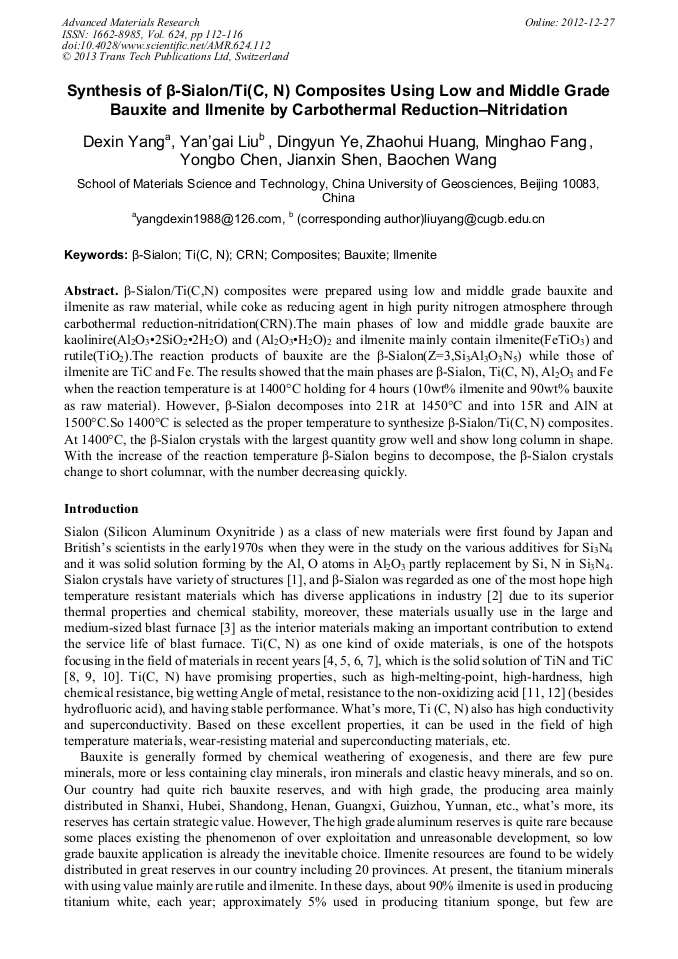

β-Sialon/Ti(C,N) composites were prepared using low and middle grade bauxite and ilmenite as raw material,while coke as reducing agent in high purity nitrogen atmosphere through carbothermal reducrion-nitridation(CRN).The main phases of low and middle grade bauxite are kaolinire(Al2O3•2SiO2•2H2O) and (Al2O3•H2O)2 and ilmenite mainly contain ilmenite(FeTiO3) and rutile(TiO2).The reaction products of bauxite are the β-Sialon(Z=3,Si3Al3O3N5) while those of ilmenite are TiC and Fe.The results showed that the main phases are β-Sialon,Ti(C,N),Al2O3 and Fe when the reaction temperature is at 1400°C holding for 4 hours(10wt% ilmenite and 90wt% bauxite as raw material).However,β-Sialon decomposes into 21R at 1450°C and into 15R and AlN at 1500°C.So 1400°C is selected as the proper temperature to synthesize β-Sialon/Ti(C,N) composites.At 1400°C,the β-Sialon crystals with the largest quantity grow well and show long column in shape.With the increase of the reacrion temperature β-Sialon begin to decompose,the β-Sialon crystals change to short columnar,with the number decreasing quickly.

• Periodical: Advanced Materials Research (Volume 624)
• Pages: 112-116
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.624.112
• Online since: December 2012
• Authors: De Xin Yang, Yan Gai Liu, Ding Yun Ye, Zhao Hui Huang, Ming Hao Fang, Yong Bo Chen, Jian Xin Shen, Bao Chen Wang
• Keywords: Bauxite, Composite, CrN, Ilmenite, ß-SiAlON, Ti(C,N)

References

[1] J. Yang, X. X. Xue, X. Liu, T. Jing, Synthesis of O'-Sialon powders by Carbothermal Reduction-Nitridation, T Nonferr Metal Soc12(2002) 347-352.

[2] Q. H. Tang, X. T. Wang, Study on the Synthesis of SiAlON combination of silicon carbide materials or corundum at different atmosphere, Refractories-Ussr+43(2009)164-169.

[3] X. Y. Luo, J. L. Sun, J. X. Wang, etc., Synthesis of the refractory of β-SiAlON combination of corundum, Refractories-Ussr+33(1999) 133~135.

[4] J X Deng, T K Can, J L Sun, Microstructure and Mechanical Properties of Hot-Pressed Al2O3-TiC Ceramic Composites with the Additions of Solid Lubricants, Ceram Intern31 (2005) 249-256.

DOI: 10.1016/j.ceramint.2004.05.009

[5] P Yu, Z Mei, S C Tjong, Structure thermal and mechanical properties of in situ Al-based metal matrix composite reinforced with Al2O3 and TiC submicron particles, Mater Chem Phy 93(2005) 109~116.

DOI: 10.1016/j.matchemphys.2005.02.028

[6] Z.G. Zou, H Y Chen, Mechanism Properties and Microstructure of Titanium Carbide–Iron Metal- Ceramic from Ilmenite by In–Situ Carbothermic Reduction, Mater Sci Forum. (2003) 287-29.

DOI: 10.4028/www.scientific.net/msf.423-425.287

[7] Z G Zou, J L Li, Y Wu, the Study of Self-Propagating High-Temperature Synthesis of TiC-Al2O3/Fe from Natural Ilmenite, Key Eng Mater. 280(2005)1103-1106.

DOI: 10.4028/www.scientific.net/kem.280-283.1103

[8] M X Gao, Y Pan, F J Oliveira, et al, The Formation of Core-Rim Structures in Fe40Al/(TiC-TiN-WC) Cermets Produced by Pressure less Melt Infiltration, Mater Sci Eng. 371(2004) 277-282.

DOI: 10.1016/j.msea.2003.12.001

[9] M X Gao, F J Oliveira, Y Pan, et al, Mechanical Properties and Microstructure of Fe40Al/TiC C composites with Low Content of Intermetallic, Mater Sci Forum. (2004) 239-243.

DOI: 10.4028/www.scientific.net/msf.455-456.239

[10] F.Velasco, R.Isabel, N.Anton, et al, TiCN-high speed composites: sinter ability and properties, Composites, Part A. 33(2002) 819-827.

DOI: 10.1016/s1359-835x(02)00024-6

[11] N.J. Welham, P.E. Willis, Formation of TiN/TiC-Fe Composites from ilmenite (FeTiO3) Concentrate, Metall. &Mater, Trans. B. 29B (1998)1077-1083.

DOI: 10.1007/s11663-998-0077-z

[12] K. Das, T. K. Bandyopadhyay, S. Das, A review on the various routes of TiC reinforced ferrous based composites, J. Mater. Sci... 37(2002) 3884.
