A New Design of Ultrasonic Power Based on ARM

Article Preview

Abstract:

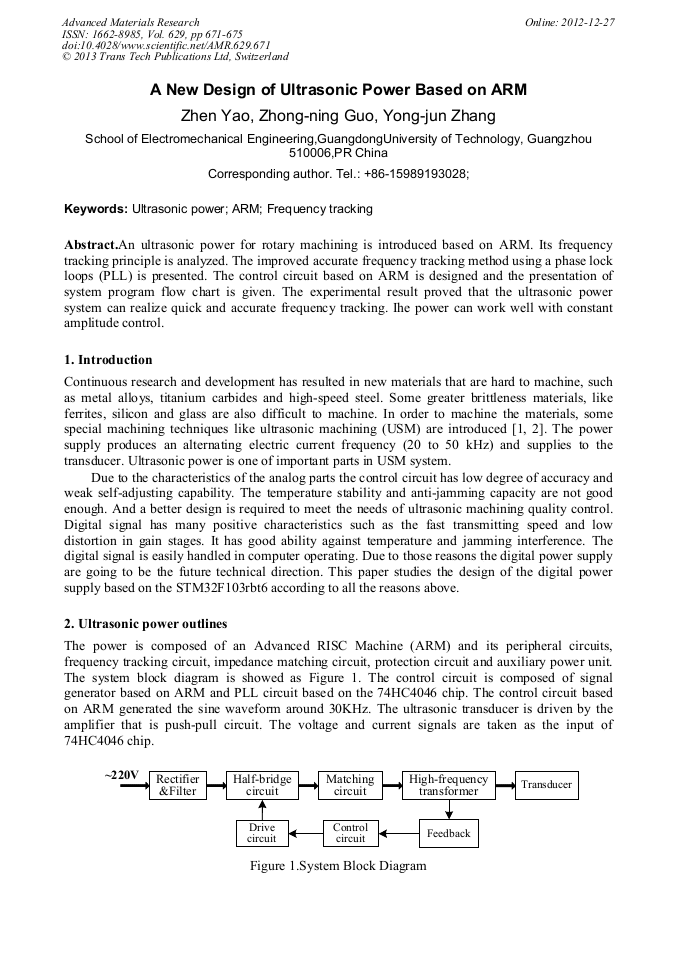

An ultrasonic power for rotary machining is introduced based on ARM. Its frequency tracking principle is analyzed. The improved accurate frequency tracking method using a phase lock loops (PLL) is presented. The control circuit based on ARM is designed and the presentation of system program flow chart is given. The experimental result proved that the ultrasonic power system can realize quick and accurate frequency tracking. Ihe power can work well with constant amplitude control.
