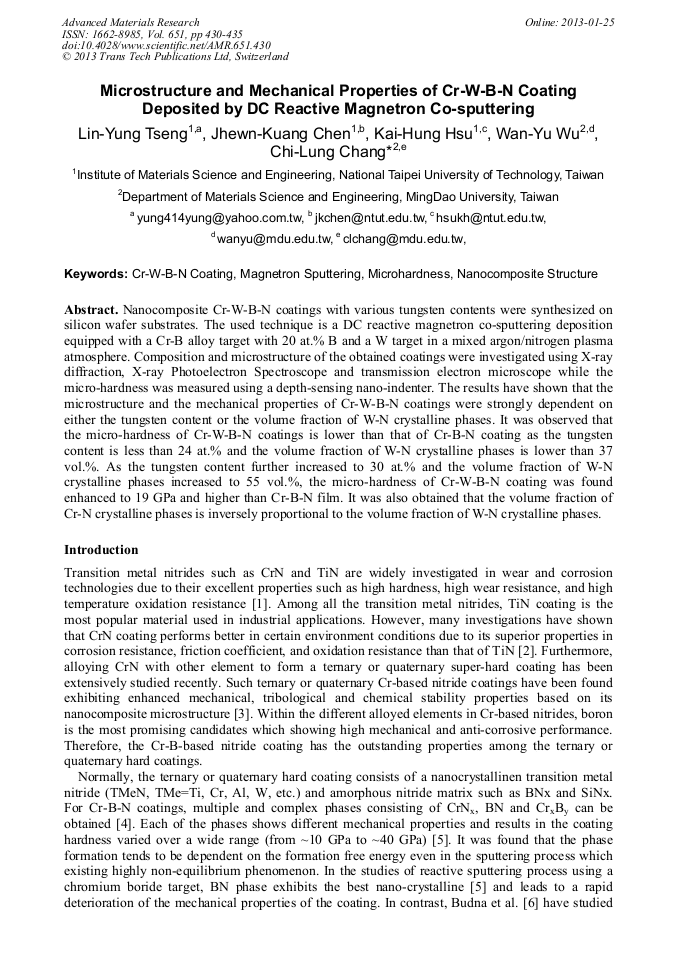

Microstructure and Mechanical Properties of Cr-W-B-N Coating Deposited by DC Reactive Magnetron Co-Sputtering

Abstract:

Nanocomposite Cr-W-B-N coatings with various tungsten contents were synthesized on silicon wafer substrates. The used technique is a DC reactive magnetron co-sputtering deposition equipped with a Cr-B alloy target with 20 at.% B and a W target in a mixed argon/nitrogen plasma atmosphere. Composition and microstructure of the obtained coatings were investigated using X-ray diffraction, X-ray Photoelectron Spectroscope and transmission electron microscope while the micro-hardness was measured using a depth-sensing nano-indenter. The results have shown that the microstructure and the mechanical properties of Cr-W-B-N coatings were strongly dependent on either the tungsten content or the volume fraction of W-N crystalline phases. It was observed that the micro-hardness of Cr-W-B-N coatings is lower than that of Cr-B-N coating as the tungsten content is less than 24 at.% and the volume fraction of W-N crystalline phases is lower than 37 vol.%. As the tungsten content further increased to 30 at.% and the volume fraction of W-N crystalline phases increased to 55 vol.%, the micro-hardness of Cr-W-B-N coating was found enhanced to 19 GPa and higher than Cr-B-N film. It was also obtained that the volume fraction of Cr-N crystalline phases is inversely proportional to the volume fraction of W-N crystalline phases.

• Periodical: Advanced Materials Research (Volume 651)
• Pages: 430-435
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.651.430
• Online since: January 2013
• Authors: Lin Yung Tseng, Jhewn Kuang Chen, Kai Hung Hsu, Wan Yu Wu, Chi Lung Chang
• Keywords: Cr-W-B-N Coating, Magnetron Sputtering, Microhardness, Nanocomposite Structure

References

[1] M.C. Kang, S.K. Je, K.H. Kim, B.S. Shin, D.H. Kwon, J.S. Kim, Surf. Coat. Technol. 202 (2008) 5629.

[2] C. Nouveau, M. A. Djouadi, O. Banakh, R. Sanjinés, F. Lévy C. Nouveau, M. A. Djouadi, Thin Solid Films 398-399 (2001) 490.

DOI: 10.1016/s0040-6090(01)01435-3

[3] Chi-Lung Chang, Chi-Song Huang, Chi-Song Huang, Jui-Yun Jao, Surf. Coat. Technol. 205 (2011) 2730.

[4] T.Z. Gorishnyy , D. Mihut , S.L. Rohde , S.M. Aouadi, Thin Solid Films, 445 (2003) 96.

DOI: 10.1016/s0040-6090(03)01189-1

[5] K.P. Budna , P.H. Mayrhofer , J. Neidhardt , É. Hegedũs , I. Kovács ,L. Tóth, B. Pécz, C. Mitterer, Surf. Coat. Technol. 202 (2008) 3088.

DOI: 10.1016/j.surfcoat.2007.11.009

[6] K.P. Budna, J. Neidhardt, P.H. Mayrhofer, C. Mitterer, Vacuum 82 (2008) 771.

[7] M. Ohring, The Materials Science of Thin Films, Academic Press, New York, 1992, p.109.

[8] Fan-Bean Wu, Shih-Kang Tien, Jenq-Gong Duh, Surf. Coat. Technol. 200 (2005) 1514.

[9] L. Maill, P. Aubert, C. Sant, P. Garnier, Surf. Coat. Technol. 180-181 (2004) 483.

[10] Chih-Hsiung Lin, Jenq-Gong Duh, Bao-Shun Yau, Surf. Coat. Technol. 201 (2006) 1316.

[11] G. Zhang, L. Wang, P. Yan, Q. Xue, Journal of Alloys and Compounds 486 (2009) 227.

[12] Bao-Shun Yau , Cheng-Wei Chu, Doris Lin, William Lee, Jenq-Gong Duh, Chih-Hsiung Lin, Thin Solid Films 516 (2008) 1877.

DOI: 10.1016/j.tsf.2007.10.007

[13] K.P. Budna , P.H. Mayrhofer , J. Neidhardt , É. Hegedũs , I. Kovács ,L. Tóth, B. Pécz, C. Mitterer, Surf. Coat. Technol. 202 (2008) 3088.

DOI: 10.1016/j.surfcoat.2007.11.009

[14] H.L. Zhang, D.Z. Wang, N.K. Huang, Applied Surface Science 150 (1999) 34.

[15] P.H. Mayrhofer, G. Tischler, C. Mitterer, Surf. Coat. Technol. 142-144 (2001) 78.
