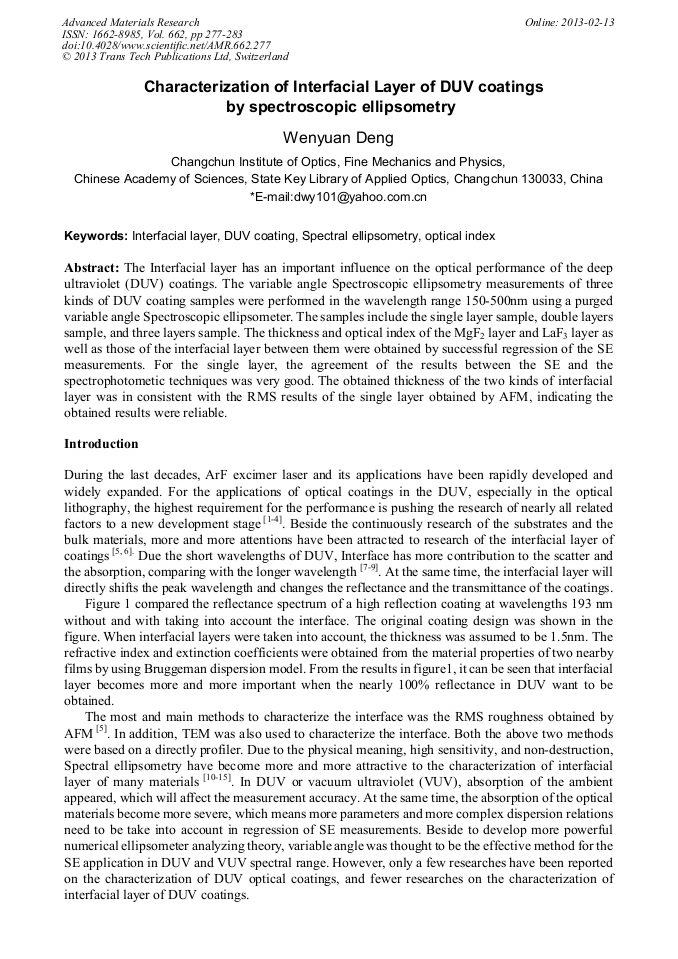

Characterization of Interfacial Layer of DUV Coatings by Spectroscopic Ellipsometry

Abstract:

The Interfacial layer has an important influence on the optical performance of the deep ultraviolet (DUV) coatings. The variable angle Spectroscopic ellipsometry measurements of three kinds of DUV coating samples were performed in the wavelength range 150-500nm using a purged variable angle Spectroscopic ellipsometer. The samples include the single layer sample, double layers sample, and three layers sample. The thickness and optical index of the MgF2 layer and LaF3 layer as well as those of the interfacial layer between them were obtained by successful regression of the SE measurements. For the single layer, the agreement of the results between the SE and the spectrophotometic techniques was very good. The obtained thickness of the two kinds of interfacial layer was in consistent with the RMS results of the single layer obtained by AFM, indicating the obtained results were reliable.

• Periodical: Advanced Materials Research (Volume 662)
• Pages: 277-283
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.662.277
• Online since: February 2013
• Authors: Wen Yuan Deng
• Keywords: DUV Coating, Interfacial Layer, Optical Index, Spectroscopic Ellipsometry

References

[1] D. Basting, G. Marowsky. Excimer laser technology, (Springer, 2005).

[2] Koji Kakizaki, Yoichi Sasaki, and Toyoharu Inoue. High-repetition-rate, 6 kHz and long-pulse-duration, 50 ns ArFexcimer laser for sub-65 nm lithography [J]. REVIEW OF SCIENTIFIC INSTRUMENTS, 77, 035109(2006).

DOI: 10.1063/1.2182744

[3] C. Zaczek, S. Müllender, H. Enkisch, F. Bijkerk. Coatings for next generation lithography. Proc. of SPIE Vol. 7101: 71010X-1.

DOI: 10.1117/12.796944

[4] V. Liberman, M. Rothschild, J. H. C. Sedlacek, R. S. Uttaro. Marathon Testing of Optical Materials for 193-nm Lithographic Applications. Proc SPIE 3578, 1(1998).

DOI: 10.1117/12.344432

[5] A. Duparre, R. Thielsch, N. Kaiser, S. Jakobs, K. R. Mann, and E. Eva. Surface finish and optical quality of CaF2 for UV lithography applications. Proc SPIE 3334, 1048 (1998).

DOI: 10.1117/12.310735

[6] Oliver Apel, Michael Schulz-Grosser, Uwe Leinhos, MichaelKennedy, Klaus Mann, Rainer Schuhmann. Interfacial absorption of DUV coatings. SPIE Vol. 4347 (2001)17-23.

DOI: 10.1117/12.425030

[7] T. Yamaguchi, H. Tamura,S. Taga, S. Tsuchiya, App Opt. Vol. 25, No. 16: 2703-2706 (1986).

[8] W. Arens, D. Ristau, J. Ullmann, C. Zaczek, R. Thielsch, N. Kaiser, A. Duparre, 0. Apel, K. Mann, H. Lauth, H. Bernitzki, J. Ebert, St. Schippel, H. Heyer. Proc. SPIE 3902, 250-258 (2000).

DOI: 10.1117/12.379314

[9] B. C. Li, S. Martin, E. Welsch, R. Thielsch, J. Heber and N. Kaiser,. Proc. SPIE 3902, 470-479 (2000).

[10] James N. Hilfiker, Neha Singh, Tom Tiwald, Diana Convey, Steven M. Smith, Jeffrey H. Baker. Survey of methods to characterize thin absorbing films with Spectroscopic Ellipsometry. Thin Solid Films 516 (2008) 7979 –7989.

DOI: 10.1016/j.tsf.2008.04.060

[11] H.G. Tompkins, E.A. Irene (Eds. ), Handbook of Ellipsometry, William Andrew Publishing, Norwich NY, (2005).

[12] H. Fujiwara, Spectroscopic Ellipsometry Principles and Applications, John Optical Wiley & Sons Ltd, West Sussex, England, (2007).

[13] R.M.A. Azzam, N.M. Bashara, Ellipsometry and Polarized Light, Elsevier Science B.V., Amsterdam, the Netherlands, (1977).

[14] H.G. Tompkins, W.A. McGahan, Spectroscopic Ellipsometry and Reflecto metry: A User's Guide, John Wiley & Sons Inc., New-York NY, (1999).

[15] G.E. Jellison, in: H.G. Tompkins, E.A. Irene (Eds. ), Handbook of Ellipsometry, William Andrew Publishing, Norwich NY, 2005, p.262.
