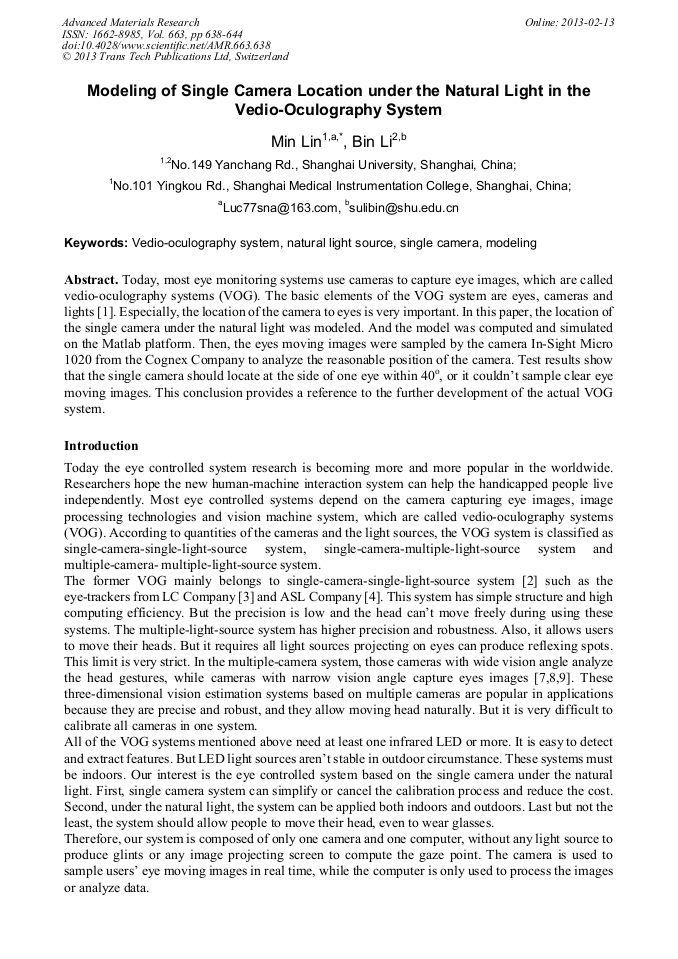

Modeling of Single Camera Location under the Natural Light in the Vedio-Oculography System

Abstract:

Today, most eye monitoring systems use cameras to capture eye images, which are called vedio-oculography systems (VOG). The basic elements of the VOG system are eyes, cameras and lights [1]. Especially, the location of the camera to eyes is very important. In this paper, the location of the single camera under the natural light was modeled. And the model was computed and simulated on the Matlab platform. Then, the eyes moving images were sampled by the camera In-Sight Micro 1020 from the Cognex Company to analyze the reasonable position of the camera. Test results show that the single camera should locate at the side of one eye within 40o, or it couldn’t sample clear eye moving images. This conclusion provides a reference to the further development of the actual VOG system.

• Periodical: Advanced Materials Research (Volume 663)
• Pages: 638-644
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.663.638
• Online since: February 2013
• Authors: Min Lin, Bin Li
• Keywords: Modeling, Natural Light Source, Single Camera, Vedio-Oculography System

References

[1] Arantxa Villanueva, Rafael Cabeza, in: Models for Gaze Tracking Systems. EURASIP Journal on Image and Video Processing, Volume 2007，doi: 10. 1155/2007/23570.

DOI: 10.1155/2007/23570

[2] D. Hansen, Q. Ji, in: In the Eye of the Beholder: A Survey of Models for Eyes and Gaze. IEEE trans. on PAMI, 2010: 32(3): 478-500.

DOI: 10.1109/tpami.2009.30

[3] LC Technologies, Eyegaze Systems, McLean, Va, USA, http: /www. eyegaze. com.

[4] Applied Science Laboratories, Bedford, Mass, USA, http: /www. a-s-l. com.

[5] S. W. Shih, Y. Wu and J. Liu, in: A calibration-free gaze tracking technique. In Proceedings of the 15th International Conference on Pattern Recognition, 2000: 201-204.

DOI: 10.1109/icpr.2000.902895

[6] E. Guestrin, M. Eizenman, in: General theory of remote gaze estimation using the pupil center and corneal reflections. IEEE Transactions on Biomedical Engineering, 2006, 53(6): 1124-1133.

DOI: 10.1109/tbme.2005.863952

[7] J. G. Wang, E. Sung, R. Venkateswarlu, in: Estimating the eye gaze from one eye. Computer Vision and Image Understanding, 2005, 98(1): 83-103.

DOI: 10.1016/j.cviu.2004.07.008

[8] Q. Ji, Z. Zhu, in: Eye and gaze tracking for interactive graphic display. In Proceedings of the 2nd international symposium on Smart graphics, 2002: 79-85.

DOI: 10.1145/569005.569017

[9] Z. Zhu, Q. Ji and K. Bennett, in: Nonlinear eye gaze mapping function estimation via support vector regression. 18th International Conference on Pattern Recognition, 2006(1): 1132-1135.

DOI: 10.1109/icpr.2006.864

[10] Yan Yang, in: Human-Machine Engineering in Products Design, edited by Heilongjiang Science & Technology Publishing(1997).
