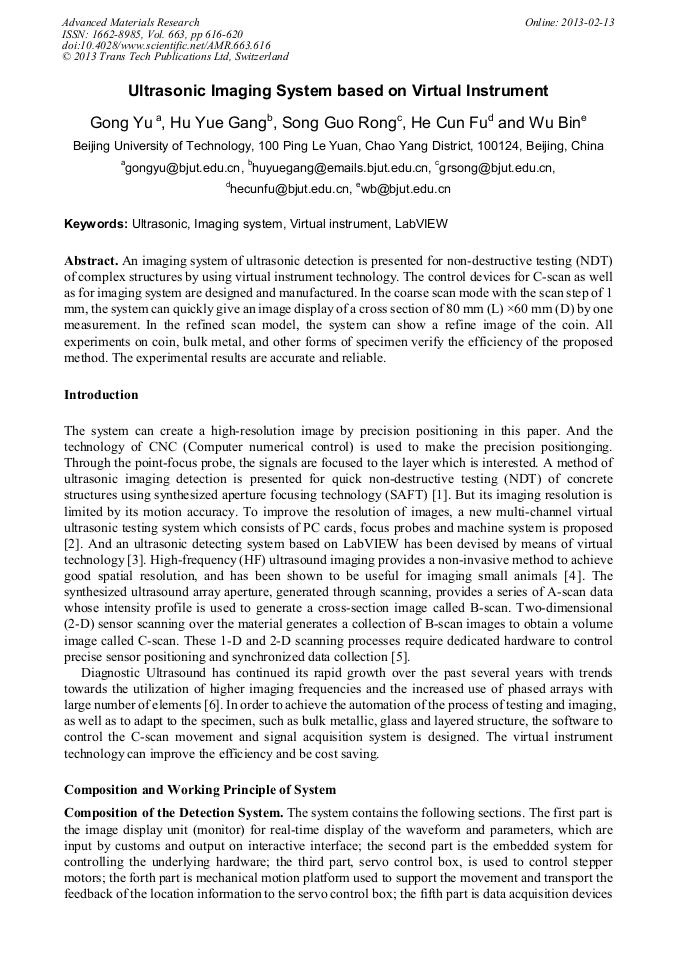

Ultrasonic Imaging System Based on Virtual Instrument

Abstract:

An imaging system of ultrasonic detection is presented for non-destructive testing (NDT) of complex structures by using virtual instrument technology. The control devices for C-scan as well as for imaging system are designed and manufactured. In the coarse scan mode with the scan step of 1 mm, the system can quickly give an image display of a cross section of 80 mm (L) ×60 mm (D) by one measurement. In the refined scan model, the system can show a refine image of the coin. All experiments on coin, bulk metal, and other forms of specimen verify the efficiency of the proposed method. The experimental results are accurate and reliable.

• Periodical: Advanced Materials Research (Volume 663)
• Pages: 616-620
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.663.616
• Online since: February 2013
• Authors: Yu Gong, Yue Gang Hu, Guo Rong Song, Cun Fu He, Bin Wu
• Keywords: Imaging System, LabVIEW, Ultrasonic, Virtual Instrument (VI)

References

[1] Z.X. Shao, L.H. Shi, Z. Shao and Jian Cai: Rev. Sci. Instrum. Vol. 82 (2011), p.073708.

[2] X.F. Zheng and Y.H. Dong: Int. Conf. E-Prod. E-Serv. E-Entertain., ICEEE (2010).

[3] C.Y. Miao, F. Zhou, C.Q. Ye and J. Liu: Proc. Int. Congr. Image Signal Process., CISP (2009).

[4] L.Q. Zhang, X.C. Xu, C.H. Hu, L. Sun, J.T. Yen, J.M. Cannata and K.K. Shung: IEEE Int. Ultrasonics Symposium (2008), pp.1730-3.

[5] R. Demirli, X. Riveng, Y.D. Zhang, C. Ioana and M.G. Amin: Proc. SPIE - Int. Soc. Opt. Eng. Vol. 7983 (2011), p.798338.

[6] G. Trahey, D. Zhao, J.A. Miglin and S.W. Smith: IEEE Trans. Ultrason. Ferroelectr. Freq. Control Vol. 37 (1990), pp.418-27.
