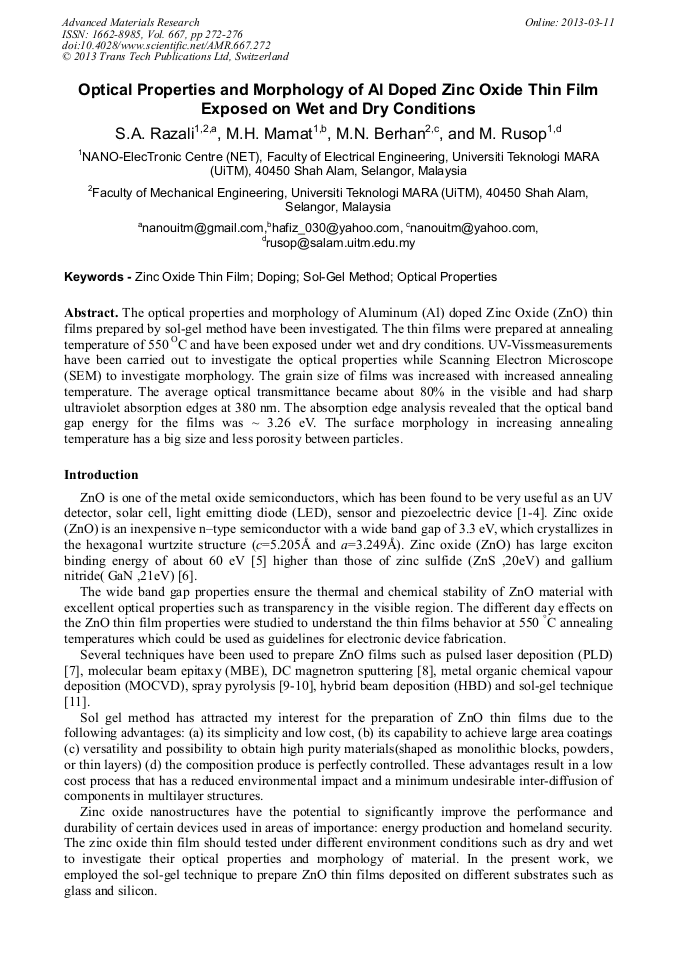

Optical Properties and Morphology of Al Doped Zinc Oxide Thin Film Exposed on Wet and Dry Conditions

Abstract:

The optical properties and morphology of Aluminum (Al) doped Zinc Oxide (ZnO) thin films prepared by sol-gel method have been investigated. The thin films were prepared at annealing temperature of 550 OC and have been exposed under wet and dry conditions. UV-Vissmeasurements have been carried out to investigate the optical properties while Scanning Electron Microscope (SEM) to investigate morphology. The grain size of films was increased with increased annealing temperature. The average optical transmittance became about 80% in the visible and had sharp ultraviolet absorption edges at 380 nm. The absorption edge analysis revealed that the optical band gap energy for the films was ~ 3.26 eV. The surface morphology in increasing annealing temperature has a big size and less porosity between particles.

• Periodical: Advanced Materials Research (Volume 667)
• Pages: 272-276
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.667.272
• Online since: March 2013
• Authors: S.A. Razali, Mohamad Hafiz Mamat, M.N. Berhan, Mohamad Rusop Mahmood
• Keywords: Doping, Optical Property, Sol-Gel Method, Zinc Oxide Thin Film

References

[1] Keita Kakiuchi, Masaru Saito, Shinobu Fujihara, Fabrication of ZnO films consisting of densely accumulated mesoporous nanosheets and their dye-sensitized solar cell performance, Thin Solid Films 516 (2008) (2026).

DOI: 10.1016/j.tsf.2007.07.136

[2] Jiming Bian, Weifeng Liu, Jingchang Sun, Hongwei Liang, Journal of Materials Processing Technology 184 (2007) 451-454.

[3] M. Suchea, S. Christoulakis, K. Moschovis, N. Katsarakis, G. Kiriakidis, Thin Solid Films 515 (2006) 551.

DOI: 10.1016/j.tsf.2005.12.295

[4] Soumya Krishnamoorthy and Agis A. Iliadis, Solid-State Electronics 52 (2008) 1710.

[5] G. Srinivasan, N. Gopalakrishnan, Y.S. Yu, R. Kesavamoorthy, J. Kumar, Superlattices and Microstructures 43 (2008) 113.

[6] Journal of Optoelectronics and Advanced Materials 8 (2006) 299-303.

[7] V. Craciun, J. Elders, J. G. E. Gardeniers, J. Geretovsky, I. W. Boyd, Thin Solid Films 259 (1995) 1.

DOI: 10.1016/0040-6090(94)09479-9

[8] J.H. Morgan, D.E. Broide, Can. J. Phys. 60 (1982) 1387.

[9] R. Ayouchi, D. Leinen, F. Martin, M. Gabas, E. Dalchiele, J.R. Ramos-Barrado, Thin Solid Films 426 (2003) 68.

[10] F. Paraguay, J. Morales, W. Estrada, E. Andrade, M.M. Yoshida, Thin Solid Films 366 (2000).

[11] M. Ohyama, H. Kozuka, T. Yoko, Thin Solid Films 306 (1997) 78.
