Study on the Preparation and Properties of Piezoelectric Glass-Ceramic Sr0.5Ba0.5Nb2O6

Shan Jiang; Jing Wen Lv; Tao Zheng

doi:10.4028/www.scientific.net/AMR.669.204

Paper Titles

The Preparation of the Highly Preferred Orientation of AlN Thin Films on ZnO Substrates
p.181

Fabrication of PAN Hollow Fiber Ultrafiltration Membrane with Salt Porogen
p.185

Atmospheric Pressure Synthesis of ZnO Nanotubes by Aqueous Solution Route
p.189

Distribution of Electromagnetic Field and Energy Flux in the Thin Film Solar Cell with Silver Nano-Disk Array
p.194

Study on the Preparation and Properties of Piezoelectric Glass-Ceramic Sr_0.5Ba_0.5Nb₂O₆
p.204

Interaction between Cationic Nano Microsphere and HPAM
p.208

AFM Characterization of PS Prepared in Different Concentration of Hydrofluoric Acid
p.217

Fabrication and Characterization of Ag@C Nanocables with High Aspect Ratios by Hydrothermal Process
p.221

Two-Photon Selective Reflection Spectroscopy of Confined Atomic Vapor at the Interface with a Ferroelectric Layer
p.226

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 669Study on the Preparation and Properties of...

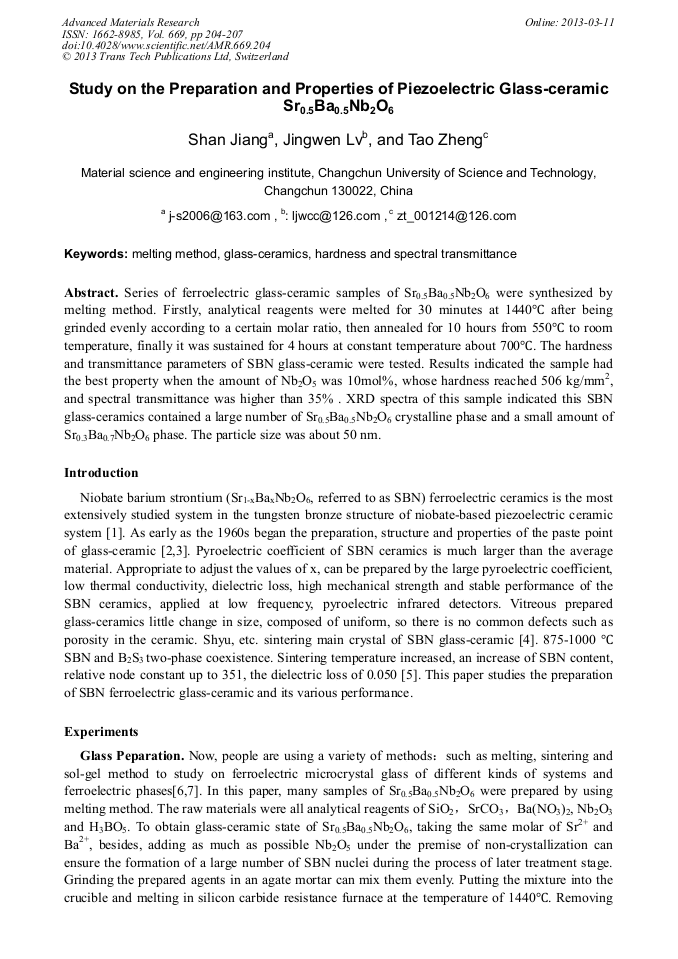

Study on the Preparation and Properties of Piezoelectric Glass-Ceramic Sr_0.5Ba_0.5Nb₂O₆

Abstract:

Series of ferroelectric glass-ceramic samples of Sr0.5Ba0.5Nb2O6 were synthesized by melting method. Firstly, analytical reagents were melted for 30 minutes at 1440°C after being grinded evenly according to a certain molar ratio, then annealed for 10 hours from 550°C to room temperature, finally it was sustained for 4 hours at constant temperature about 700°C. The hardness and transmittance parameters of SBN glass-ceramic were tested. Results indicated the sample had the best property when the amount of Nb2O5 was 10mol%, whose hardness reached 506 kg/mm2, and spectral transmittance was higher than 35% . XRD spectra of this sample indicated this SBN glass-ceramics contained a large number of Sr0.5Ba0.5Nb2O6 crystalline phase and a small amount of Sr0.3Ba0.7Nb2O6 phase. The particle size was about 50 nm.

You might also be interested in these eBooks

Leading Edge of Micro-Nano Science and Technology

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 669)

Pages:

204-207

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.669.204

Citation:

Cite this paper

Online since:

March 2013

Authors:

Shan Jiang, Jing Wen Lv, Tao Zheng

Keywords:

Glass-Ceramics, Hardness, Melting Method, Spectral Transmittance

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J. Ding, J. C. Yu, X. H. Zheng, et al., Synthesis and Properties of Ferroelectric Glass-ceramic Sr0. 5Ba0. 5Nb2O6. Electronic Components & Materials. 25 (2006) 20-23.

Google Scholar

[2] A. Herzog. Microcrystalline BaTiO3 by crystallization from glass. J Am Ceram Soc. 47 (1964) 107.

Google Scholar

[3] N. F. Borrelli, M. M. Layton. Electron-optic properties of transparent ferroelectric glass-ceramic systems. IEEE Trans Electron Device. 16 (1969) 511-514.

DOI: 10.1109/t-ed.1969.16790

Google Scholar

[4] J. J. Shyu, C. H. Chen. Sinterable ferroelectric glass-ceramics containing(Sr, Ba)Nb2O6 crystals. Ceram Int. 29 (2003) 447-453.

DOI: 10.1016/s0272-8842(02)00186-4

Google Scholar

[5] W. J. Zhang, G. H. Chen, Q. K. Sun. Progress in research of new type ferroelectric glass-ceramics. Electronic Components & Materials. 29 (2010) 82-85.

Google Scholar

[6] J. R. Michale, A. W. Clive, J. H. Graham, et al., Microstructures and dielectric properties of ferroelectric glass-ceramics. J. Am Ceram Soc. 79 (1996) 17-26.

Google Scholar

[7] K. Yao, L. Zhang, X. Yao, et al., Preparation and properties of barium titanate glass-ceramics sintered from sol-gel-derived powders. J. Mater Sci. 32(14) (1997) 3659-3665.

DOI: 10.1016/j.ceramint.2003.12.134

Google Scholar
