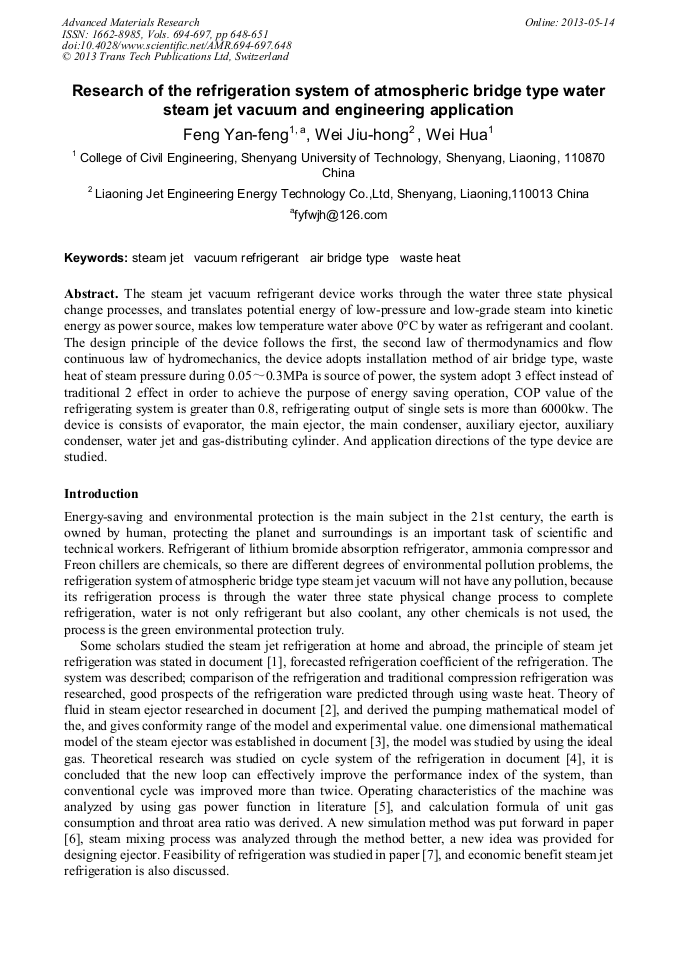

Research of the Refrigeration System of Atmospheric Bridge Type Water Steam Jet Vacuum and Engineering Application

Abstract:

The steam jet vacuum refrigerant device works through the water three state physical change processes, and translates potential energy of low-pressure and low-grade steam into kinetic energy as power source, makes low temperature water above 0°C by water as refrigerant and coolant. The design principle of the device follows the first, the second law of thermodynamics and flow continuous law of hydromechanics, the device adopts installation method of air bridge type, waste heat of steam pressure during 0.05~0.3MPa is source of power,the system adopt 3 effect instead of traditional 2 effect in order to achieve the purpose of energy saving operation, COP value of the refrigerating system is greater than 0.8, refrigerating output of single sets is more than 6000kw. The device is consists of evaporator, the main ejector, the main condenser, auxiliary ejector, auxiliary condenser, water jet and gas-distributing cylinder. And application directions of the type device are studied.

• Periodical: Advanced Materials Research (Volumes 694-697)
• Pages: 648-651
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.694-697.648
• Online since: May 2013
• Authors: Yan Feng Feng, Jiu Hong Wei, Hua Wei
• Keywords: Air Bridge Type, Steam Jet, Vacuum Refrigerant, Waste Heat

References

[1] Munday John T, Bagster David F. New ejector theory applied to steam jet refrigeration. Industrial & Engineering Chemistry, 1977, 16 (4) ：429—436.

DOI: 10.1021/i260064a003

[2] Siming Liu, Guojin Liao. Mathematical model of a new kind of single stage steam ejector suction. Journal of Liaoning Institute of Technology, 2006, 8：246—248

[3] Rongshan Bi, Hongmei Ma, et al. One-dimensional mathematical model analysis of gas injector. Qindao University of science and technology news, 2006, 4：333—336.

[4] Hua Chen, Jianlin Yu, et al. Theoretical analysis on new ejector refrigeration cycle. Journal of Xian jiaotong university, 2005, 39(11):1215-1229.

[5] Liufang Yu. A study of the performance characteristics of lower pressure waste-steam jet refrigeration. Journal of East China Institute of textile science and technology, 1984, 10(1):84-93.

[6] Ian W Eames, All E Ablwaifa. Use of CFD in the prediction of a jet pump Performance. The University of Melbourne, 2004.

[7] S A Shefif, D Y Goswami. A feasibility study of steam jet refrigeration. International Journal of Energy Research, 1998, 22(15)：1323—1336.
