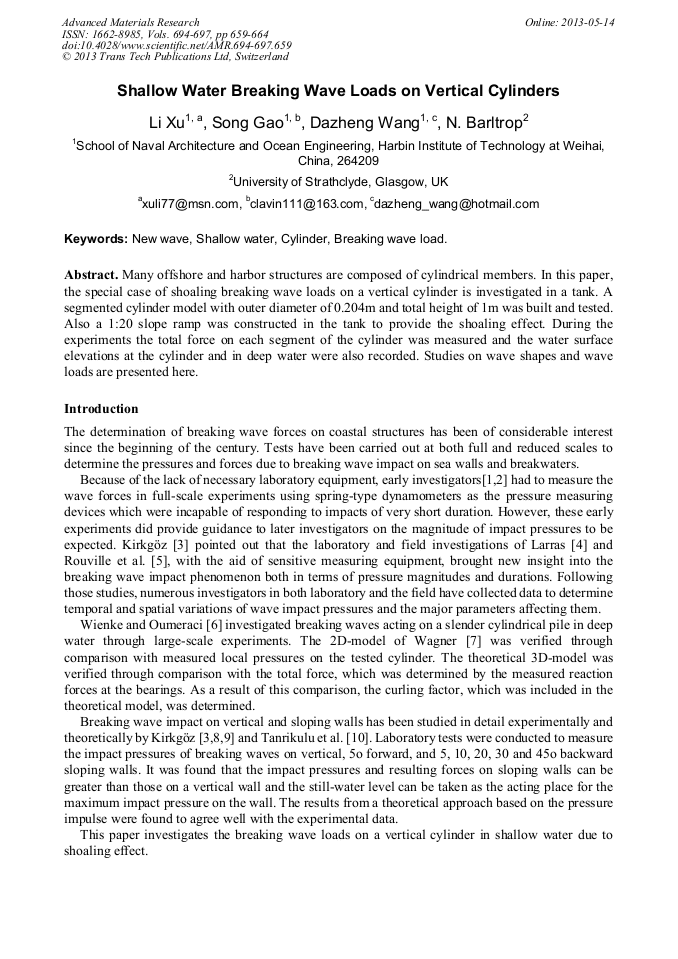

Shallow Water Breaking Wave Loads on Vertical Cylinders

Abstract:

Many offshore and harbor structures are composed of cylindrical members. In this paper, the special case of shoaling breaking wave loads on a vertical cylinder is investigated in a tank. A segmented cylinder model with outer diameter of 0.204m and total height of 1m was built and tested. Also a 1:20 slope ramp was constructed in the tank to provide the shoaling effect. During the experiments the total force on each segment of the cylinder was measured and the water surface elevations at the cylinder and in deep water were also recorded. Studies on wave shapes and wave loads are presented here.

• Periodical: Advanced Materials Research (Volumes 694-697)
• Pages: 659-664
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.694-697.659
• Online since: May 2013
• Authors: Li Xu, Song Gao, Da Zheng Wang, N. Barltrop
• Keywords: Breaking Wave Load, Cylinder, New Wave, Shallow Water

References

[1] Gaillard, D. D. (1905) 'Wave action in relation to engineering structures' Engineering News, LIII(8): 189-194.

[2] Hiroi, I. (1920) 'The force and power of waves' The engineer August. 184-187.

[3] Kirkgöz, M. S. (1995). 'Breaking wave impact on vertical and sloping coastal structures' Ocean Engineering, 22(1): 35-48.

DOI: 10.1016/0029-8018(93)e0006-e

[4] Larras, J. (1937) 'Le deferlement des lames sur les jetees vertical' Annales des Ponts et Chaussees, 107:643-680.

[5] Rouville, M. A., Besson, P., et al. (1938) 'Etat actuel de etudes internationals sur les efforts dus aux lames (Current state of international studies on wave impact)' Annales des Ponts et Chaussees, 108: 5-113 (in French).

[6] Wienke, J. and Oumeraci. H. (2005), 'Breaking wave impact force on a vertical and inclined slenderpile—theoretical and large-scale model investigations.', Coastal Engineering, 52, 435– 462.

DOI: 10.1016/j.coastaleng.2004.12.008

[7] Wagner, H. (1932) 'Uber Stoss- und Gleitvorgange an der Oberflache von Flussigkeiten'. Z. Angew. Math. Mech. 12: 193-215.

[8] Kirkgöz, M. S. (1991). 'Impact pressure of breaking waves on vertical and sloping walls' Ocean Engineering, 18(1-2): 45-59.

DOI: 10.1016/0029-8018(91)90033-m

[9] Kirkgöz, M. S. and Mamak, M. (2004). 'Impulse modelling of wave impact pressures on vertical wall' Ocean Engineering, 31(3-4): 343-352.

DOI: 10.1016/j.oceaneng.2003.07.001

[10] Tanrikulu, A. K., Kirkgöz, M. S., et al. (2002). 'Theoretical and experimental investigation of a vertical wall response to wave impact' Ocean Engineering, 29(7): 769-782.

DOI: 10.1016/s0029-8018(01)00052-x

[11] Xu, L., Barltrop, N. and Okan, B., "Bow impact loading on FPSOs 1 - Experimental Investigation", Ocean Engineering, Vol.35, No.11-12, August 2008, pp.1148-1157, ISSN 0029-8018.

DOI: 10.1016/j.oceaneng.2008.04.013

[12] Morison, J.R., O'Brien, M.P., Johnson, J.W., Schaaf, S.A., 1950. The forces exerted by surface waves on piles. Journal of Petroleum Technology, Petroleum Transactions, AIME 189, 149– 154.

DOI: 10.2118/950149-g

[13] Barltrop, N. and Adams, A., (1991). Dynamics of fixed marine structures.

[14] Bullock, G. N. and Obhrai, C. (2004) 'Wave impact loads at large and full scale', Presented at 'Land-sea margins: wave overtopping and protection along the coastline' ICE Maritime Board Seminar.
