Surface Characteristics of Anodized AZ91D with Potassium Permanganate in Alkaline by Various Time

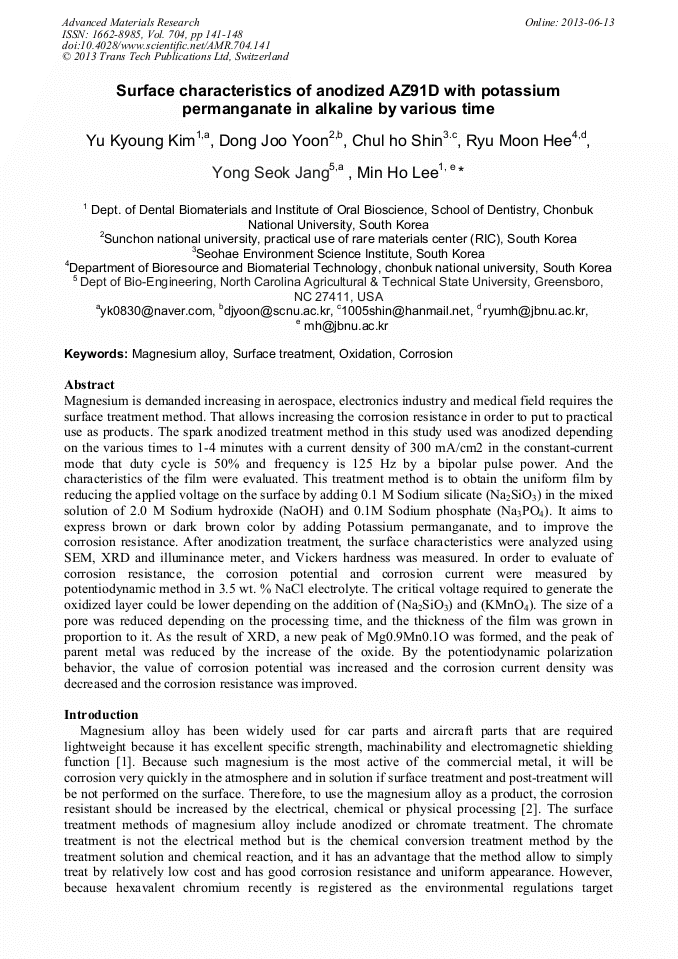

Abstract:

Magnesium is demanded increasing in aerospace, electronics industry and medical field requires the surface treatment method. That allows increasing the corrosion resistance in order to put to practical use as products. The spark anodized treatment method in this study used was anodized depending on the various times to 1-4 minutes with a current density of 300 mA/cm2 in the constant-current mode that duty cycle is 50% and frequency is 125 Hz by a bipolar pulse power. And the characteristics of the film were evaluated. This treatment method is to obtain the uniform film by reducing the applied voltage on the surface by adding 0.1 M Sodium silicate (Na₂SiO₃) in the mixed solution of 2.0 M Sodium hydroxide (NaOH) and 0.1M Sodium phosphate (Na₃PO₄). It aims to express brown or dark brown color by adding Potassium permanganate, and to improve the corrosion resistance. After anodization treatment, the surface characteristics were analyzed using SEM, XRD and illuminance meter, and Vickers hardness was measured. In order to evaluate of corrosion resistance, the corrosion potential and corrosion current were measured by potentiodynamic method in 3.5 wt. % NaCl electrolyte. The critical voltage required to generate the oxidized layer could be lower depending on the addition of (Na₂SiO₃) and (KMnO₄). The size of a pore was reduced depending on the processing time, and the thickness of the film was grown in proportion to it. As the result of XRD, a new peak of Mg0.9Mn0.1O was formed, and the peak of parent metal was reduced by the increase of the oxide. By the potentiodynamic polarization behavior, the value of corrosion potential was increased and the corrosion current density was decreased and the corrosion resistance was improved.

• Periodical: Advanced Materials Research (Volume 704)
• Pages: 141-148
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.704.141
• Online since: June 2013
• Authors: Yu Kyoung Kim, Dong Joo Yoon, Chul Ho Shin, Ryu Moon Hee, Yong Seok Jang, Min Ho Lee
• Keywords: Corrosion, Magnesium Alloy, Oxidation, Surface Treatment

References

[1] J.E. Gray, B. Luan, Protective coatings on magnesium and its alloys — a critical review, Journal of Alloys and Compounds 336 (2002) 88-113.

DOI: 10.1016/s0925-8388(01)01899-0

[2] G.Song, Z.Shi, Characterization of anodized coatings on a magnesium alloy, Magnesium technology in the global age, (2006) 385-395.

[3] M.C. Kang, The Trend and prospect of Magnesium Industry in Korea, in: K.M.T.R. Association (Ed.), 2003, pp.32-35.

[4] S.M. Moon, Y.S. Jung, Treatment of Magnesium, in: Mechanical and Material, 2004, pp.55-64.

[5] C. Blawert, V. Heitmann, W. Dietzel, H. Nykyforchyn, M. Klapkiv, Influence of process parameters on the corrosion properties of electrolytic conversion plasma coated magnesium alloys, Surface & Coatings Technology, 200 (2005) 68- 72.

DOI: 10.1016/j.surfcoat.2005.02.035

[6] A. Kuhn, plasma anodizing of magnesium alloys Metal Finishing, 101 (2003) 44-50.

DOI: 10.1016/s0026-0576(03)90261-3

[7] Z. Shi, G. Song, A. Atrens, Influence of anodising current on the corrosion resistance of anodised AZ91D magnesium alloy, Corrosion Science, 48 (2006) 1939-1959.

DOI: 10.1016/j.corsci.2005.08.004

[8] S.B. Kim, The Surface Treatment Technologies of Magnesium Alloys, Journal of RIST, 24 (2010) 6-11.

[9] I.S. Park, Y.S. Jang, Y.K. Kim, M.H. Lee, J.M. Yoon, T.S. Bae, Surface characteristics of AZ91D alloy anodized with various conditions, Surface and Interface Analysis, 40 (2008) 1270-1277.

DOI: 10.1002/sia.2876

[10] D.Y. Hwang, Y.M. Kim, D.Y. Park, B.Y. Yoo, D.H. Shin, Corrosion resistance of oxide layers formed on AZ91 Mg alloy in KMnO4 electrolyte by plasma electrolytic oxidation, Electrochimica Acta, 54 (2009) 5479-5485.

DOI: 10.1016/j.electacta.2009.04.047

[11] I.J. Hwang, B.U. Lee, Y.G. Ko, D.H. Shin, Corrosion response of annealed oxide film of pure Mg via plasma electrolytic oxidation in an electrolyte containing KMnO4, Journal of Alloys and Compounds, 509, Supplement 1 (2011) S473-S477.

DOI: 10.1016/j.jallcom.2011.01.075

[12] W. Li, L. Zhu, H. Liu, Effects of silicate concentration on anodic films formed on AZ91D magnesium alloy in solution containing silica sol, Surface and Coatings Technology, 201 (2006) 2505-2511.

DOI: 10.1016/j.surfcoat.2006.04.024

[13] Y.L. Lee, Y.R. Chu, W.C. Li, C.S. Lin, Effect of Permanganate Concentration on the Formation and Properties of Phosphate/Permanganate Conversion Coating on AZ31 Magnesium Alloy, Corrosion Science.

DOI: 10.1016/j.corsci.2013.01.014

[14] Y.S. Jang, Y.K. Kim, I.L.S. Park, S.J. Lee, M.H. Lee, J.M. Yoon, T.S. Bae, Film characteristics of anodic oxidized AZ91D magnesium alloy by applied power, Surface and Interface Analysis, 41 (2009) 524-530.

DOI: 10.1002/sia.3058
