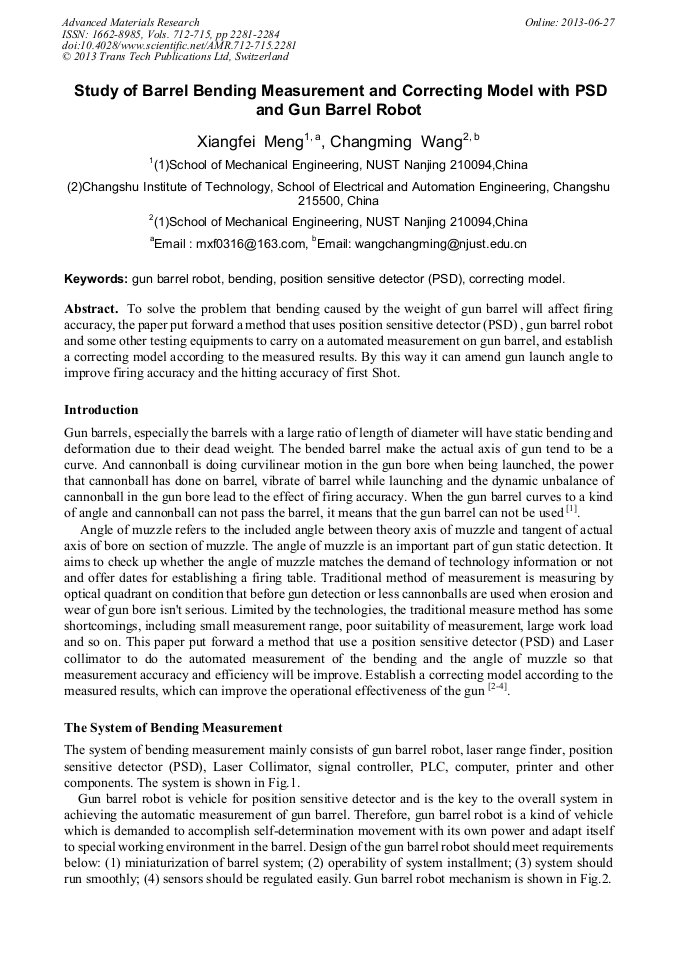

Study of Barrel Bending Measurement and Correcting Model with PSD and Gun Barrel Robot

Abstract:

To solve the problem that bending caused by the weight of gun barrel will affect firing accuracy, the paper put forward a method that uses position sensitive detector (PSD) , gun barrel robot and some other testing equipments to carry on a automated measurement on gun barrel, and establish a correcting model according to the measured results. By this way it can amend gun launch angle to improve firing accuracy and the hitting accuracy of first Shot.

You might also be interested in these eBooks

Advances in Manufacturing Science and Engineering

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 712-715)

Pages:

2281-2284

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.712-715.2281

Citation:

Cite this paper

Online since:

June 2013

Authors:

Xiang Fei Meng, Chang Ming Wang

Keywords:

Bending, Correcting Model, Gun Barrel Robot, Position Sensitive Detector (PSD)
