Design of UHVDC Wall Bushing and its Electric Field Simulation

Abstract:

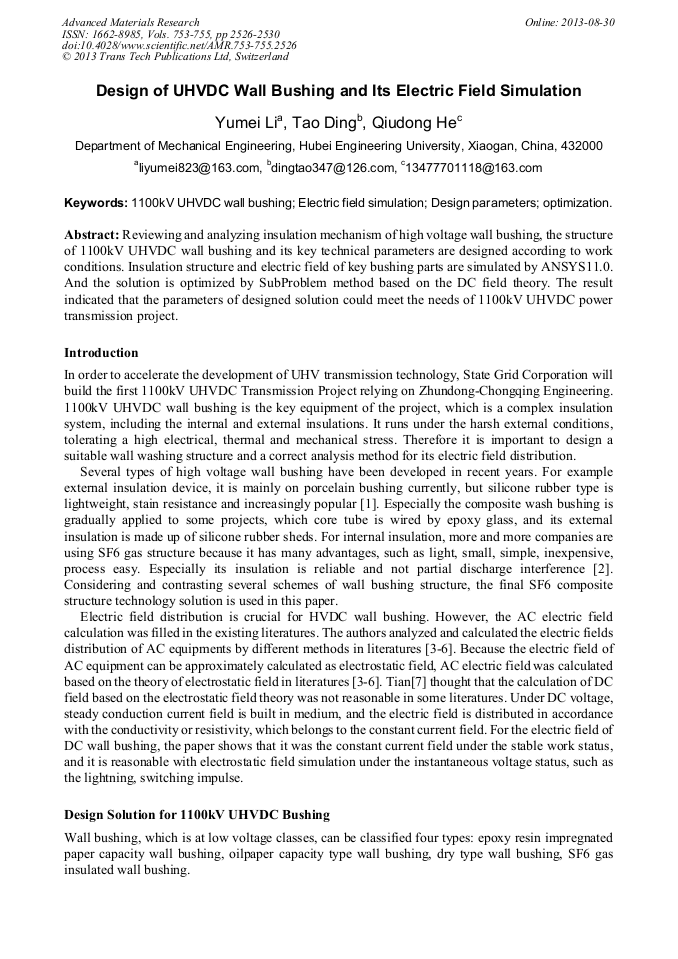

Reviewing and analyzing insulation mechanism of high voltage wall bushing, the structure of 1100kV UHVDC wall bushing and its key technical parameters are designed according to work conditions. Insulation structure and electric field of key bushing parts are simulated by ANSYS11.0. And the solution is optimized by SubProblem method based on the DC field theory. The result indicated that the parameters of designed solution could meet the needs of 1100kV UHVDC power transmission project.
