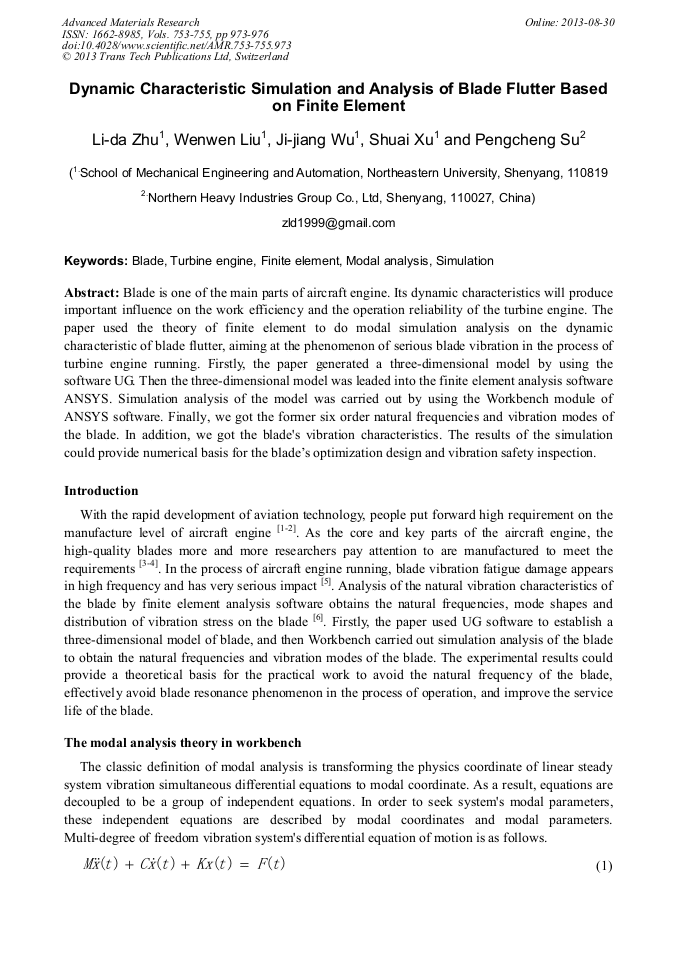

Dynamic Characteristic Simulation and Analysis of Blade Flutter Based on Finite Element

Abstract:

Blade is one of the main parts of aircraft engine. Its dynamic characteristics will produce important influence on the work efficiency and the operation reliability of the turbine engine. The paper used the theory of finite element to do modal simulation analysis on the dynamic characteristic of blade flutter, aiming at the phenomenon of serious blade vibration in the process of turbine engine running. Firstly, the paper generated a three-dimensional model by using the software UG. Then the three-dimensional model was leaded into the finite element analysis software ANSYS. Simulation analysis of the model was carried out by using the Workbench module of ANSYS software. Finally, we got the former six order natural frequencies and vibration modes of the blade. In addition, we got the blade's vibration characteristics. The results of the simulation could provide numerical basis for the blades optimization design and vibration safety inspection.

• Periodical: Advanced Materials Research (Volumes 753-755)
• Pages: 973-976
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.753-755.973
• Online since: August 2013
• Authors: Li Da Zhu, Wen Wen Liu, Ji Jiang Wu, Shuai Xu, Peng Cheng Su
• Keywords: Blade, Finite Element, Modal Analysis, Simulation, Turbine Engine

References

[1] Wu Qiong, Zhang Yidu, Zhang Hongwei. Dynamic Characteristic Analysis and Experiment for Integral Impeller Based on Cyclic Symmetry Analysis Method[J], Chinese Journal of Aeronautics, 2012(25): 804-810.

DOI: 10.1016/s1000-9361(11)60448-2

[2] K. Ahmadi, F. Ismail, Modeling chatter in peripheral milling using the Semi Discretization Method[J], CIRP Journal of Manufacturing Science and Technology, 2012(5): 78-86.

DOI: 10.1016/j.cirpj.2012.03.001

[3] P. Kersting, D. Biermann, Modeling Techniques for the Prediction of Workpiece Deflections in NC Milling, Procedia CIRP2012 (2) 83–86.

DOI: 10.1016/j.procir.2012.05.045

[4] Erhan Budak, L. Taner Tunc, Salih Alan, H. Nevzat O¨zgu¨ven. Prediction of workpiece dynamics and its effects on chatter stability in milling [J]. CIRP Annals-Manufacturing Technology 2012 (61): 339–342.

DOI: 10.1016/j.cirp.2012.03.144

[5] Schubert A, Nestler A, Funke R. Influence of cutting edge geometry and cutting parameters on surface finish in turn-milling of aluminum matrix composites [J], Mater. wis. Werkstofftech, 2010, (41): 795-801.

[6] Liu Huran, Computer aided simulation machining programming in 5-axis NC milling of Impeller leaf[J]. Physics procedia, 2012(25)1457-1462.

DOI: 10.1016/j.phpro.2012.03.262
