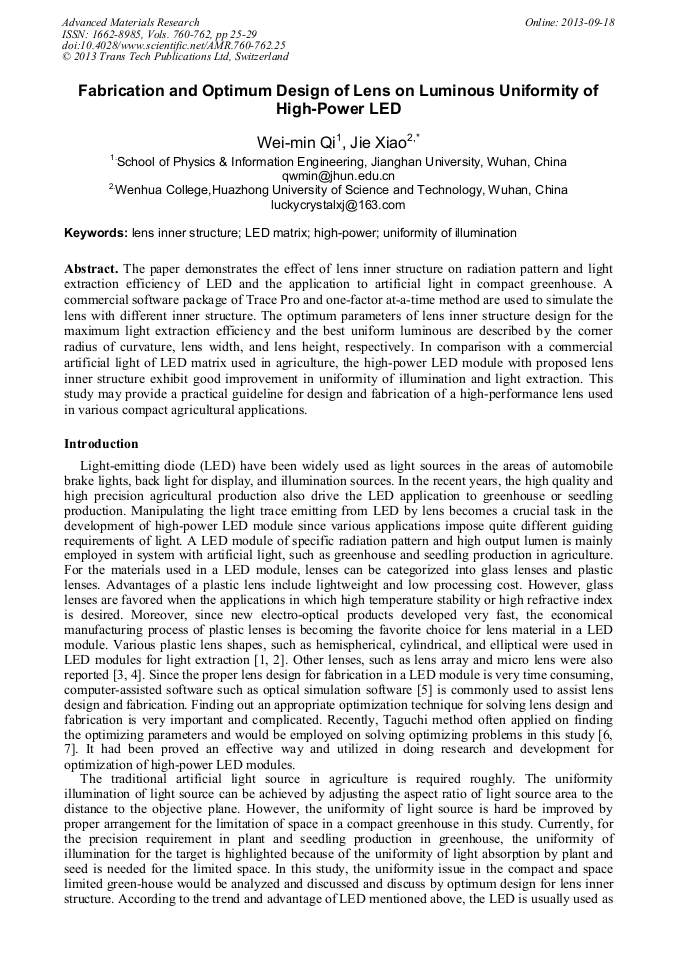

Fabrication and Optimum Design of Lens on Luminous Uniformity of High-Power LED

Abstract:

The paper demonstrates the effect of lens inner structure on radiation pattern and light extraction efficiency of LED and the application to artificial light in compact greenhouse. A commercial software package of Trace Pro and one-factor at-a-time method are used to simulate the lens with different inner structure. The optimum parameters of lens inner structure design for the maximum light extraction efficiency and the best uniform luminous are described by the corner radius of curvature, lens width, and lens height, respectively. In comparison with a commercial artificial light of LED matrix used in agriculture, the high-power LED module with proposed lens inner structure exhibit good improvement in uniformity of illumination and light extraction. This study may provide a practical guideline for design and fabrication of a high-performance lens used in various compact agricultural applications.

• Periodical: Advanced Materials Research (Volumes 760-762)
• Pages: 25-29
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.760-762.25
• Online since: September 2013
• Authors: Wei Min Qi, Jie Xiao
• Keywords: High-Power, LED Matrix, Lens Inner Structure, Uniformity of Illumination

References

[1] H. Yi-Cheng, L. Yu-Kuan, C. Ming-Hung, etc. Failure mechanisms associated with lens shape of high-power LED modules in aging test, IEEE Transactions on Electron Devices, vol. 55, no. 2, Feb 2008, pp.689-694.

DOI: 10.1109/ted.2007.911905

[2] C. Paul C. -P., L. Lun-De, C. Chi-Wei, Design of a novel LED lens cap and optimization of LED placement in a large area direct backlight for LCD-TVs, Proceedings of SPIE - The International Society for Optical Engineering, vol. 6196, (2006).

DOI: 10.1117/12.661894

[3] I. Yusuke; M. Yoshinori, Fabrication of micro lens array by UV-LED lithography, IEEJ Transactions on Sensors and Micromachines, vol. 129, no. 10, 2009, pp.363-364.

DOI: 10.1541/ieejsmas.129.363

[4] Muschaweck, Julius, Randomized micro lens arrays for color mixing, Proceedings of SPIE - The International Society for Optical Engineering, vol. 7954, (2011).

[5] L. Yinong, W. Yiping, A. Bing, Optical simulation analysis of high power LED package structure, Proceedings - International Symposium on Advanced Packaging Materials, 2011, pp.99-103.

[6] B. Mehmet, I. Huseyin, Application of Taguchi method on optimization of testing parameters for erosion of glass fiber reinforced epoxy composite materials, Materials and Design, vol. 46, April 2013, pp.706-712.

DOI: 10.1016/j.matdes.2012.11.024

[7] M. Koilakuntla, M. Sachin, P. Vishal Singh, Application of 'taguchi design and analyses' for 'molding operation optimization', IEEE-International Conference on Advances in Engineering, Science and Management, 2012, pp.85-92.

[8] R. Deepa, S. Arvind, Optimization of multi-element LED source for uniform illumination of plane surface, Optics Express, vol. 19, no. 14, July 2011, pp.639-648.

DOI: 10.1364/oe.19.00a639

[9] B. Bo, H. Qunfeng, X. Zhengyuan, F. Yangyu, The color shift key modulation with non-uniform signaling for visible light communication, 1st IEEE International Conference on Communications in China Workshops, 2012, pp.37-42.

DOI: 10.1109/icccw.2012.6316471

[10] T. T. Nguyen, S. G. Frank, Studies of phosphor concentration and thickness for phosphor-based white light-emitting-diodes, Journal of Lightwave Technology, vol. 26, no. 21, 2008, pp.3556-3559.

DOI: 10.1109/jlt.2008.917087
