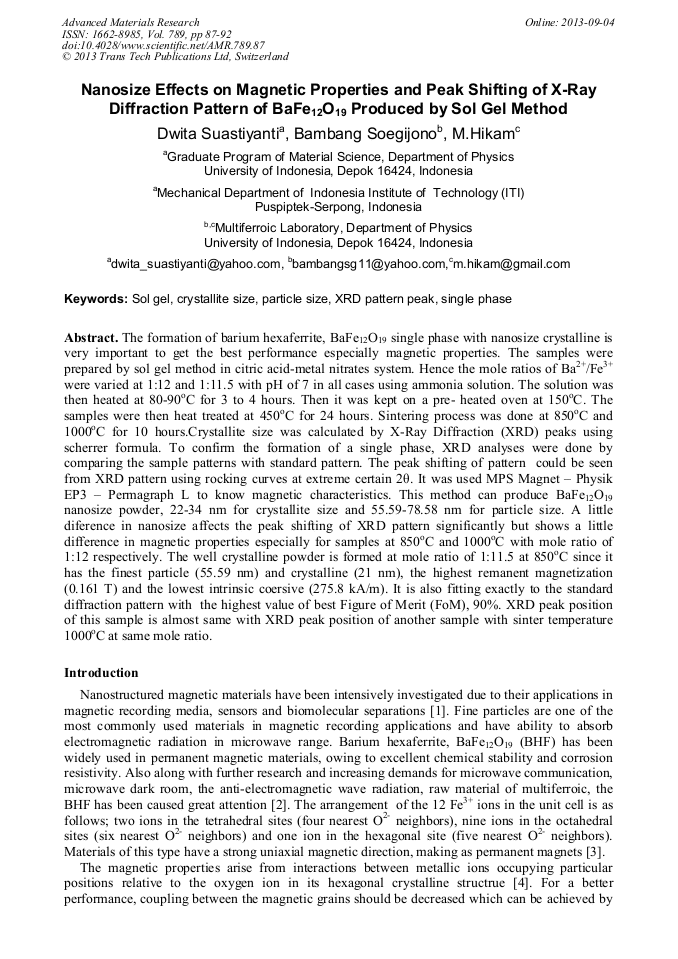

Nanosize Effects on Magnetic Properties and Peak Shifting of X-Ray Diffraction Pattern of BaFe₁₂O₁₉ Produced by Sol Gel Method

Abstract:

The formation of barium hexaferrite, BaFe₁₂O₁₉ single phase with nanosize crystalline is very important to get the best performance especially magnetic properties. The samples were prepared by sol gel method in citric acid-metal nitrates system. Hence the mole ratios of Ba²⁺/Fe³⁺ were varied at 1:12 and 1:11.5 with pH of 7 in all cases using ammonia solution. The solution was then heated at 80-90°C for 3 to 4 hours. Then it was kept on a pre-heated oven at 150°C. The samples were then heat treated at 450°C for 24 hours. Sintering process was done at 850°C and 1000°C for 10 hours.Crystallite size was calculated by X-Ray Diffraction (XRD) peaks using scherrer formula. To confirm the formation of a single phase, XRD analyses were done by comparing the sample patterns with standard pattern. The peak shifting of pattern could be seen from XRD pattern using rocking curves at extreme certain 2θ. It was used MPS Magnet Physik EP3 Permagraph L to know magnetic characteristics. This method can produce BaFe₁₂O₁₉ nanosize powder, 22-34 nm for crystallite size and 55.59-78.58 nm for particle size. A little diference in nanosize affects the peak shifting of XRD pattern significantly but shows a little difference in magnetic properties especially for samples at 850°C and 1000°C with mole ratio of 1:12 respectively. The well crystalline powder is formed at mole ratio of 1:11.5 at 850°C since it has the finest particle (55.59 nm) and crystalline (21 nm), the highest remanent magnetization (0.161 T) and the lowest intrinsic coersive (275.8 kA/m). It is also fitting exactly to the standard diffraction pattern with the highest value of best Figure of Merit (FoM), 90%. XRD peak position of this sample is almost same with XRD peak position of another sample with sinter temperature 1000°C at same mole ratio.

• Periodical: Advanced Materials Research (Volume 789)
• Pages: 87-92
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.789.87
• Online since: September 2013
• Authors: Dwita Suastiyanti, Bambang Soegijono, M. Hikam
• Keywords: Crystallite Size, Particle Size, Single Phase, Sol Gel, XRD Pattern Peak

References

[1] J. Yu,S. Tang, L. Zhai,Y. Shi, Y. Du, Synthesis and magnetic properties of single-crystalline BaFe12O19 nanoparticles, Physica B 404 (2009) 4253-4256.

DOI: 10.1016/j.physb.2009.08.043

[2] L. Junliang, One step synthesis of barium hexaferrite nanopowders via microwave assisted sol-gel auto combustion, Elsevier Science Direct Ceramics International 30 ( 2010) 993-997.

DOI: 10.1016/j.jeurceramsoc.2009.10.019

[3] Q. Mohsen, Factors affecting the synthesis and formation of single-phase barium hexaferrite by a technique of oxalate precursor, American Journal of Applied Sciences 7 (2010) 914 – 921.

DOI: 10.3844/ajassp.2010.914.921

[4] K.S. Martirosyan, E. Galstyan S.M. Hossain Y.J. Wang, D. Litvinov, Barium hexaferrite nanoparticles: synthesis and magnetic properties, Material Science and Engineering B 176 (2011) 8 – 13.

DOI: 10.1016/j.mseb.2010.08.005

[5] H. Sozeri, Simple recipe to synthesize single-domain BaFe12O19 with high saturation magnetization, Journal of Magnetism and Magnetic Materials 321 (2009) 2717-2722.

DOI: 10.1016/j.jmmm.2009.03.075

[6] H.Z. Wang., He. Q, Wen.G. H, Wang. F, Ding.Z. H, Yao. B, Study of formation mechanism of barium hexaferrite by sintering curve, Journal of Alloys and Compounds 504 (2010) 70 – 75.

DOI: 10.1016/j.jallcom.2010.05.050

[7] Y. Li, Q. Wang,H. Yang, Synthesis, characterization and magnetic properties on nanocrystalline BaFe12O19 ferrite, Current Applied Physics 9 (2009) 1375 – 1380.

DOI: 10.1016/j.cap.2009.03.002

[8] U. Topal, A simple synthesis route for high quality BaFe12O19 magnets, Material Science and Engineering B 176 (2011) 1531 – 1536.

DOI: 10.1016/j.mseb.2011.09.019
