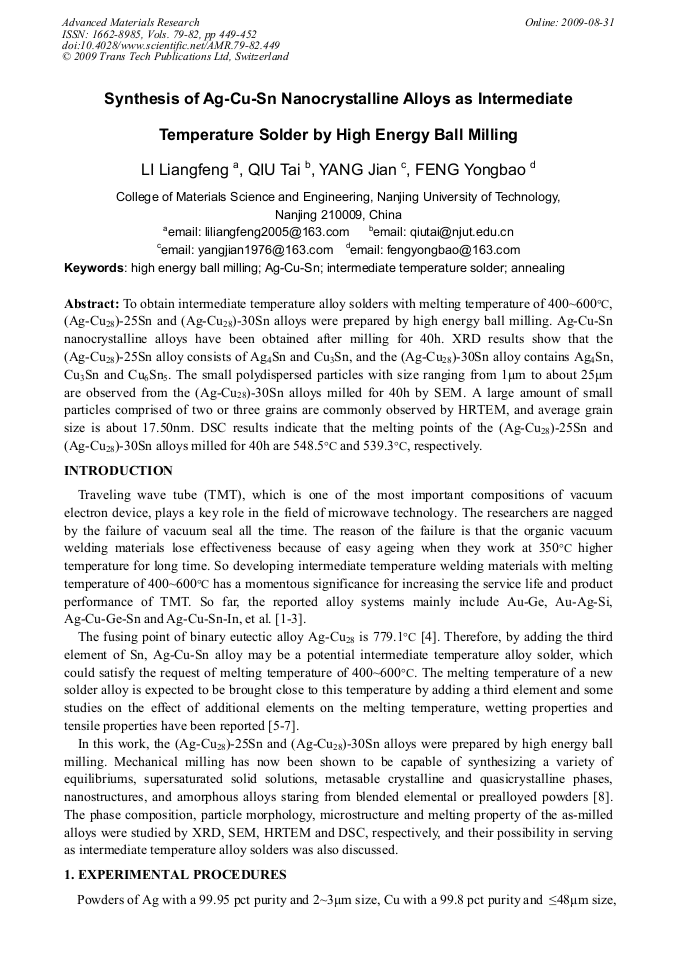

Synthesis of Ag-Cu-Sn Nanocrystalline Alloys as Intermediate Temperature Solder by High Energy Ball Milling

Abstract:

To obtain intermediate temperature alloy solders with melting temperature of 400~600°C, (Ag-Cu28)-25Sn and (Ag-Cu28)-30Sn alloys were prepared by high energy ball milling. Ag-Cu-Sn nanocrystalline alloys have been obtained after milling for 40h. XRD results show that the (Ag-Cu28)-25Sn alloy consists of Ag4Sn and Cu3Sn, and the (Ag-Cu28)-30Sn alloy contains Ag4Sn, Cu3Sn and Cu6Sn5. The small polydispersed particles with size ranging from 1μm to about 25μm are observed from the (Ag-Cu28)-30Sn alloys milled for 40h by SEM. A large amount of small particles comprised of two or three grains are commonly observed by HRTEM, and average grain size is about 17.50nm. DSC results indicate that the melting points of the (Ag-Cu28)-25Sn and (Ag-Cu28)-30Sn alloys milled for 40h are 548.5°C and 539.3°C, respectively.

• Periodical: Advanced Materials Research (Volumes 79-82)
• Pages: 449-452
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.79-82.449
• Online since: August 2009
• Authors: Liang Feng Li, Tai Qiu, Jian Yang, Yong Bao Feng
• Keywords: Ag-Cu-Sn, Annealing, High-Energy Ball Milling (HEM), Intermediate Temperature Solder

References

[1] H. M. Karl. Structure and properties of nonferrous alloys. (VCH Publishers, Inc, New York 1996).

[2] Q. Y Zhang and H. S. Zhuang. Braze Welding Manual. (Machine Industry Press, Beijing 1999).

[3] X. W. Yan, T. Qiu and L. F. Li, et al. R. Mater. Eng., Forum Vol. 37(2008), p.330.

[4] P. Duwez, R.H. Willens and Jr W. Klement. J. Appl. Phys, Forum Vol. 31(1960), p.1136.

[5] Y. Kariya and M. Otsuka, ibid, Forum Vol. 27(1998), p.1229.

[6] U. R. Kattner and W. J. Boettinger, ibid, Forum Vol. 23(1994), p.603.

[7] M. Mccormack and S. Jin, ibid, Forum Vol. 23(1994), p.715.

[8] C. Suryanarayana, Prog. Mater. Sci., Forum Vol. 46(2001), p.1.
