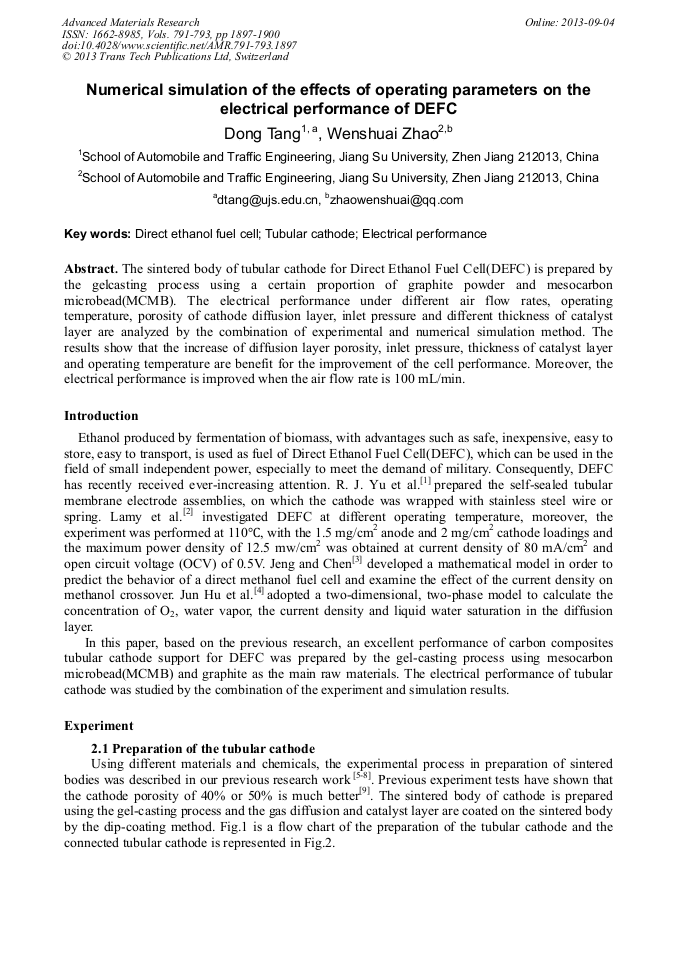

Numerical Simulation of the Effects of Operating Parameters on the Electrical Performance of DEFC

Abstract:

The sintered body of tubular cathode for Direct Ethanol Fuel Cell (DEFC) is prepared by the gelcasting process using a certain proportion of graphite powder and mesocarbon microbead (MCMB). The electrical performance under different air flow rates, operating temperature, porosity of cathode diffusion layer, inlet pressure and different thickness of catalyst layer are analyzed by the combination of experimental and numerical simulation method. The results show that the increase of diffusion layer porosity, inlet pressure, thickness of catalyst layer and operating temperature are benefit for the improvement of the cell performance. Moreover, the electrical performance is improved when the air flow rate is 100 mL/min.

• Periodical: Advanced Materials Research (Volumes 791-793)
• Pages: 1897-1900
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.791-793.1897
• Online since: September 2013
• Authors: Dong Tang, Wen Shuai Zhao
• Keywords: Direct Ethanol Fuel Cell (DEFC), Electrical Performance, Tubular Cathode

References

[1] R. J. Yu, G. Y. Cao, X. Q. Liu, et al. Development of tubular air-breathing direct methanol fuel cell [J]. Chinese Journal of Power Sources, 2005, 29(7): 427-430. In Chinese.

[2] C. Lamy, S. Rousseau, E.M. Belgsir, C. Coutanceau, J.M. Leger, Electrochim. Acta 49 (2004) 3901–3908.

[3] K.T. Jeng, C.W. Chen, J. Power Sources 112 (2002) 367.

[4] J. Hu, B. L. Yi, et al. Two-dimensional, Two-phase model for cathode of proton exchange membrane fuel cell with conventional flow field[J]. Journal of Chemical Industry and Engineering, 2004, (55): 967～973.

[5] D. Tang, Q. H. Hou, H. J. Ni. Structure and performance of MCMB sinters doped with different TiC granularities[J]. Journal of Jiangsu University (Natural Science), 2009, 30(4): 366 ~ 369.

[6] H. J. Ni, X. X. Wang, D. Tang, et al. Preparation and cell performance of special-shaped Ti electrode for direct ethanol full cell [J]. Journal of Jiangsu University(Natural Science Edition), 2010, 31(5): 558-563.

[7] H. J. Ni, C. J. Zhang, X. X. Wang et al. Performance of special-shaped direct methanol fuel cell with sol-gel flux phase[J]. Journal of Fuel Chemistry and Technology, 2010, 38(5) : 604-609.

DOI: 10.1016/s1872-5813(10)60047-3

[8] H. J. Ni, F. Li,D. Tang et a1. Preparation and cell performance of tubular cathode for direct methanol fuel cell[J]. Journal of Jiangsu University: Natural Science Edition, 2009, 30(2) : 129—133.

[9] D. Tang, Y. Zhang, R. X. Duan. Investigation on Generation Performance for Tubular Direct Methanol Fuel Cell[J]. Advanced Materials Research, 2011, 152-153, 874-878.

DOI: 10.4028/www.scientific.net/amr.152-153.874
