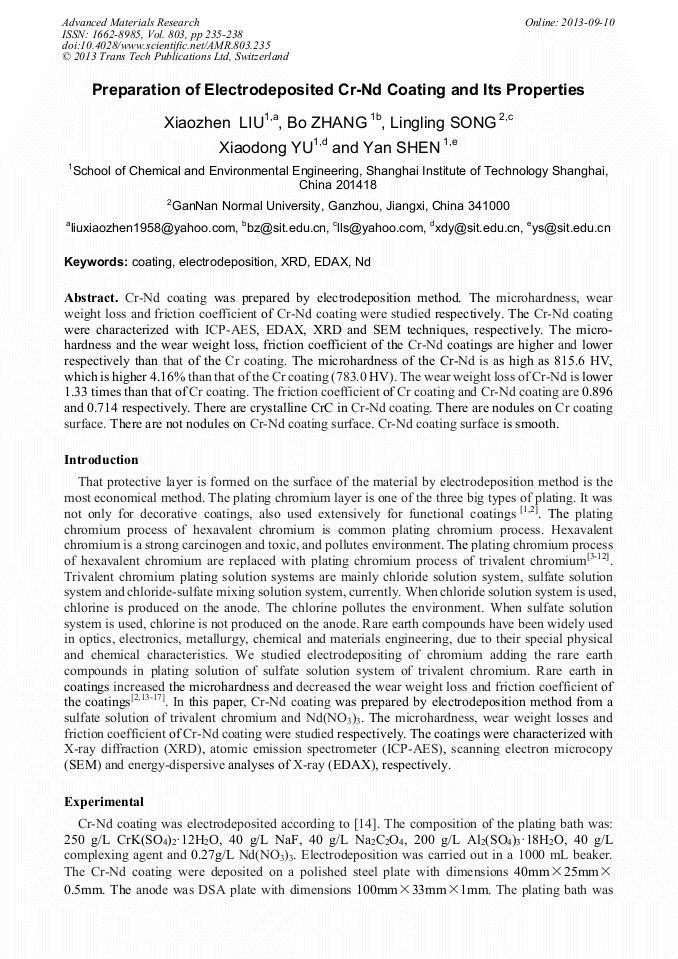

Preparation of Electrodeposited Cr-Nd Coating and its Properties

Abstract:

Cr-Nd coating was prepared by electrodeposition method. The microhardness, wear weight loss and friction coefficient of Cr-Nd coating were studied respectively. The Cr-Nd coating were characterized with ICP-AES, EDAX, XRD and SEM techniques, respectively. The micro-hardness and the wear weight loss, friction coefficient of the Cr-Nd coatings are higher and lower respectively than that of the Cr coating. The microhardness of the Cr-Nd is as high as 815.6 HV, which is higher 4.16% than that of the Cr coating (783.0 HV). The wear weight loss of Cr-Nd is lower 1.33 times than that of Cr coating. The friction coefficient of Cr coating and Cr-Nd coating are 0.896 and 0.714 respectively. There are crystalline CrC in Cr-Nd coating. There are nodules on Cr coating surface. There are not nodules on Cr-Nd coating surface. Cr-Nd coating surface is smooth.

• Periodical: Advanced Materials Research (Volume 803)
• Pages: 235-238
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.803.235
• Online since: September 2013
• Authors: Xiao Zhen Liu, Bo Zhang, Ling Ling Song, Xiao Dong Yu, Yan Shen
• Keywords: Coating, EDAX, Electrodeposition, ND, X-Ray Diffraction (XRD)

References

[1] H. Jamese, J.H. Lindsay. Plating and Surface Finishing Vol. 91 (2004), p.16.

[2] X.Z. Liu, G. Wang, L.L. Song, X. Li, X.Q. Zhu. Spectroscopy and Spectral Analysis Vol. 31 (2011), p.964.

[3] S.K. Ibrahim, A. Watson, D.T. Gawne. Trans IMF Vol. 75 (1997), p.181.

[4] Z.M. Tu, Z.L. Yang. Plating and Surface Finishing Vol. 79(1993), p.78.

[5] Y.B. Song, D.T. Chin. Electrochimica Acta Vol. 48 (2002), p.349.

[6] M.A. Smith, A. Watson, D.H. Vaughan. Tans IMF Vol. 71 (1993), p.106.

[7] K. Ibrahim, A. Watson. Trans IMF Vol. 76(1998), p.156.

[8] S. Duan, H. Li, X. Zhang, et al. Plating and Surface Finishing Vol. 82 (1995), p.84.

[9] G. Hong, K.S. Siow, G. Zhigiang, et al. Plat and Surf Finish Vol. 3(2001), p.69.

[10] A. Baral, R. Engelken. Journal of Electrochemical Society Vol. 152 (2005), p. C504.

[11] Edigaryan A. US 7052592. (2006).

[12] X.Z. Liu, X. Li, L.K. Xu, G. Wang. Electroplating & Pollution Control Vol. 29(2009), p.19.

[13] X.Z. Liu, X. Li, A.B. Yu, W.J. Huang, Journal of Rare Earths Vol. 27 (2009), p.480.

[14] X.Z. Liu, J. Chen. CN 201010022963. 3. (2010).

[15] X.Z. Liu, J. Chen. CN 201110382783. 0. (2011).

[16] X.Z. Liu, J. Chen. ZL200810042131. 0. (2010).

[17] X.Z. Liu, J. Chen. ZL200810042132. 5. (2010).
