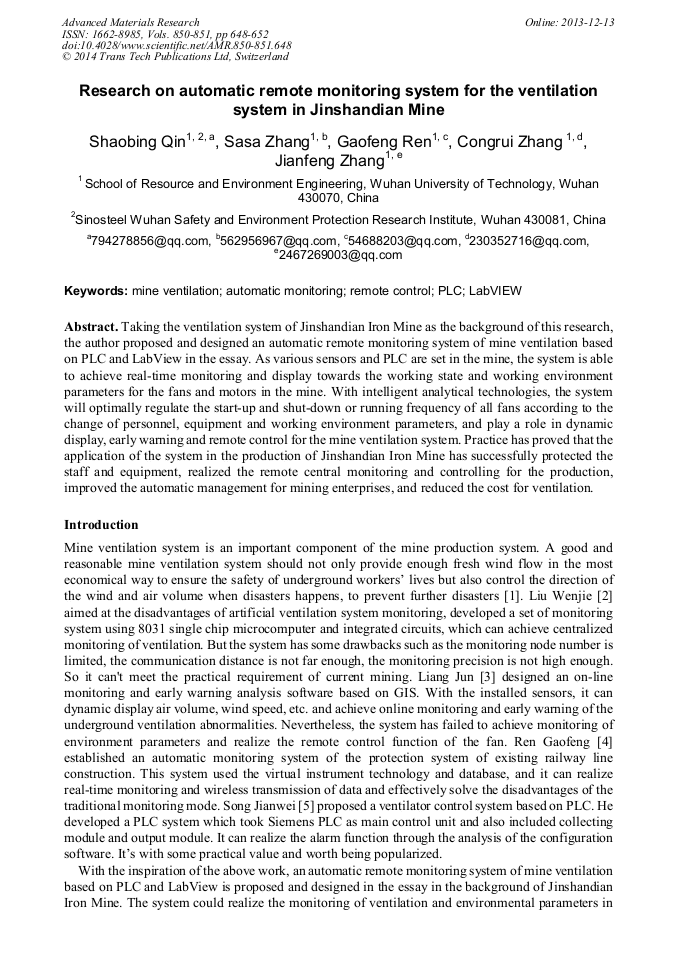

Research on Automatic Remote Monitoring System for the Ventilation System in Jinshandian Mine

Abstract:

Taking the ventilation system of Jinshandian Iron Mine as the background of this research, the author proposed and designed an automatic remote monitoring system of mine ventilation based on PLC and LabView in the essay. As various sensors and PLC are set in the mine, the system is able to achieve real-time monitoring and display towards the working state and working environment parameters for the fans and motors in the mine. With intelligent analytical technologies, the system will optimally regulate the start-up and shut-down or running frequency of all fans according to the change of personnel, equipment and working environment parameters, and play a role in dynamic display, early warning and remote control for the mine ventilation system. Practice has proved that the application of the system in the production of Jinshandian Iron Mine has successfully protected the staff and equipment, realized the remote central monitoring and controlling for the production, improved the automatic management for mining enterprises, and reduced the cost for ventilation.

• Periodical: Advanced Materials Research (Volumes 850-851)
• Pages: 648-652
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.850-851.648
• Online since: December 2013
• Authors: Shao Bing Qin, Sa Sa Zhang, Gao Feng Ren, Cong Rui Zhang, Jian Feng Zhang
• Keywords: Automatic Monitoring, LabVIEW, Mine Ventilation, PLC, Remote Control

References

[1] G.S. Zhang: Ventilation and Safety technology (China University of Mining and Technology Press, China 1997).

[2] W.J. Liu, Q.L. Chen, Z.S. Jia: Mining & Processing Equipment, (2001) No. 8, pp.57-58. (In Chinese).

[3] J. Liang: Energy Technology and Management, (2012) No. 5, pp.139-140. (In Chinese).

[4] G.F. Ren, Z.C. Hu and Y.C. Liu: 3rd National Conference on Engineering Safety and Protection (Wuhan, China, Nov. 16, 2012), (2012) No. 1; pp.817-820.

[5] K.H. Song: Design of Control System for Double Piek TyPe Hydro Turbine Based on PLC (MS., Hebei University of Science and Technology, China 2010), pp.12-31.

[6] X.L. Liu, X.G. Zhang: Insrument Technique and Sensor, (2011) NO. 5, pp.100-102. (In Chinese).

[7] D.W. Bao, W.M. Jin: Computer Development and Applications, (2007), NO. 20, pp.24-26. (In Chinese).

[8] F. Liu: Modern Manufacturing Technology and Equipment, (2012) No. 5, pp.59-61. (In Chinese).

[9] L.H. Li, J.Z. He and C. Cao: Microcomputer Information, (2011) No. 8, pp.57-59. (In Chinese).

[10] L.K. Zhao, Y.J. Wang and H.Y. Que: Mental Mine, (2012) No. 1, pp.136-138. (In Chinese).

[11] X.H. Chen: LabVIEW 8. 20 Master Program Design from Scratch (Beijing, Tsinghua University Press, China 2007), pp.2-15.

[12] Y.W. Wang. L.C. Gu and L. Yang: Mining and Processing Equipment, (2007) No. 3, pp.36-38. (In Chinese).

[13] J.L. Lv, G. f. Ren and Y.J. Wang: Metal Mine, (2012), No. 7, pp.133-135. (In Chinese).
