HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 853Development of Novel Bio-Degradable Electrolyte...

Development of Novel Bio-Degradable Electrolyte Based on Polylactide (PLA) for Lithium Rechargeable Battery

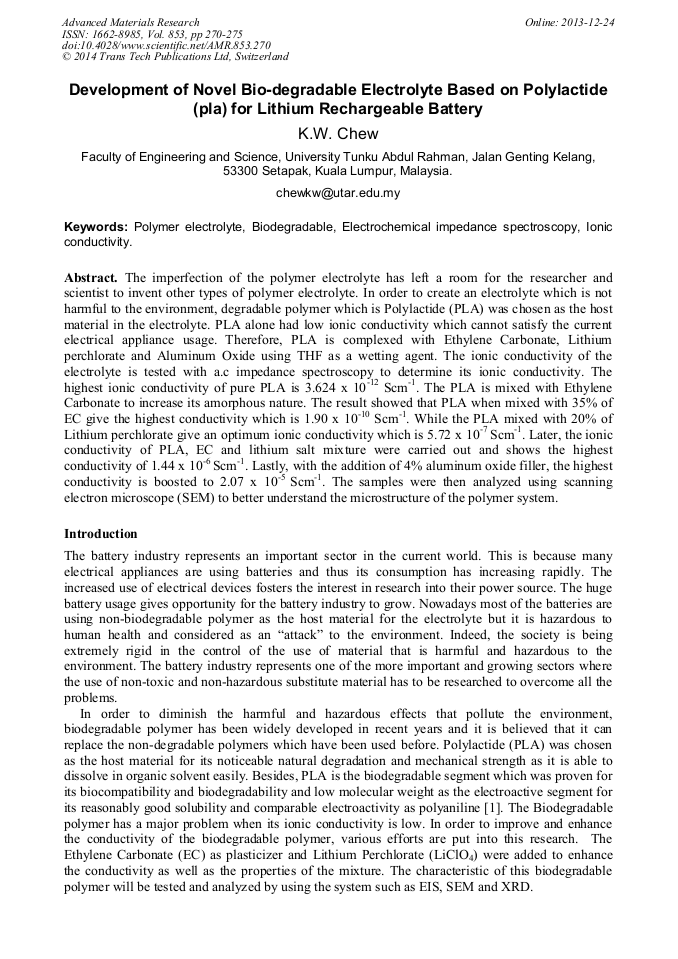

Article Preview

Abstract:

Development of Novel Bio-degradable Electrolyte Based on Polylactide (pla) for Lithium Rechargeable Batteryarmfu� h� r�rment, degradable polymer which is Polylactide (PLA) was chosen as the host material in the electrolyte. PLA alone had low ionic conductivity which cannot satisfy the current electrical appliance usage. Therefore, PLA is complexed with Ethylene Carbonate, Lithium perchlorate and Aluminum Oxide using THF as a wetting agent. The ionic conductivity of the electrolyte is tested with a.c impedance spectroscopy to determine its ionic conductivity. The highest ionic conductivity of pure PLA is 3.624 x 10^-12 Scm^-1. The PLA is mixed with Ethylene Carbonate to increase its amorphous nature. The result showed that PLA when mixed with 35% of EC give the highest conductivity which is 1.90 x 10^-10 Scm^-1. While the PLA mixed with 20% of Lithium perchlorate give an optimum ionic conductivity which is 5.72 x 10^-7Scm^-1. Later, the ionic conductivity of PLA, EC and lithium salt mixture were carried out and shows the highest conductivity of 1.44 x 10^-6Scm^-1. Lastly, with the addition of 4% aluminum oxide filler, the highest conductivity is boosted to 2.07 x 10^-5Scm^-1. The samples were then analyzed using scanning electron microscope (SEM) to better understand the microstructure of the polymer system.

You might also be interested in these eBooks

Materials Science, Machinery and Energy Engineering

Info:

Periodical:

Advanced Materials Research (Volume 853)

Pages:

270-275

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.853.270

Citation:

Cite this paper

Online since:

December 2013

Authors:

K.W. Chew*

Keywords:

Biodegradable, Electrochemical Impedance Spectroscopy (EIS), Ionic Conductivity, Polymer Electrolyte

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] Huang, L., Hu, J., Lang, L., Wang, X., Zhang, P., Jing, X., Wang, X., et al. Synthesis and characterization of electroactive and biodegradable ABA block copolymer of polylactide and aniline pentamer, (2007).

DOI: 10.1016/j.biomaterials.2006.12.007

[2] Pitawala, H. M. J. C., Dissanayake, M. a. K. L., & Seneviratne, V. a, Combined effect of Al2O3 nano-fillers and EC plasticizer on ionic conductivity enhancement in the solid polymer electrolyte (PEO)9LiTf. Solid State Ionics, Vol. 178 (2007).

DOI: 10.1016/j.ssi.2007.04.008

[3] Fu, Y. M. The effect of fumed silica on the interfacial stability in the polymer gel electrolyte. Materials Letters, Vol. 57 (2003), pp.1759-1764.

DOI: 10.1016/s0167-577x(02)01065-0

[4] Ali, A. M. M., Mohamed, N. S., & Arof, A. K. Polyethylene oxide (PEO) ammonium sulfate (NH4)2SO4) complexes and electrochemical cell performance. Journal of Power Sources, Vol. 74 (1998), pp.135-141.

DOI: 10.1016/s0378-7753(98)00045-7

[5] Fonseca, C. P., Jr, F. C., Amaral, F. A., Souza, C. A. Z., & Neves, S. Thermal and Conduction Properties of a PCL-biodegradable, Vol. 2 (2007), pp.52-63.

[6] Ng, B. C., Wong, H. Y., Chew, K. W., & Osman, Z. Development and Characterization of Poly-ε-Caprolactone- Based Polymer Electrolyte for Lithium Rechargeable Battery, Vol. 6 (2011), pp.4355-4364.

[7] Pradhan, D. K., Samantaray, B. K., Choudhary, R. N. P. & Thakur, A. K. Effect of plasticizer on structure–property relationship in composite polymer electrolytes. Journal of Power Sources, Vol. 139 (1-2) (2005), p.384 – 393.

DOI: 10.1016/j.jpowsour.2004.05.050

[8] Singh, P. K., Kim, K. W. & Rhee, H. -W. Electrical, optical and photoelectrochemical studies on a solid PEO-polymer electrolyte doped with low viscosity ionic liquid. Electrochemistry Communications, Vol. 10 (11) (2008), p.1769 – 1772.

DOI: 10.1016/j.elecom.2008.09.016

[9] Baskaran, R., Hattori, T., Kawamura, J., Kuwata, N., & Selvasekarapandian, S. Conductivity and thermal studies of blend polymer electrolytes based on PVAc-PMMA. Solid State Ionics, Vol. 177 (2006), pp.2629-2682.

DOI: 10.1016/j.ssi.2006.04.013

[10] Rajendran, S., Sivakumar, M. & Subadevi, R. Investigations on the effect of various plasticizers in PVA-PMMA solid polymer blend electrolytes. Materials Letters, Vol. 58 (5) (2004), pp.641-649.

DOI: 10.1016/s0167-577x(03)00585-8

[11] Johan, M. R., Onn, H.S., Ibrahim, S., Yassin, S. M., & Tan, Y.H. Effects of Al2O3 nanofiller and EC plasticizer on the ionic conductivity enhancement. Solid State Ionics, Vol. 196 (2011), pp.41-47.

DOI: 10.1016/j.ssi.2011.06.001
