Research on Processing Conditions of CBS Transparent Glass-Ceramics

Yi Min Wang; Hong Bo Zhang; Chun Hui Su; Qin Lei Wei

doi:10.4028/www.scientific.net/AMR.873.733

Paper Titles

The Preparation and Characterization of Spherical Cellulose Aerogels with Core-Shell Structure
p.701

Synthesis of Super Absorbent Resin from Starch/Bentonite
p.708

Dielectrophoresis Response and Manipulation of Silica and its Application to Micro/Nanosensors
p.713

Acoustic Properties of Loose and Consolidated Nonmetal Particles from Waste Printed Circuit Boards
p.723

Research on Processing Conditions of CBS Transparent Glass-Ceramics
p.733

The Development and Application of Si-Based Quantum Dot Resonant Tunneling Diodes
p.737

Magnetically Correlated Schottky Barrier in the La_1.8Ca_1.2Mn₂O₇Double-Layered Perovskite Ceramic
p.744

Preparation and Characterization of the Magnetic Layered Double Hydroxide Fluorescence Composite
p.748

Charge Injection in Regioregular Poly-(3-Hexythiophene) Organic Field-Effect Transistors with Different Metal Electrodes
p.752

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 873Research on Processing Conditions of CBS...

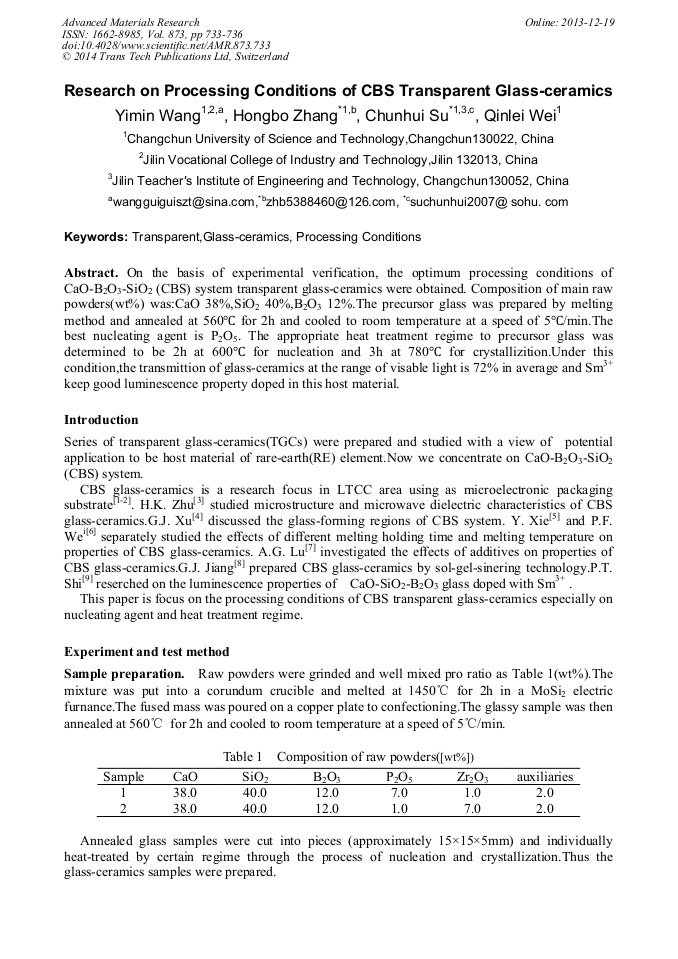

Research on Processing Conditions of CBS Transparent Glass-Ceramics

Abstract:

On the basis of experimental verification, the optimum processing conditions of CaO-B₂O₃-SiO₂ (CBS) system transparent glass-ceramics were obtained. Composition of main raw powders (wt%) was:CaO 38%,SiO₂ 40%,B₂O₃ 12%.The precursor glass was prepared by melting method and annealed at 560°C for 2h and cooled to room temperature at a speed of 5°C/min.The best nucleating agent is P₂O₅. The appropriate heat treatment regime to precursor glass was determined to be 2h at 600°C for nucleation and 3h at 780°C for crystallizition.Under this condition,the transmittion of glass-ceramics at the range of visable light is 72% in average and Sm³⁺ keep good luminescence property doped in this host material.

You might also be interested in these eBooks

The Eighth China National Conference on Functional Materials and Applications

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 873)

Pages:

733-736

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.873.733

Citation:

Cite this paper

Online since:

December 2013

Authors:

Yi Min Wang*, Hong Bo Zhang, Chun Hui Su, Qin Lei Wei

Keywords:

Glass-Ceramics, Processing Conditions, Transparent

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] C.R. Chang J.H. Jean: J Am Ceram Soc Vol. 82 (1999) No. 7, P. 1725.

Google Scholar

[2] C.Y. Long, S.R. zhang, X.H. Zhou and B. Li: Electronic Components and Materials Vol. 30 (2011) No. 7, p.29, in Chinese.

Google Scholar

[3] H.K. Zhu H.Q. Zhou and M. Liu: J Mater Sci: Mater Electron Vol. 20 (2009) No. 11, p.1135.

Google Scholar

[4] G.J. Xu, H.Q. Zhou, H.K. Zhu, D. Chen and M. Liu: Electronic Components and Materials Vol. 28 (2009) No. 5, p.47, in Chinese.

Google Scholar

[5] Y. Xie, P.F. Wei and K.H. Chen: China Ceramics Vol. 46 (2010) No. 5, p.48, in Chinese.

Google Scholar

[6] P.F. Wei, X.L. Yang L.Y. Hao Y.F. Ye and Z.Q. Feng: Electronic Components and Materials Vol. 32 (2013) No. 4, p.6, in Chinese.

Google Scholar

[7] A.G. Lu, M.N. Wang, T. Qiu, H.Q. Zhou and M. Liu: J Chn Ceram Soc Vol. 35 (2007) No. 1, p.60, in Chinese.

Google Scholar

[8] G.J. Jiang, J.Y. Xu, H.R. Zhuang, W.L. Li and Y.K. Jiang : China Space Science Institute space material speciality committee 2011 Academic Conference (China, 2011), p.537, in Chinese.

Google Scholar

[9] P.T. Shi, X.S. Xiong, H.J. Chen, H.Y. Liu, Y.M. Cheng: Chinese Rare Earth Vol. 31 (2010) No. 2, p.1, in Chinese.

Google Scholar
