Surface Modification of SS2205 Duplex Stainless Steel by Plasma Nitriding at Anodic Potential

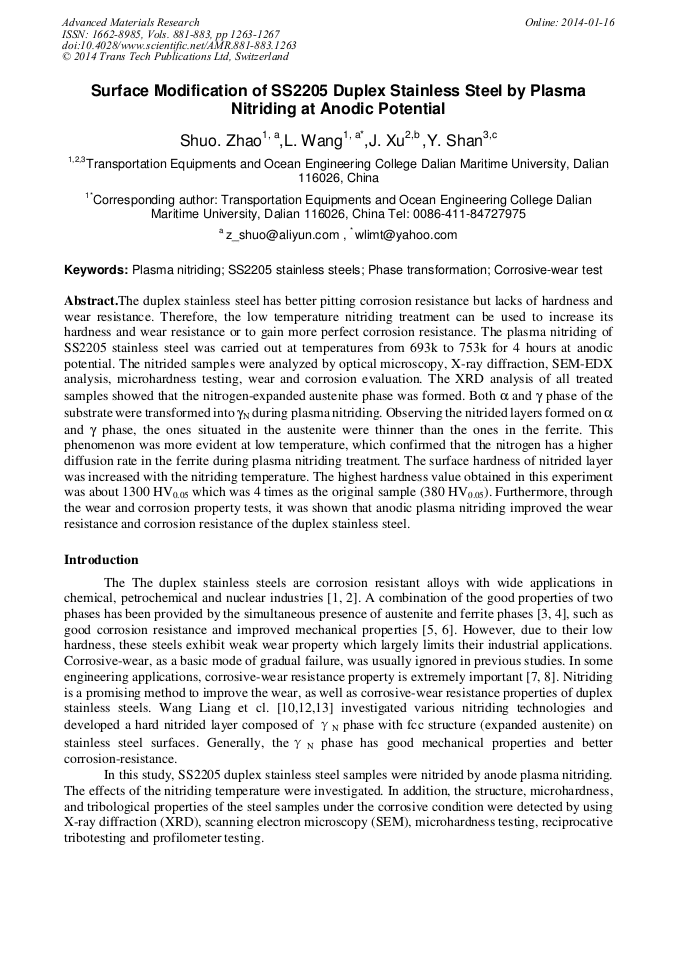

Abstract:

The duplex stainless steel has better pitting corrosion resistance but lacks of hardness and wear resistance. Therefore, the low temperature nitriding treatment can be used to increase its hardness and wear resistance or to gain more perfect corrosion resistance. The plasma nitriding of SS2205 stainless steel was carried out at temperatures from 693k to 753k for 4 hours at anodic potential. The nitrided samples were analyzed by optical microscopy, X-ray diffraction, SEM-EDX analysis, microhardness testing, wear and corrosion evaluation. The XRD analysis of all treated samples showed that the nitrogen-expanded austenite phase was formed. Both α and γ phase of the substrate were transformed into γ_N during plasma nitriding. Observing the nitrided layers formed on α and γ phase, the ones situated in the austenite were thinner than the ones in the ferrite. This phenomenon was more evident at low temperature, which confirmed that the nitrogen has a higher diffusion rate in the ferrite during plasma nitriding treatment. The surface hardness of nitrided layer was increased with the nitriding temperature. The highest hardness value obtained in this experiment was about 1300 HV_0.05 which was 4 times as the original sample (380 HV_0.05). Furthermore, through the wear and corrosion property tests, it was shown that anodic plasma nitriding improved the wear resistance and corrosion resistance of the duplex stainless steel.

• Periodical: Advanced Materials Research (Volumes 881-883)
• Pages: 1263-1267
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.881-883.1263
• Online since: January 2014
• Authors: Shuo Zhao, Liang Wang, Jiu Jun Xu, Y. Shan
• Keywords: Corrosive-Wear Test, Phase Transformation, Plasma Nitriding, SS2205 Stainless Steels

References

[1] Tavares S S M, Da Silva M R, Pardal J M, et al. Journal of Materials Processing Technology, 2006, 180(1): 318-322.

[2] Vijayalakshmi K, Muthupandi V, Jayachitra R. Materials Science and Engineering: A, 2011, 529: 447-451.

[3] Souto R M, Rosca I C M, González S. Corrosion, 2001, 57(4): 300-306.

[4] Kocijan A, Donik Č, Jenko M. Corrosion science, 2007, 49(5): 2083-(2099).

[5] Jiang Z L, Chen X Y, Huang H, et al. Materials Science and Engineering: A, 2003, 363(1): 263-267.

[6] Pohl M, Storz O, Glogowski T. Materials characterization, 2007, 58(1): 65-71.

[7] Siva Rama Krishna D, Sun Y. Surface and Coatings Technology, 2005, 198(1): 447-453.

[8] Dearnley P A, Aldrich-Smith G. Wear, 2004, 256(5): 491-499.

[9] Li C X, Bell T. Corrosion Science, 2004, 46(6): 1527-1547.

[10] Wang L, Ji S, Sun J. Surface and Coatings Technology, 2006, 200(16): 5067-5070.

[11] Yasumaru N. Mater Trans JIM, 1998, 39: 1046-1052.

[12] Bell T, Li C X. Advanced Materials & Processes. 2002, 160(6): 49-51.

[13] M.K. Lei Z.L. Zhang. Plasma source ion nitriding: A new low temperature, low-pressure nitriding approach. Vacuum Society, Vol. 13, No. 6, (1995).

DOI: 10.1116/1.579625
