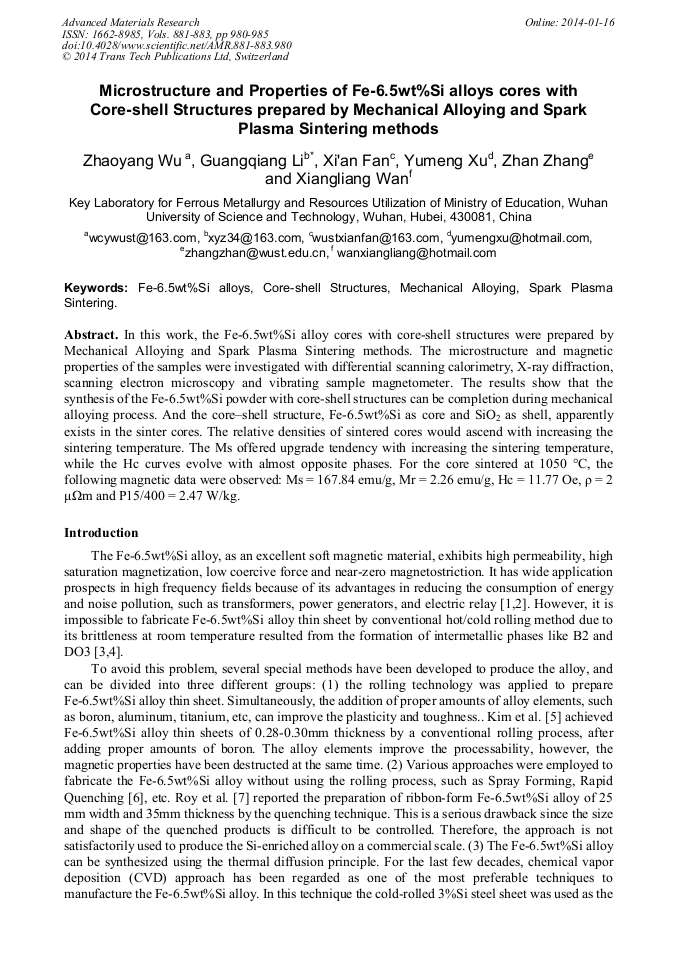

Microstructure and Properties of Fe-6.5wt%Si Alloys Cores with Core-Shell Structures Prepared by Mechanical Alloying and Spark Plasma Sintering Methods

Abstract:

In this work, the Fe-6.5wt%Si alloy cores with core-shell structures were prepared by Mechanical Alloying and Spark Plasma Sintering methods. The microstructure and magnetic properties of the samples were investigated with differential scanning calorimetry, X-ray diffraction, scanning electron microscopy and vibrating sample magnetometer. The results show that the synthesis of the Fe-6.5wt%Si powder with core-shell structures can be completion during mechanical alloying process. And the coreshell structure, Fe-6.5wt%Si as core and SiO₂ as shell, apparently exists in the sinter cores. The relative densities of sintered cores would ascend with increasing the sintering temperature. The Ms offered upgrade tendency with increasing the sintering temperature, while the Hc curves evolve with almost opposite phases. For the core sintered at 1050 °C, the following magnetic data were observed: Ms = 167.84 emu/g, Mr = 2.26 emu/g, Hc = 11.77 Oe, ρ = 2 μΩm and P15/400 = 2.47 W/kg.

• Periodical: Advanced Materials Research (Volumes 881-883)
• Pages: 980-985
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.881-883.980
• Online since: January 2014
• Authors: Zhao Yang Wu, Guang Qiang Li*, Xi'an Fan, Yu Meng Xu, Zhan Zhang, Xiang Liang Wan
• Keywords: Core-Shell Structure, Fe-6.5wt%Si Alloys, Mechanical Alloying, Spark Plasma Sintering (SPS)

References

[1] C. Bolfarini, M.C.A. Silva and A.M. Jorge: J. Magn. Magn. Mater Vol. 320 (2008), p.653.

[2] R. Machado, A.H. Kasama and A.M. Jorge: Mater. Sci. Eng. A Vol. 449-451 (2007), p.854.

[3] I. Ohnuma, S. Abe and S. Shimenouchi: ISIJ Int Vol. 52 (2012), p.540.

[4] K. Raviprasad and K. Chattopadhyay: Acta Metal. Mater Vol. 41 (1993), p.609.

[5] K.N. Kim, L.M. Pan and J.P. Lin: J. Magn. Magn. Mater Vol. 277 (2004), p.331.

[6] Z.Y. Wu, X.A. Fan and G.Q. Li: J. Funct. Mater Vol. 44 (2013), p.1431.

[7] R.K. Roy, M. Ghosh and A. Panda: Trans. Indian Inst. Met Vol. 63 (2010), p.745.

[8] C.Z. Hu, D.M. Zhang and L.M. Zhang: J. Wuhan. Univ. Technol. – Mat. Sci Vol. 20 (2005), p.72.

[9] L.P. Lefebvre, S. Pelletier and C. Gélinas: J. Magn. Magn. Mater Vol. 176 (1997), p.93.

[10] X.G. Liu, D.Y. Geng and Z.D. Zhang: Appl. Phys. Lett Vol. 92 (2008), p.243110.

[11] J.J. Suñol, L. Escoda and R Berlanga: J. Alloys. Compounds Vol. 434 (2007), p.472.

[12] Z. Zhao, C. Chang and A. Makino: Mater. Trans Vol. 50 (2009), p.487.

[13] E Saitoh, H. Miyajima and T. Yamaoka: Nature Vol. 432 (2004), p.203.

[14] X.A. Fan, J.G. Guang and Z.Z. Li: J. Mater. Chem Vol. 20 (2010), p.1676.

[15] D.H. Han, J.P. Wang and Y.B. Feng: J. Appl. Phys Vol. 76 (1994), p.6591.
