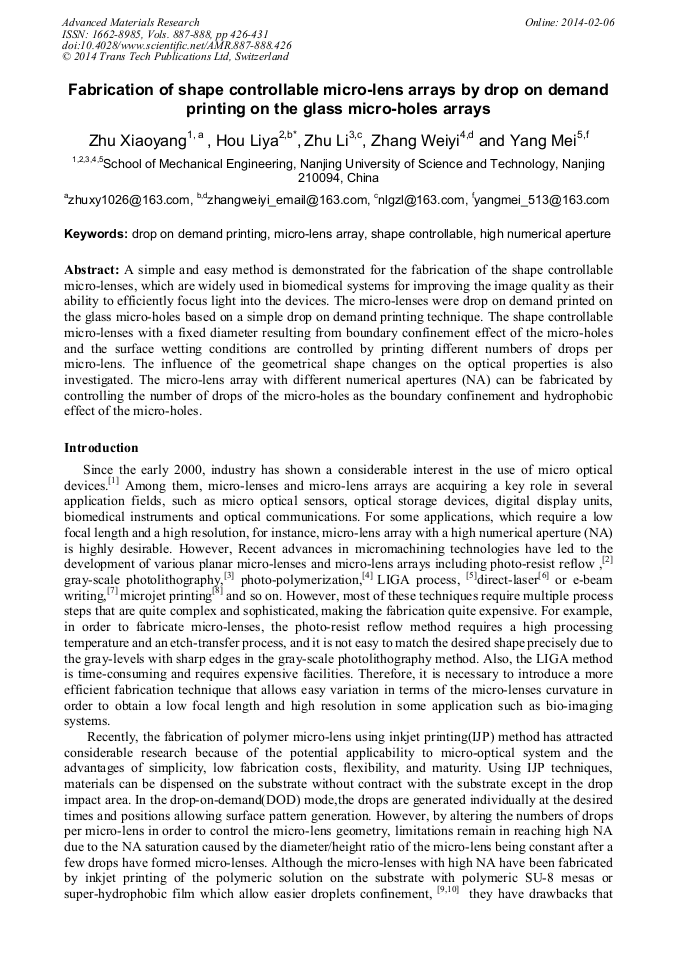

Fabrication of Shape Controllable Micro-Lens Arrays by Drop on Demand Printing on the Glass Micro-Holes Arrays

Abstract:

A simple and easy method is demonstrated for the fabrication of the shape controllable micro-lenses, which are widely used in biomedical systems for improving the image quality as their ability to efficiently focus light into the devices. The micro-lenses were drop on demand printed on the glass micro-holes based on a simple drop on demand printing technique. The shape controllable micro-lenses with a fixed diameter resulting from boundary confinement effect of the micro-holes and the surface wetting conditions are controlled by printing different numbers of drops per micro-lens. The influence of the geometrical shape changes on the optical properties is also investigated. The micro-lens array with different numerical apertures (NA) can be fabricated by controlling the number of drops of the micro-holes as the boundary confinement and hydrophobic effect of the micro-holes.

• Periodical: Advanced Materials Research (Volumes 887-888)
• Pages: 426-431
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.887-888.426
• Online since: February 2014
• Authors: Xiao Yang Zhu, Li Ya Hou*, Li Zhu, Wei Yi Zhang, Mei Yang
• Keywords: Drop on Demand Printing, High Numerical Aperture, Micro-Lens Array, Shape Controllable

References

[1] R. Voelkel, J Duparre, F. Wippermann, et al: Proc. MOC'08, Conf. On Micro-Optics, Brussels (2008).

[2] D. L. Macfarlane, V. Narayan, J. A. Tatum, etal: IEEE Photonics Technol. Lett., 1994, 6, 1112–1114.

[3] G. Schlingloff, H. J. Kiel andA. Schober: Appl. Opt, Vol. 37, (1998), p.1930–(1934).

[4] S. Donati, G. Martini and E. Randone, et al: Vol. 29, (2011), p.661–665.

[5] C. Levallois, V. Bardinal, C. Vergnen egre, et al: Proc. SPIE–Int. Soc. Opt. Eng., 2008, 6992, 69920W.

[6] He. M. Yuan, X. C. Ngo, N. Q, et al: Opt. A: Pure App. Opt. Vol. 6, (2004), pp.94-97.

[7] W. Cheong, L. Yuan, Koudriachov, et al: Opt. Express. Vol. 10, (2002), pp.586-590.

[8] D. L. MacFarlane, V. Narayan, J. A. Tatum, et al: IEEE Photon. Technol. Lett. Vol. 6, (1994), p.1112–1114.

[9] J. Y. Kim, C. M. Olmos, et al: PFEIFFER K, VOIGT A, et al：Journal of Materials Chemistry C. Vol. 22, (2012), pp.3053-3058.

[10] J. Xia, D. Qu, H. N. Yang, et al: Displays. Vol. 31 (2010), pp.186-190.

[11] W. Zhang, L. Hou: Science & Technology Review, Vol. 23, (2005), pp.4-9.

[12] W. Zhang, L. Hou: Science & Technology Review, Vol. 24, (2006), pp.41-47.
