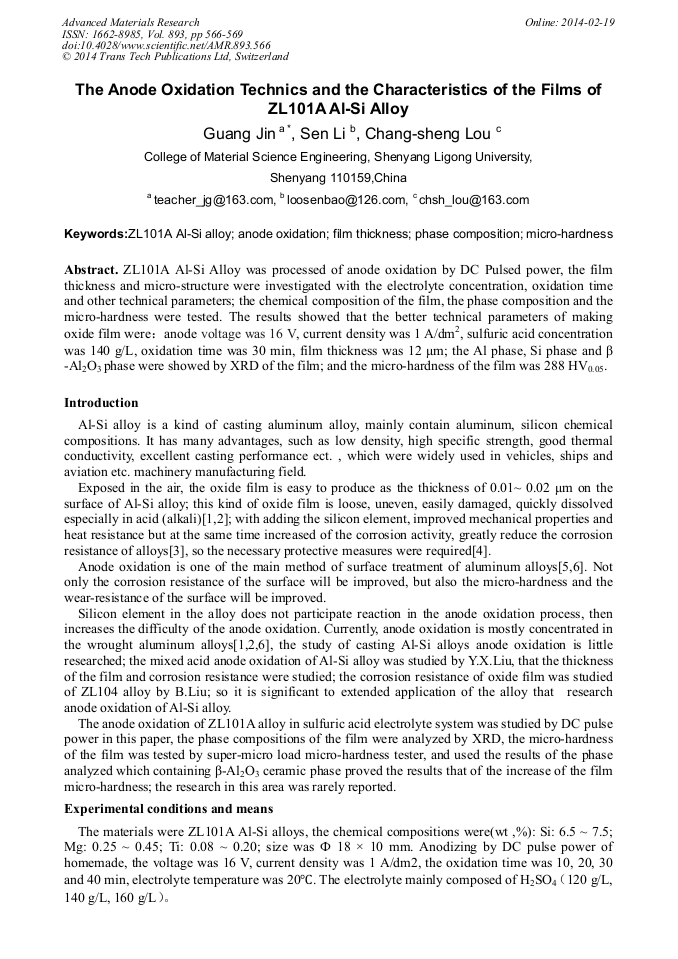

The Anode Oxidation Technics and the Characteristics of the Films of ZL101A Al-Si Alloy

Abstract:

ZL101A Al-Si Alloy was processed of anode oxidation by DC Pulsed power, the film thickness and micro-structure were investigated with the electrolyte concentration, oxidation time and other technical parameters; the chemical composition of the film, the phase composition and the micro-hardness were tested. The results showed that the better technical parameters of making oxide film were:anode voltage was 16 V, current density was 1 A/dm², sulfuric acid concentration was 140 g/L, oxidation time was 30 min, film thickness was 12 μm; the Al phase, Si phase and β-Al₂O₃ phase were showed by XRD of the film; and the micro-hardness of the film was 288 HV_0.05.

• Periodical: Advanced Materials Research (Volume 893)
• Pages: 566-569
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.893.566
• Online since: February 2014
• Authors: Guang Jin*, Sen Li, Chang Sheng Lou
• Keywords: Anode Oxidation, Film Thickness, Microhardness, Phase Composition, ZL101A Al-Si Alloy

References

[1] M. Wu, Y. Sun: J. Surface Technology. 32(2003)13-15.

[2] N.S. Huang, Y.H. Ni, J.X. Yang and Y.B. Liu: J. Light Industry Machinery. 28(2010) 4-7.

[3] Tsangaraki-Kaplanoglou I，Theohari S，Dimogerontakis Th，et al．: J. Surface and Coarings Technology. 200(2006)2634-2641.

DOI: 10.1016/j.surfcoat.2005.07.065

[4] J.J. Ren，Y. Zuo: J. Surface and Coatings Technology. 182(2004)237-241.

[5] Li X，Nie X，Wang L，et al．: J. Surface and Coatings Technology. 200(2005)1994-(2000).

[6] Y.P. Qian, H. Chen and X. li: J. Surface Technology. 29(2000) 12-14.

[7] Y.X. Liu, Q.M. Zhu: J. Corrodion and Protection. 31(2010) 55-59.

[8] B. Liu, M.Z. Yi, X. Xiong, et al．: J. Materials Protection. 33(2000) 23-24.

[9] Charles A Grubbs: J. Metal Finishing. 105(2007) 397-412.
