Growth and Characterization of ZnS Films by Chemical Bath Deposition

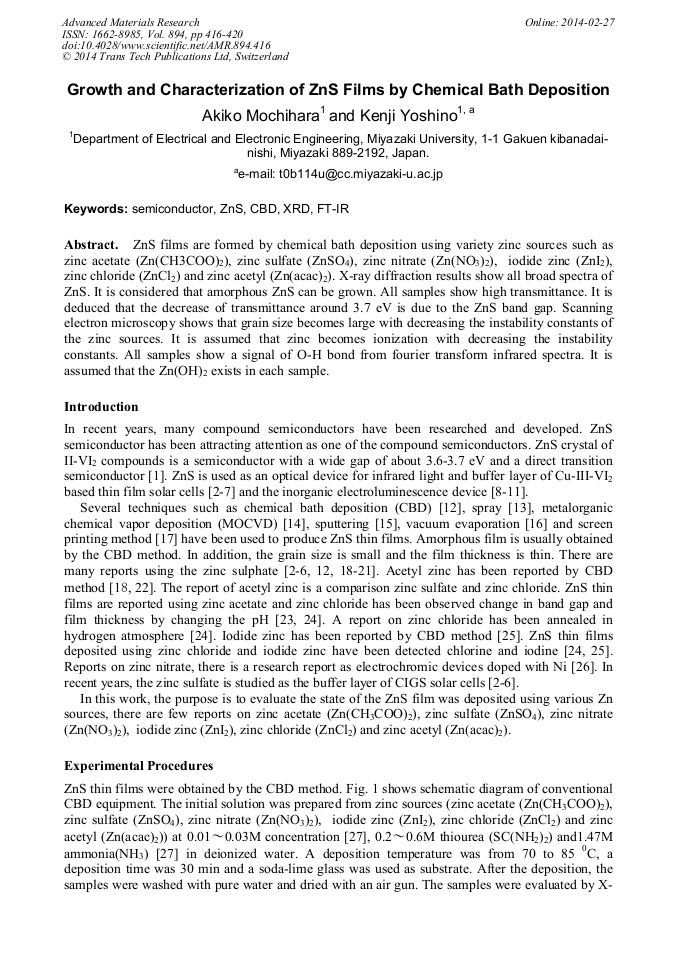

Article Preview

Abstract:

ZnS films are formed by chemical bath deposition using variety zinc sources such as zinc acetate (Zn (CH3COO)₂), zinc sulfate (ZnSO₄), zinc nitrate (Zn (NO₃)₂), iodide zinc (ZnI₂), zinc chloride (ZnCl₂) and zinc acetyl (Zn (acac)₂). X-ray diffraction results show all broad spectra of ZnS. It is considered that amorphous ZnS can be grown. All samples show high transmittance. It is deduced that the decrease of transmittance around 3.7 eV is due to the ZnS band gap. Scanning electron microscopy shows that grain size becomes large with decreasing the instability constants of the zinc sources. It is assumed that zinc becomes ionization with decreasing the instability constants. All samples show a signal of O-H bond from fourier transform infrared spectra. It is assumed that the Zn (OH)₂ exists in each sample.

You might also be interested in these eBooks

Advanced Materials Research IV

Info:

Periodical:

Advanced Materials Research (Volume 894)

Pages:

416-420

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.894.416

Citation:

Cite this paper

Online since:

February 2014

Authors:

Akiko Mochihara, Kenji Yoshino

Keywords:

CBD, FT-IR, Semiconductor, XRD, ZnS

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] B. Elidrissi, M. Addou, M. Regragui, A. Bougrine, A. Kachouane, J. C. Bernede, Mater. Chem. Phys. 68, 175 (2001).

[2] T. Nakada, M. Mizutani, Jpn. J. Appl. Phys. 41, L165 (2002).

[3] R. N. Bhattacharya, M. A. Contreras, G. Teeter, Jpn. J. Appl. Phys. 43, L1475 (2004).

[4] A. Ennaoui, Can. J. Phys. 77, 723 (1999).

[5] A. Ennaoui, S. Siebentritt, M. C. Lux-Steiner, W. Riedl, F. Karg, Sol. Energy Mater. Sol. Cells 67, 31 (2001).

[6] A. Ennaoui, W. Eisele, M. C. Lux-Steiner, T. P. Niesen, F. Karg, Thin Solid Films 431–432, 335 (2003).

DOI: 10.1016/s0040-6090(03)00155-x

[7] K. Kushiya, M. Ohshita, I. Hara, Y. Tanaka, B. Sang, Y. Nagoya, M. Tachiyuki, D. Yamase, Sol. Energy Mater. Sol. Cells 75, 171 (2003).

DOI: 10.1016/s0927-0248(02)00144-7

[8] S. D. Han, I. Singh, D. Singh, Y. H. Lee, G. Sharma, C. H. Han, J. Lum. 115, 97 (2005).

[9] .

[9] P. K. Shon, J.H. Shin, G. C. Kim, S. N. Lee, J. Lum. 132, 1764 (2012).

[10] D. Adachi, K. Takei, T. Toyama, H. Okamoto, Appl. Surf. Sci. 254, 299 (2007).

[11] G. Sharma, S. D. Han, J. D. Kim, S. P. Khatkar, Y. W. Rhee, Mater. Sci. Eng. B 131, 271 (2006).

[12] M. Bar, A. Ennaoui, J. Klaer, T. Kropp, R. Sáez-Araoz, N. Allsop, I. Lauermann, H. -W. Schock and M. C. L. Steiner, J. Appl. Phys. 99, 123503 (2006).

DOI: 10.1063/1.2202694

[13] H. H. Afifi, S. A. Mahmoud, A. Ashour, Thin Solid Films 263, 248 (1995).

[14] T. Maruyama, T. Kawaguchi, Thin Solid Films 188, 323 (1990).

[15] P.J. Dean, A. D. Pitt, M.S. Skolnick, P. J. Wright, B. Cockayne, J. Crystal Growth 59, 301 (1982).

[16] J. C. Sanchez-Lopez, E. P. Reddy, T. C. Rojas, M. J. Sayagues, A. Justo, A. Femandez, Nano Struc. Mater. 12, 459 (1999).

[17] M. E. Rincon, M.W. Martınez, M. Miranda-Hernandez, Sol. Energy Mater. Sol. Cells 77, 25 (2003).

[18] K. Ernits, K. Muska, M. Danilson, J. Raudoja, T. Varema, O. Volobujeva, M. Altosaar, Advan Mater. Sci. Eng. 2009, 5 (2009).

DOI: 10.1155/2009/372708

[19] N. Kamoun Allouche, T. Ben Nasr, N. Turki Kamoun, C. Guasch, Mater. Chem. Phys. 123, 620 (2010).

DOI: 10.1016/j.matchemphys.2010.05.026

[20] U. Gangopadhyay, K. Kim, D. Mangalaraj, J. Yi Appl. Surf. Sci. 230, 364 (2004).

[21] A. Pudov, J. Sites, T Nakada, Jpn. J. Appl. Phys. 41, L672 (2002).

[22] R. Vacassy, S. M. Scholz, J. Dutta, C. J. G. Plummer, R. Houriet, H. Hofmann, J. Am. Ceram. Soc. 81, 2699 (1998).

[23] A. U. Ubale, V. S. Sangawar, D. K. Kulkarni, Bull. Mater. Sci. 30, 147 (2007).

[24] J. Vidal, O. Vigil, O. de Melo, N. Loapez, O. Zelaya Angel, Mater. Chem. Phys. 61, 139 (1999).

[25] T. Yamaguchia, Y. Yamamoto. T. Tanaka, A. Yoshida, Thin Solid Films 343-344, 516 (1999).

[26] C. M. Huang, L. C. Chen, G. T. Pan, T. C. K. Yang, W. S. Chang, K. W. Cheng, Mater. Chem. Phys. 117, 156 (2009).

[27] K. Kushiya, T. Nii, I. Sugiyama, Y. Sato, Y. Inamori, H. Takeshita, Jpn. J. Appl. Phys. 35, 4383 (1996).

[28] N. Kamoun, T. Ben Nasr, N. Turki Kamoun, C. Guasch, Mater. Chem. Phys. 123, 620 (2010).

DOI: 10.1016/j.matchemphys.2010.05.026

[29] R. N. Bhattacharya, K. Ramanathan, L. Gedvilas, B. Keyes, J. Phys. Chem. Solids 66, 1862 (2005).

[30] R. Vacassy, S. M. Scholz, J Dutta, C. J. G. Plummer, R. Houriet, H. Hofmann, J. Am. Ceram. Soc., 81, 2699 (1998).
