Preparation of Porous Alumina Template for Nanostructure Fabrication

Kok Kuan Ying; Inn Khuan Ng; Nur Ubaidah Saidin; Suhaila Hani Illias

doi:10.4028/www.scientific.net/AMR.895.21

Paper Titles

Structural and Optical Properties of Nickel-Doped Zinc Oxide Thin Film on Nickel Seed Layer Deposited by RF Magnetron Sputtering Technique
p.3

Properties of Calix4-Lead(Pb) Films Using Langmuir-Blodgett (LB) Technique as an Application of Ion Sensor
p.8

Effect of Substrate Temperature on Structural and Morphological Properties of Indium Tin Oxide Nanocolumns Using RF Magnetron Sputtering
p.12

Effect of Thickness and Annealing Temperature on the Properties of PZT Films at Morphotropic Phase Boundary Composition Prepared by Sol-Gel Spin-On Technique
p.17

Preparation of Porous Alumina Template for Nanostructure Fabrication
p.21

Characterization of Al₂O₃ Thin Films Deposited by PLD
p.25

Characteristics of Cuprous Oxide Thin Films Deposited on Glass and Polyethylene Terephthalate Substrates
p.29

Crystallographic Parameter and Optical Absorption Measurement of CuInSe₂ Thin Films for Solar Cells
p.35

Plasma Pre-Treatment of Polyethylene Terephthalate Substrate Influence on the Properties of ZnO Thin Film
p.41

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 895Preparation of Porous Alumina Template for...

Preparation of Porous Alumina Template for Nanostructure Fabrication

Abstract:

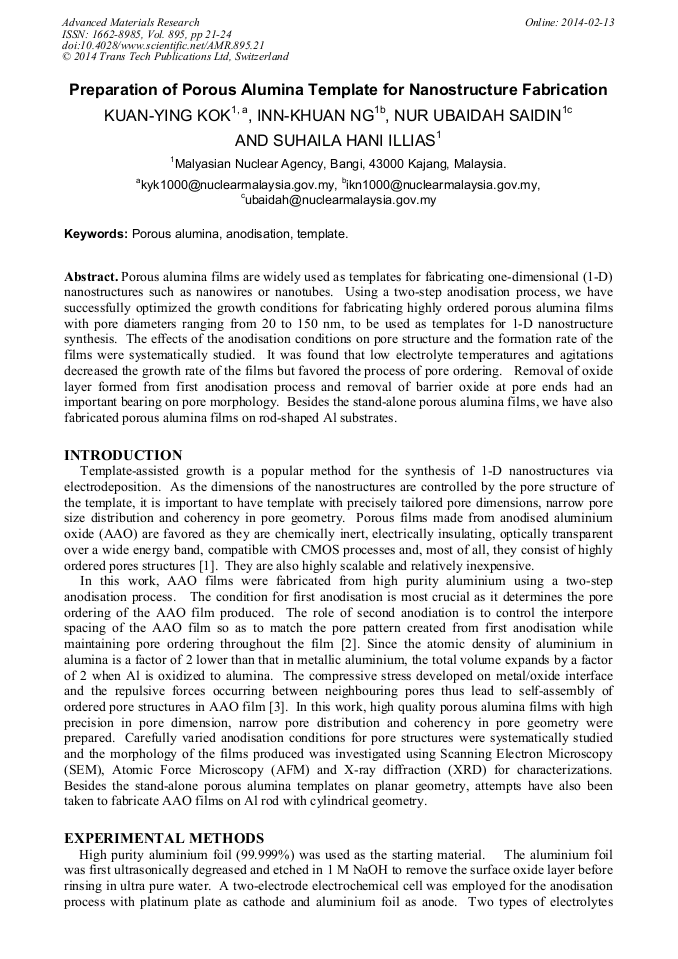

Porous alumina films are widely used as templates for fabricating one-dimensional (1-D) nanostructures such as nanowires or nanotubes. Using a two-step anodisation process, we have successfully optimized the growth conditions for fabricating highly ordered porous alumina films with pore diameters ranging from 20 to 150 nm, to be used as templates for 1-D nanostructure synthesis. The effects of the anodisation conditions on pore structure and the formation rate of the films were systematically studied. It was found that low electrolyte temperatures and agitations decreased the growth rate of the films but favored the process of pore ordering. Removal of oxide layer formed from first anodisation process and removal of barrier oxide at pore ends had an important bearing on pore morphology. Besides the stand-alone porous alumina films, we have also fabricated porous alumina films on rod-shaped Al substrates.
