Characteristics of Cuprous Oxide Thin Films Deposited on Glass and Polyethylene Terephthalate Substrates

Abstract:

In this work, cuprous oxide (Cu₂O) thin films grown on glass and polyethylene terephthalate (PET) substrates using reactive radio frequency magnetron sputtering system were investigated. Copper target with purity of 99.99% were used while high purity argon-oxygen gases were utilized as sputtering gases. Structural, morphological, and optical properties of the films were investigated by X-ray diffraction (XRD), atomic force microscopy and ultra-violet visible spectrophotometer. From the XRD results, only one single diffraction peak corresponding to cubic Cu₂O (111) crystal structure were observed for both substrates. The surface morphologies of the samples were in a form of pillar-like. Root mean square surface roughness for Cu₂O on glass and PET substrates were 3.37 nm and 3.20 nm, respectively. The films were highly transparent for wavelength above 600 nm. The Cu₂O films have direct band gap values of around 2.56 eV as determined by Taucs method.

You might also be interested in these eBooks

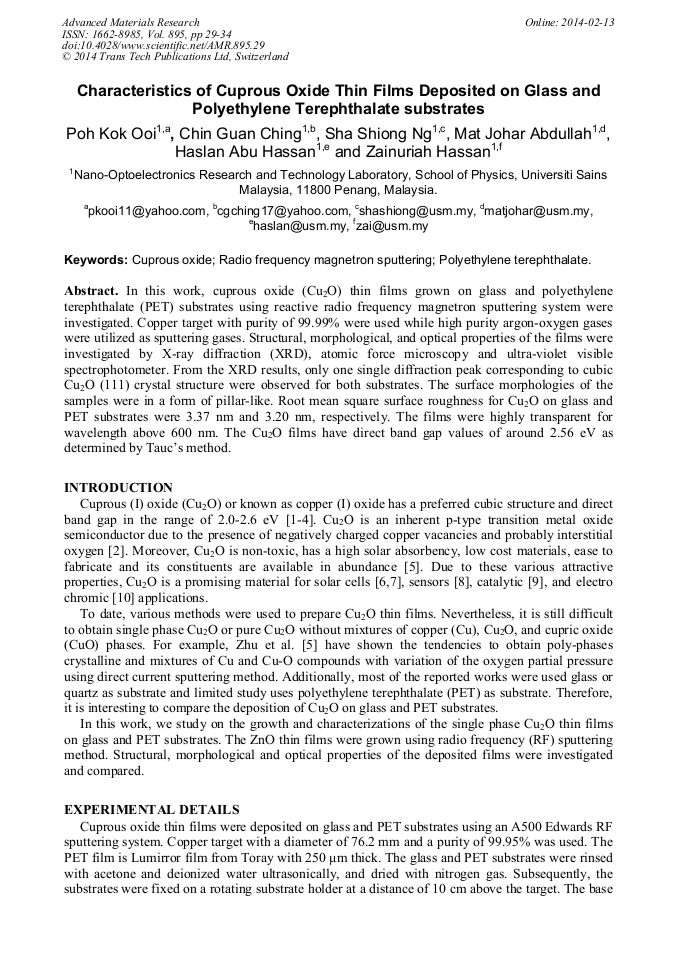

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 895)

Pages:

29-34

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.895.29

Citation:

Cite this paper

Online since:

February 2014

Authors:

Poh Kok Ooi*, Chin Guan Ching, Sha Shiong Ng, Mat Johar Abdullah, Abu Hassan Haslan, Hassan Zainuriah

Keywords:

Cuprous Oxide, Polyethylene Terephthalate, Radio Frequency Magnetron Sputtering

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] A.A. Ogwu, E. Bouquerel, O. Ademosu, S. Moh, E. Crossan and F. Placido: J. Phys. D Appl. Phys. Vol. 38 (2005), p.266.

DOI: 10.1088/0022-3727/38/2/011

Google Scholar

[2] Y. Nakano, S. Saeki and T. Morikawa: Appl. Phys. Lett. Vol. 94 (2009), p.022111.

Google Scholar

[3] N. Serin, T. Serin, S. Horzum and Y. Celik: Semicond. Sci. Tech. Vol. 20 (2005), p.398.

Google Scholar

[4] A.H. Jayatissa, K. Guo and A.C. Jayasuriya: Appl. Surf. Sci. Vol. 255 (2009), p.9474.

Google Scholar

[5] H. Zhu, J. Zhang, C. Li, F. Pan, T. Wang and B. Huang: Thin Solid Films Vol. 517 (2009), p.5700.

Google Scholar

[6] L.M. Wong, S.Y. Chiam, J.Q. Huang, S.J. Wang, J.S. Pan and W.K. Chim: J. Appl. Phys. Vol. 108 (2010), p.033702.

Google Scholar

[7] K. Han and M. Tao: Sol. Energ. Mater. Sol. Cells Vol. 93 (2009), p.153.

Google Scholar

[8] D. Barreca, E. Comini, A. Gasparotto, C. Maccato, C. Sada, G. Sberveglieri and E. Tondello: Sensors Actuat. B-Chem. Vol. 141 (2009), p.270.

DOI: 10.1016/j.snb.2009.05.038

Google Scholar

[9] G. Larsen and S. Noriega: Appl. Catal. A-Gen. Vol. 278 (2004), p.73.

Google Scholar

[10] O. Akhavan, H. Tohidi and A.Z. Moshfegh: Thin Solid Films Vol. 517 (2009), p.6700.

Google Scholar

[11] S. Ilican, M. Caglar and Y. Caglar: Mater. Sci. -Poland Vol. 25 (2007), p.709.

Google Scholar

[12] A.S. Reddy, G.V. Rao, S. Uthanna and P.S. Reddy: Mater. Lett. Vol. 60 (2006), p.1617.

Google Scholar
