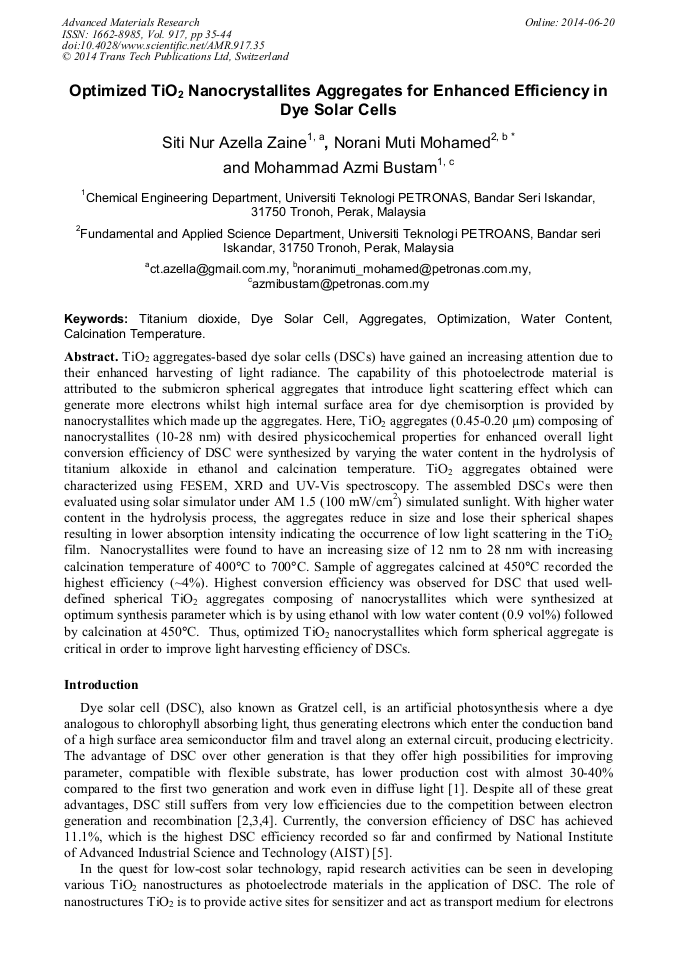

Optimized TiO₂ Nanocrystallites Aggregates for Enhanced Efficiency in Dye Solar Cells

Abstract:

TiO₂ aggregates-based dye solar cells (DSCs) have gained an increasing attention due to their enhanced harvesting of light radiance. The capability of this photoelectrode material is attributed to the submicron spherical aggregates that introduce light scattering effect which can generate more electrons whilst high internal surface area for dye chemisorption is provided by nanocrystallites which made up the aggregates. Here, TiO₂ aggregates (0.45-0.20 μm) composing of nanocrystallites (10-28 nm) with desired physicochemical properties for enhanced overall light conversion efficiency of DSC were synthesized by varying the water content in the hydrolysis of titanium alkoxide in ethanol and calcination temperature. TiO₂ aggregates obtained were characterized using FESEM, XRD and UV-Vis spectroscopy. The assembled DSCs were then evaluated using solar simulator under AM 1.5 (100 mW/cm²) simulated sunlight. With higher water content in the hydrolysis process, the aggregates reduce in size and lose their spherical shapes resulting in lower absorption intensity indicating the occurrence of low light scattering in the TiO₂ film. Nanocrystallites were found to have an increasing size of 12 nm to 28 nm with increasing calcination temperature of 400°C to 700°C. Sample of aggregates calcined at 450°C recorded the highest efficiency (~4%). Highest conversion efficiency was observed for DSC that used well-defined spherical TiO₂ aggregates composing of nanocrystallites which were synthesized at optimum synthesis parameter which is by using ethanol with low water content (0.9 vol%) followed by calcination at 450°C. Thus, optimized TiO₂ nanocrystallites which form spherical aggregate is critical in order to improve light harvesting efficiency of DSCs.

• Periodical: Advanced Materials Research (Volume 917)
• Pages: 35-44
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.917.35
• Online since: June 2014
• Authors: Siti Nur Azella Zaine, Norani Muti Mohamed*, Mohamad Azmi Bustam
• Keywords: Aggregates, Calcination Temperature, Dye Solar Cell, Optimization, Titanium Dioxide, Water Content

References

[1] G.F. Brown, J. Wu, Third generation photovoltaics, Laser & Photon. Rev., 3 (2009) 394-405.

[2] T.P. Chou, Q.F. Zhang, G.E. Fryxell, G.Z. Cao, Hierarchically structured ZnO film for dye-sensitized solar cells with enhanced energy conversion efficiency, Adv. Mater., 19 (2001) 2588-2592.

DOI: 10.1002/adma.200602927

[3] Q. F. Zhang, T.P. Chou, B. Russo, S.A. Jenekhe, G.Z. Cao, Polydisperse aggregates of ZnO nanocrystallites: A method for energy-conversion-efficiency enhancement in dye-sensitized solar cells, Adv. Funct. Mater., 18 (2008) 1654-1660.

DOI: 10.1002/adfm.200701073

[4] Q. F. Zhang, C.S. Dandeneau, X.Y. Zhou, G.Z. Cao, ZnO nanostructures for dye-sensitized solar cells, Adv. Mater., 19 (2009) 4087-4108.

DOI: 10.1002/adma.200803827

[5] Y. Chiba, A. Islam, Y. Watanabe, R. Komiya, N. Koide, L. Han, Dye-sensitized solar cells with conversion efficiency of 11. 1%, Japanese Journal of Applied Physics, 45 (2006) L638-L640.

DOI: 10.1143/jjap.45.l638

[6] M. Gratzel, Mesoporous oxide junctions and nanostructured solar cells, Current Opinion in Colloid & Interface Science, 4 (1999) 314-321.

DOI: 10.1016/s1359-0294(99)90013-4

[7] S. Nakade, Y. Saito, W. Kubo, T. Kitamura, Y. Wada, S. Yanagida, Influence of TiO2 nanoparticle size on electron diffusion and recombination in dye sensitized TiO2 solar cells, J. Phys. Chem. B, 107 (2003) 8607-8611.

DOI: 10.1021/jp034773w

[8] X. Chen, S.S. Mao, Synthesis of titanium dioxide (TiO2) nanomaterial, J. Nanoscience & Nanotechnology, 6 (2006) 906-925.

[9] J. Jiu, S. Isoda, M. Adachi, F. Wang, Preparation of TiO2 nanocrystalline with 3-5 nm and application for dye-sensitized solar cell, Journal of Photochemmistry and Photobiology A: Chemistry, 189 (2007) 314-321.

DOI: 10.1016/j.jphotochem.2007.02.021

[10] J. Liu, G.Z. Cao, Z. D. Yang, F. Wang, D. Dubois, X. Zhou, G.L. Graff, L.R. Pederson, J.G. Zhang, Oriented nanostructures for energy conversion and storage, ChemSusChem, 1 (2008) 676-697.

DOI: 10.1002/cssc.200800087

[11] E. A. Barringer, H.K. Bowen, High-purity, Monodisperse TiO2 powders by hydrolysis of titanium tetraethoxide: 1. Synthesis and physical properties, Langmuir, 1 (1985) 414-420.

DOI: 10.1021/la00064a005

[12] J. H. Jean, T.A. Ring, Nucleation and growth of monosized TiO2 powders from alcohol solution, Langmuir, 2 (1986) 251-255.

DOI: 10.1021/la00068a025

[13] Y. Hu, H-L. Tsai, C.L. Huang, Phase transformation of precipitated TiO2 nanoparticles, Material Science and Engineering A, 344 (2003) 209-214.

DOI: 10.1016/s0921-5093(02)00408-2

[14] Y. Lee, J. Chae, M. Kang, Comparison of the photovoltaic efficiency on DSSC for nanometer sized TiO2 using a conventional sol-gel and solvothermal methods, J. Industrial & Engineering Chem, 16 (2010) 609-614.

DOI: 10.1016/j.jiec.2010.03.008

[15] Y. Leng, X-Ray diffraction method, Material Characterization: Introduction to Microscopic and Spectroscopic Methods, John Wiley & Sons (Asia) Pte. Ltd., Hong Kong, (2008).

[16] J. Yu, G. Wang, B. Cheng, M. Zhou, Effects of hydrothermal temperature and time on the photocatalytic activity and microstructures of bimodal mesoporous TiO2 powders, Applied Catalysis B: Environmental, 69 (2007) 171-180.

DOI: 10.1016/j.apcatb.2006.06.022

[17] J. Yua, J. Fan, L. Zhao, Dye-sensitized solar cells based on hollow anatase TiO2 spheres prepared by self-transformation method, Electrochemica Acta, 55 (2010) 597-602.

DOI: 10.1016/j.electacta.2009.09.021
