Effect of Plastic Deformation on a Dispersion of Omega-Phase and Mechanical Properties of an Al-Cu-Mg-Ag Alloy

Article Preview

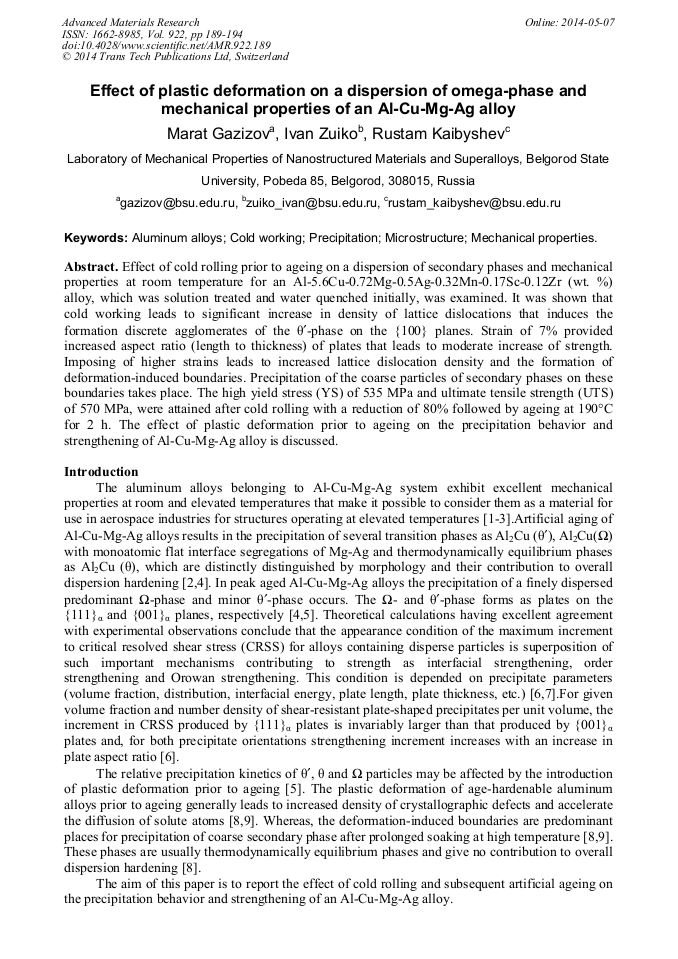

Abstract:

Effect of cold rolling prior to ageing on a dispersion of secondary phases and mechanical properties at room temperature for an Al-5.6Cu-0.72Mg-0.5Ag-0.32Mn-0.17Sc-0.12Zr (wt. %) alloy, which was solution treated and water quenched initially, was examined. It was shown that cold working leads to significant increase in density of lattice dislocations that induces the formation discrete agglomerates of the θ′-phase on the {100} planes. Strain of 7% provided increased aspect ratio (length to thickness) of plates that leads to moderate increase of strength. Imposing of higher strains leads to increased lattice dislocation density and the formation of deformation-induced boundaries. Precipitation of the coarse particles of secondary phases on these boundaries takes place. The high yield stress (YS) of 535 MPa and ultimate tensile strength (UTS) of 570 MPa, were attained after cold rolling with a reduction of 80% followed by ageing at 190°C for 2 h. The effect of plastic deformation prior to ageing on the precipitation behavior and strengthening of Al-Cu-Mg-Ag alloy is discussed.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

189-194

Citation:

Online since:

May 2014

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] I.J. Polmear, G. Pons, Y. Barbaux, H. Octor, C. Sanchez, A..J. Morton, W.E. Borbidge, S. Rogers, After Concorde: Evaluation of creep resistant Al-Cu-Mg-Ag alloys, Mater. Sci. Tech. 15 (1999) 861-868.

DOI: 10.1179/026708399101506599

Google Scholar

[2] D. Bakavos, P.B. Prangnell, B. Bes, F. Eberl, The effect of silver on microstructural evolution in two 2xxx series Al-alloys with a high Cu:Mg ratio during ageing to a T8 temper, Mater. Sci. Eng. A491 (2008) 214-223.

DOI: 10.1016/j.msea.2008.03.014

Google Scholar

[3] M. Vural, J. Caro, Experimental analysis and constitutive modeling for the newly developed 2139-T8 alloy, Mater. Sci. Eng. A520 (2009) 56-65.

DOI: 10.1016/j.msea.2009.05.026

Google Scholar

[4] S.C. Wang, M.J. Starink, Precipitates and intermetallic phases in precipitation hardening Al–Cu–Mg–(Li) based alloys, Int. Mater. Rev. 50 (2005) 193-215.

DOI: 10.1179/174328005x14357

Google Scholar

[5] S.P. Ringer, B.C. Muddle, I.J. Polmear, Effects of cold work on precipitation in Al-Cu-Mg-(Ag) and Al-Cu-Li-(Mg-Ag) alloys, Metall. Mater. Trans. 26A (1995) 1659-1671

DOI: 10.1007/bf02670753

Google Scholar

[6] F.J. Nie, B.C. Muddle, Microstructural design of high-strength aluminum alloys, J. Ph. Equilib. 19 (1998) 543-551.

DOI: 10.1361/105497198770341734

Google Scholar

[7] F.J. Nie, B.C. Muddle, Comments on the "Dislocation interaction with semicoherent precipitates (Ω phase) in deformed Al-Cu-Mg-Ag alloy", Scr. Mater. 42 (2000) 409-413.

DOI: 10.1016/s1359-6462(99)00345-0

Google Scholar

[8] D.A. Porter, K.E. Esterling, M. Sherif, Phase Transformation in Metals and Alloys, third ed., CRS Press, 2009.

Google Scholar

[9] R.N. Lumley, A.J. Morton, I.J. Polmear, Enhanced creep performance in an Al-Cu-Mg-Ag alloy through underageing, Acta Mater. 50 (2002) 3597-3608.

DOI: 10.1016/s1359-6454(02)00164-7

Google Scholar

[10] M. Gazizov, V. Teleshov, V. Zakharov, R. Kaibyshev, Solidification behaviour and the effects of homogenisation on the structure of an Al-Cu-Mg-Ag-Sc alloy, J. Alloys Compd. 509 (2011) 9497-9507

DOI: 10.1016/j.jallcom.2011.07.050

Google Scholar

[11] B.D. Williams, C.B. Carter, Transmission Electron Microscopy, third ed., Springer, New York, (2009)

Google Scholar

[12] L.E Mondolfo, Aluminium Alloys: Structure and Properties, Butterworths, London, 1976.

Google Scholar

[13] W.P. Mason, Drag on dislocations due to thermal losses of the phonon-phonon interaction type, J. Appl. Phys. 35(9) (1964) 2779-2781.

DOI: 10.1063/1.1713841

Google Scholar

[14] J.M. Oblak, D.F. Paulonis, D.S. Duvall, Coherency strengthening in Ni base alloys hardened by DO22 γ' precipitates, Metall. Trans. 5(1) (1974) 143-153.

DOI: 10.1007/bf02642938

Google Scholar
