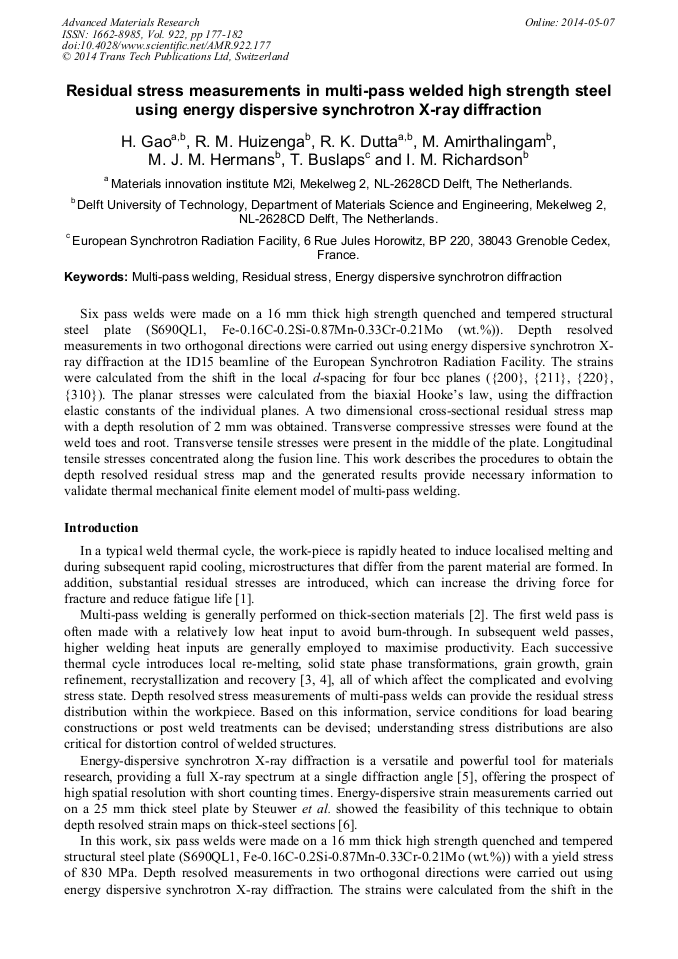

Residual Stress Measurements in Multi-Pass Welded High Strength Steel Using Energy Dispersive Synchrotron X-Ray Diffraction

Abstract:

Six pass welds were made on a 16 mm thick high strength quenched and tempered structural steel plate (S690QL1, Fe-0.16C-0.2Si-0.87Mn-0.33Cr-0.21Mo (wt.%)). Depth resolved measurements in two orthogonal directions were carried out using energy dispersive synchrotron X-ray diffraction at the ID15 beamline of the European Synchrotron Radiation Facility. The strains were calculated from the shift in the local d-spacing for four bcc planes ({200}, {211}, {220}, {310}). The planar stresses were calculated from the biaxial Hooke’s law, using the diffraction elastic constants of the individual planes. A two dimensional cross-sectional residual stress map with a depth resolution of 2 mm was obtained. Transverse compressive stresses were found at the weld toes and root. Transverse tensile stresses were present in the middle of the plate. Longitudinal tensile stresses concentrated along the fusion line. This work describes the procedures to obtain the depth resolved residual stress map and the generated results provide necessary information to validate thermal mechanical finite element model of multi-pass welding.

• Periodical: Advanced Materials Research (Volume 922)
• Pages: 177-182
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.922.177
• Online since: May 2014
• Authors: H. Gao*, R.M. Huizenga, R.K. Dutta, M. Amirthalingam, M.J.M. Hermans, T. Buslaps, I.M. Richardson
• Keywords: Energy Dispersive Synchrotron Diffraction, Multi-Pass Welding, Residual Stress

References

[1] P.J. Withers, H.K.D.H. Bhadeshia, Overview - Residual stress part 2 - Nature and origins, Mater. Sci. Tech., 17 (2001) 366-375.

[2] C. Heinze, C. Schwenk, M. Rethmeier, Numerical calculation of residual stress development of multi-pass gas metal arc welding under high restraint conditions, Materials & Design, 35 (2012) 201-209.

DOI: 10.1016/j.matdes.2011.09.021

[3] D. Deng, H. Murakawa, Prediction of welding residual stress in multi-pass butt-welded modified 9Cr–1Mo steel pipe considering phase transformation effects, Comp. Mater. Sci., 37 (2006) 209-219.

DOI: 10.1016/j.commatsci.2005.06.010

[4] C. Heinze, C. Schwenk, M. Rethmeier, Numerical calculation of residual stress development of multi-pass gas metal arc welding, J. Constr. Steel. Res., 72 (2012) 12-19.

DOI: 10.1016/j.jcsr.2011.08.011

[5] K.D. Liss, A. Bartels, A. Schreyer, H. Clemens, High energy X-rays: A tool for advanced bulk investigations in materials science and physics, Textures and Microstructures, 35 (2003) 219-252.

DOI: 10.1080/07303300310001634952

[6] A. Steuwer, J.R. Santisteban, M. Turski, P.J. Withers, T. Buslaps, High-resolution strain mapping in bulk samples using full-profile analysis of energy dispersive synchrotron X-ray diffraction data, Nucl. Instrum. Meth. B, 238 (2005) 200-204.

DOI: 10.1107/s0021889804023349

[7] R.K. Dutta, R.M. Huizenga, M. Amirthalingam, A. King, H. Gao, M.J.M. Hermans, I.M. Richardson, In situ synchrotron diffraction studies on the temperature-dependent plane-specific elastic constants in a high-strength quenched and tempered structural steel, Scripta Mater, (2013) 187-190.

DOI: 10.1016/j.scriptamat.2013.03.031

[8] H. Gao, R.K. Dutta, M.J.M. Hermans, I.M. Richardson, Simulation of multi-pass welding of high strength steel, in: Mathematical modelling of weld phenomena 10, 2012.
