Relevance of Hot Ductility Tests to Crack Sensitivity during Continuous Casting of Steel

Simon Großeiber; Christian Gusenbauer; Sergiu Ilie; Guillermo C. Requena; Ernst Kozeschnik

doi:10.4028/www.scientific.net/AMR.922.201

Paper Titles

Residual Stress Measurements in Multi-Pass Welded High Strength Steel Using Energy Dispersive Synchrotron X-Ray Diffraction
p.177

Effects of Thermomechanical Treatments on Microstructure and Mechanical Behavior of HCS/LCS Bimetal
p.183

Effect of Plastic Deformation on a Dispersion of Omega-Phase and Mechanical Properties of an Al-Cu-Mg-Ag Alloy
p.189

Effect of Carbon Gradient on the Microstructure and Mechanical Properties of Fe-22Mn-C TWIP/TRIP Steels
p.195

Relevance of Hot Ductility Tests to Crack Sensitivity during Continuous Casting of Steel
p.201

Thermomechanical Ageing of Copper-Clad Aluminum Wires Submitted to Creep Test Conditions
p.207

Application of Texture Analysis for Optimizing Thermo-Mechanical Treatment of a High Mn TWIP Steel
p.213

Cu/Cu Direct Bonding by Metal Salt Generation Bonding Technique with Formic Acid and Citric Acid
p.219

Influence of the Partitioning Treatment on the Mechanical Properties of a 0.3C-1.5Si-3.5Mn Q&P Steel
p.224

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 922Relevance of Hot Ductility Tests to Crack...

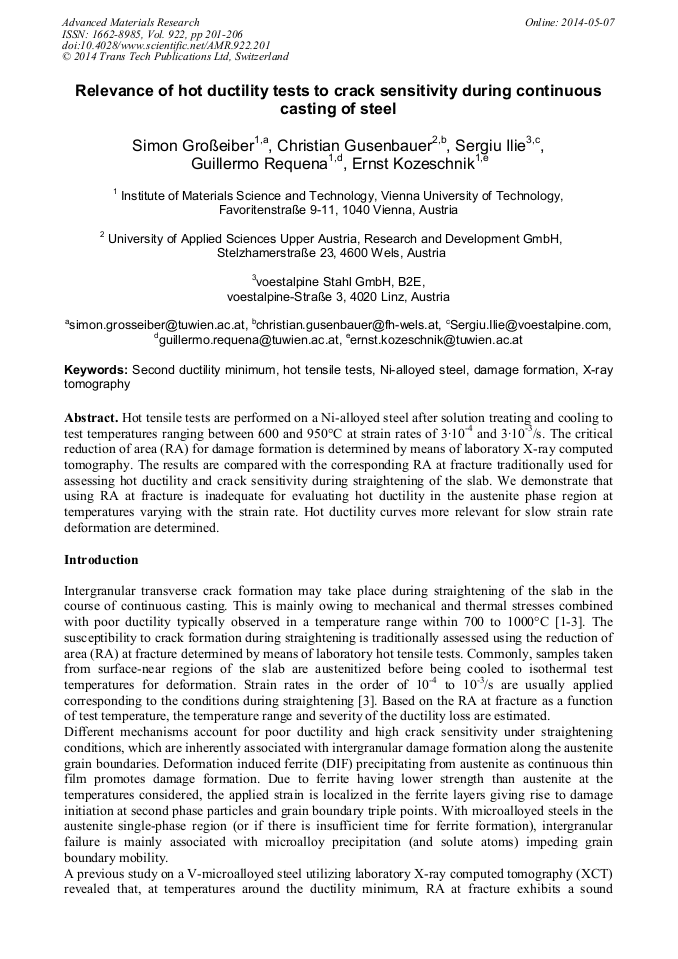

Relevance of Hot Ductility Tests to Crack Sensitivity during Continuous Casting of Steel

Abstract:

Hot tensile tests are performed on a Ni-alloyed steel after solution treating and cooling to test temperatures ranging between 600 and 950°C at strain rates of 3∙10^-4 and 3∙10^-3/s. The critical reduction of area (RA) for damage formation is determined by means of laboratory X-ray computed tomography. The results are compared with the corresponding RA at fracture traditionally used for assessing hot ductility and crack sensitivity during straightening of the slab. We demonstrate that using RA at fracture is inadequate for evaluating hot ductility in the austenite phase region at temperatures varying with the strain rate. Hot ductility curves more relevant for slow strain rate deformation are determined.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 922)

Pages:

201-206

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.922.201

Citation:

Cite this paper

Online since:

May 2014

Authors:

Simon Großeiber*, Christian Gusenbauer, Sergiu Ilie, Guillermo C. Requena, Ernst Kozeschnik

Keywords:

Damage Formation, Hot Tensile Tests, Ni-Alloyed Steel, Second Ductility Minimum, X-Ray Tomography

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] J.K. Brimacombe, K. Sorimachi, Crack formation in the continuous casting of steel, Metall. Mater.Trans. B 8 (1977) 489-505.

DOI: 10.1007/bf02696937

Google Scholar

[2] B.G. Thomas, J.K. Brimacombe, I.V. Samarasekera, The formation of panel cracks in steel ingots, A state of the art review, Part I: Hot ductility of steel, Transactions of the Iron and Steel Society 7 (1986) 7- 20.

DOI: 10.1007/bf02654214

Google Scholar

[3] B. Mintz, S. Yue, J.J. Jonas, Hot ductility of steels and its relationship to the problem of transverse cracking during continuous casting, Int. Mater. Rev. Vol 36(1) (1991) 187-220.

DOI: 10.1179/imr.1991.36.1.187

Google Scholar

[4] S. Großeiber, S. Ilie, C. Poletti, B. Harrer, H.P. Degischer, Influence of strain rate on hot ductility of a V-microalloyed steel slab, Steel Res. Int. 83(5) (2012) 445-455.

DOI: 10.1002/srin.201100335

Google Scholar

[5] B. Mintz, The influence of composition on the hot ductility of steels and to the problem of transverse cracking, ISIJ Int. 39 (1999) 833-855.

DOI: 10.2355/isijinternational.39.833

Google Scholar

[6] http://matcalc.tuwien.ac.at

Google Scholar

[7] W. T. Nachtrab, Y. T. Chou, High temperature ductility loss in carbon-manganese and niobium-treated steels, Metall. Trans. A 17(11) (1986) 1995-2006.

DOI: 10.1007/bf02644997

Google Scholar

[8] J. P. Michel, J. J. Jonas, Precipitation kinetics and solute strengthening in high temperature austenites containing Al and N, Acta Metall. 29(3) (1981) 513-526.

DOI: 10.1016/0001-6160(81)90075-4

Google Scholar

[9] D. N. Crowther, Z. M. P. D. Student, B. Mintz, The relative influence of dynamic and static precipitation on the hot ductility of microalloyed steels, Metall. Trans. A 18(11) (1987) 1929-1939.

DOI: 10.1007/bf02647023

Google Scholar

[10] F. G. Wilson, T. Gladman, Aluminium nitride in steel, Int. Mater. Rev. 33(1) (1988) 221-286.

Google Scholar
