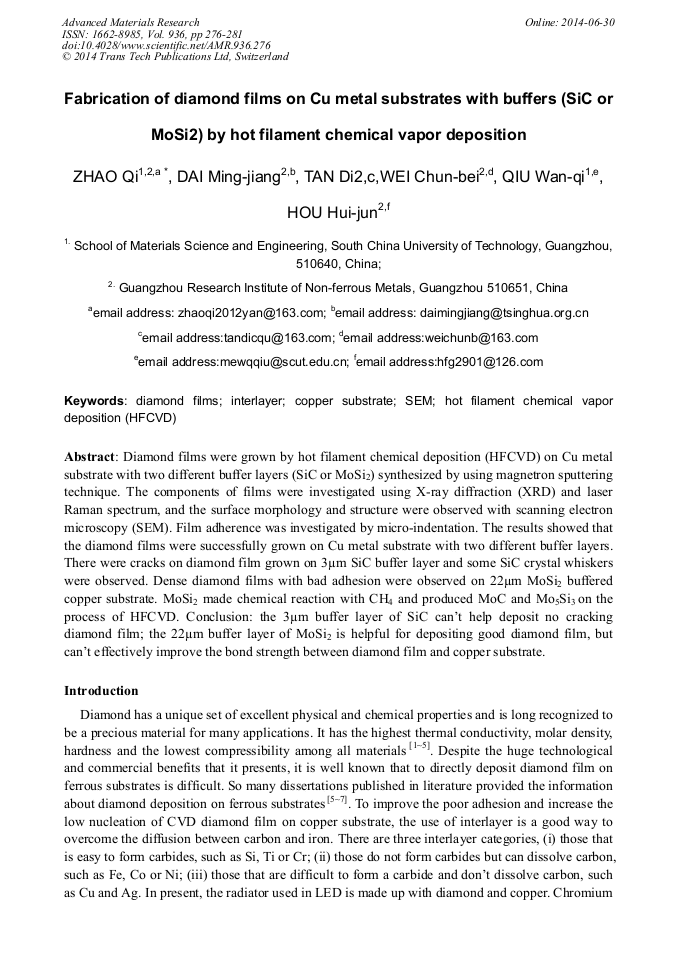

Fabrication of Diamond Films on Cu Metal Substrates with Buffers (SiC or MoSi₂) by Hot Filament Chemical Vapor Deposition

Abstract:

Diamond films were grown by hot filament chemical deposition (HFCVD) on Cu metal substrate with two different buffer layers (SiC or MoSi2) synthesized by using magnetron sputtering technique. The components of films were investigated using X-ray diffraction (XRD) and laser Raman spectrum, and the surface morphology and structure were observed with scanning electron microscopy (SEM). Film adherence was investigated by micro-indentation. The results showed that the diamond films were successfully grown on Cu metal substrate with two different buffer layers. There were cracks on diamond film grown on 3µm SiC buffer layer and some SiC crystal whiskers were observed. Dense diamond films with bad adhesion were observed on 22µm MoSi2 buffered copper substrate. MoSi2 made chemical reaction with CH4 and produced MoC and Mo5Si3 on the process of HFCVD. Conclusion: the 3µm buffer layer of SiC can’t help deposit no cracking diamond film; the 22µm buffer layer of MoSi2 is helpful for depositing good diamond film, but can’t effectively improve the bond strength between diamond film and copper substrate.

• Periodical: Advanced Materials Research (Volume 936)
• Pages: 276-281
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.936.276
• Online since: June 2014
• Authors: Qi Zhao*, Ming Jiang Dai, Di Tan, Chun Bei Wei, Wan Qi Qiu, Hui Jun Hou
• Keywords: Copper Substrate, Diamond Films, Hot Filament Chemical Vapor Deposition (HFCVD), Interlayer, SEM

References

[1] Fang Mei, Yu Zhimin, Xiao Zhu, Chen Shuang, Chen Yongqing. Influences of substrate pre-treatments on diamond/beryllia composite, J. Materials Science and Engineering of Powder Metallurgy, 14(2009)32~36.

[2] Zhang Wenkai, Peng Fang, Guo Zhengtang, Guan Junwei, Li Rongqi. Research on Thermal Conductivity of Diamond with Cr, Ti Coating/Copper Composite Materials by Sintering under High Pressure , J. chinese journal of high pressure physics, 26(2012).

[3] S.D. Wolter, D. -A., Borca-Tasciuc, G. Chen, N. Govindaraju, R. Collazo. Thermal conductivity of epitaxially textured diamond films, J. Diamond and Related Materials, 12(2003)61~64.

DOI: 10.1016/s0925-9635(02)00248-0

[4] P. Miranzo, M.I. Osendi, E. Garcia, A.J.S. Fernandes, V.A. Silva, F.M. Costa, R.F. Silva. Thermal conductivity enhancement in cutting tools by chemical vapor deposition diamond coating, J. Diamond and Related Materials, 11(2002)703~707.

DOI: 10.1016/s0925-9635(02)00028-6

[5] Q.P. Wei, Z.M. Yu, L. Ma, D.F. Yin , J. Ye. The effects of temperature on nanocrystalline diamond films deposited on WC-13 wt. % Co substrate with W-C gradient layer, J. Applied Surface Science, 256(2009)1322-1328.

DOI: 10.1016/j.apsusc.2009.06.091

[6] Qiuping Wei, Michael N.R. Ashfold, Yu. A. Mankelevich, Z.M. Yu, P.Z. Liu, L. Ma. Diamond growth on WC-Co substrates by hot filament chemical vapor deposition: Effect of filament-substrate separation, J. Diamond and Related Materials, 20(2011).

DOI: 10.1016/j.diamond.2011.02.017

[7] Changzhi Gu, Zengsun Jin, Xianyi Lu, Guangtian Zou, Jifa Zhang, Rongchuan Fang. The deposition of diamond film with high thermal conductivity, J. Thin Solid Films, 311(1997)124~127.

DOI: 10.1016/s0040-6090(97)00447-1

[8] Vladimir V. Mirkovich. (Eds). Thermal conductivity 15. Canada centre for mineral and Energy technology, Ottawa, Ontario, Canada, 1978, 1~302.

[9] Leticia W. de Resende, Evaldo J. Corat, Vladimir J. Trava-Airoldi, Nelia F. Leite. Multi-layer structure for chemical vapor deposition diamond on electroplated diamond tools, J. Diamond and Related Materials, 10(2001)332~336.

DOI: 10.1016/s0925-9635(00)00502-1

[10] [Cheng Tzu Kuo, Chii Ruey Lin, How Min Lien. Origins of the residual stress in CVD diamond films, J. Thin Solid Films, 290-291(1996)254~259.

DOI: 10.1016/s0040-6090(96)09016-5

[11] May P W, Ludlow W J, Hannaway M. Raman and conductivity studies of boron doped microcrystalline diamond, J. Chemical physics Letters, 446(2007) 103~108.

DOI: 10.1016/j.cplett.2007.08.018

[12] Wild C, Koidl P, Muller S. Chemical vapor deposition and characterization of smooth {100}-faced diamond films, J. Diamond and Related materials, 2(1993)158~168.

DOI: 10.1016/0925-9635(93)90047-6

[13] Qiuping Wei, Z.M. Yu, Michael N.R. Ashfold, Z. Chen, L. Wang, L. Ma. Effects of thickness and cycle parameters on fretting wear behavior of CVD diamond coatings on steel substrates, J. Diamond and Related materials, 205(2010)158~167.

DOI: 10.1016/j.surfcoat.2010.06.026

[14] W.Q. Qiu, A. Dasari, Y. -W. Mai. Improvement in adhesion of diamond film on Cu substrate with an inlay structured interlayer, J. Surface & Coatings Technology, 206(2011)224-227.

DOI: 10.1016/j.surfcoat.2011.06.048
