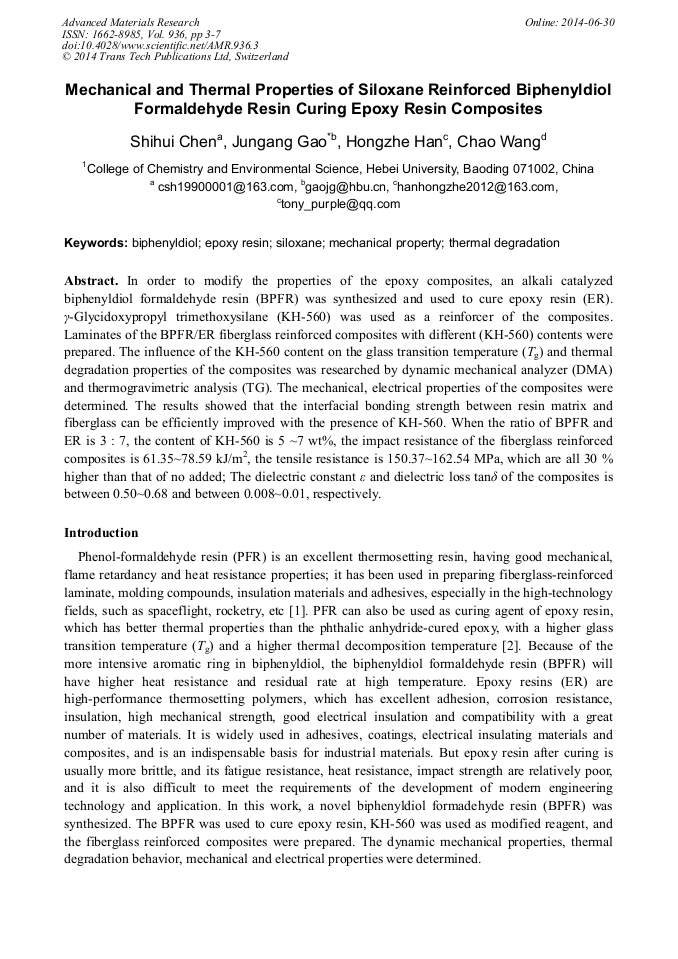

Mechanical and Thermal Properties of Siloxane Reinforced Biphenyldiol Formaldehyde Resin Curing Epoxy Resin Composites

Abstract:

In order to modify the properties of the epoxy composites, an alkali catalyzed biphenyldiol formaldehyde resin (BPFR) was synthesized and used to cure epoxy resin (ER). γ-Glycidoxypropyl trimethoxysilane (KH-560) was used as a reinforcer of the composites. Laminates of the BPFR/ER fiberglass reinforced composites with different (KH-560) contents were prepared. The influence of the KH-560 content on the glass transition temperature (T_g) and thermal degradation properties of the composites was researched by dynamic mechanical analyzer (DMA) and thermogravimetric analysis (TG). The mechanical, electrical properties of the composites were determined. The results showed that the interfacial bonding strength between resin matrix and fiberglass can be efficiently improved with the presence of KH-560. When the ratio of BPFR and ER is 3 : 7, the content of KH-560 is 5 ~7 wt%, the impact resistance of the fiberglass reinforced composites is 61.35~78.59 kJ/m², the tensile resistance is 150.37~162.54 MPa, which are all 30 % higher than that of no added; The dielectric constant ε and dielectric loss tanδ of the composites is between 0.50~0.68 and between 0.008~0.01, respectively.

• Periodical: Advanced Materials Research (Volume 936)
• Pages: 3-7
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.936.3
• Online since: June 2014
• Authors: Shi Hui Chen, Jun Gang Gao*, Hong Zhe Han, Chao Wang
• Keywords: Biphenyldiol, Epoxy Resin (ER), Mechanical Property, Siloxane, Thermal Degradation

References

[1] K Hirano, M. Asami Phenolic resins-100 years of progress and their future. Reactive & Functional Polymer, 73 (2013) 256-269.

DOI: 10.1016/j.reactfunctpolym.2012.07.003

[2] C. S Tyberg, K. Bergeron, M. Sankarapandian Structure-property relationships of void-free phenolic-epoxy matrix materials. Polymer, 41 (2000) 5053-5062.

DOI: 10.1016/s0032-3861(99)00574-1

[3] J. K. Gillham The TBA torsion pendulum: a technique for characterizing the cure and properties of thermosetting systems. Polym. Int., 44 (1997), 262-276.

DOI: 10.1002/(sici)1097-0126(199711)44:3<262::aid-pi863>3.0.co;2-w

[4] M. Ogata, N. Kinjo, T. Kawata, Effects of crosslinking on physical properties of phenol- formaldehyde novolac cured epoxy resins. J. Appl. Polym. Sci. 48(1993): 583-601.

DOI: 10.1002/app.1993.070480403

[5] Y. Liu, S. Shen, L. Li, et al. Research progress on the treatment of glass fiber surface by coupling agent. Insulating Materials, 43 (2010), 34-39.

[6] Y. Chen, Z. Chen, H. Liu. Effect of methylene substituents on the thermal degradation of phenolic resin. Acta Polymerica Sinica, (5) (2008), 399-404.

DOI: 10.3724/sp.j.1105.2008.00399

[7] H. L. Friedman, Kinetics of thermal degradation of char-forming plastics from thermogravimetry. Application to a phenolic plastic. J. Polym. Sci. C, 6 (1964), 183-195.

DOI: 10.1002/polc.5070060121
