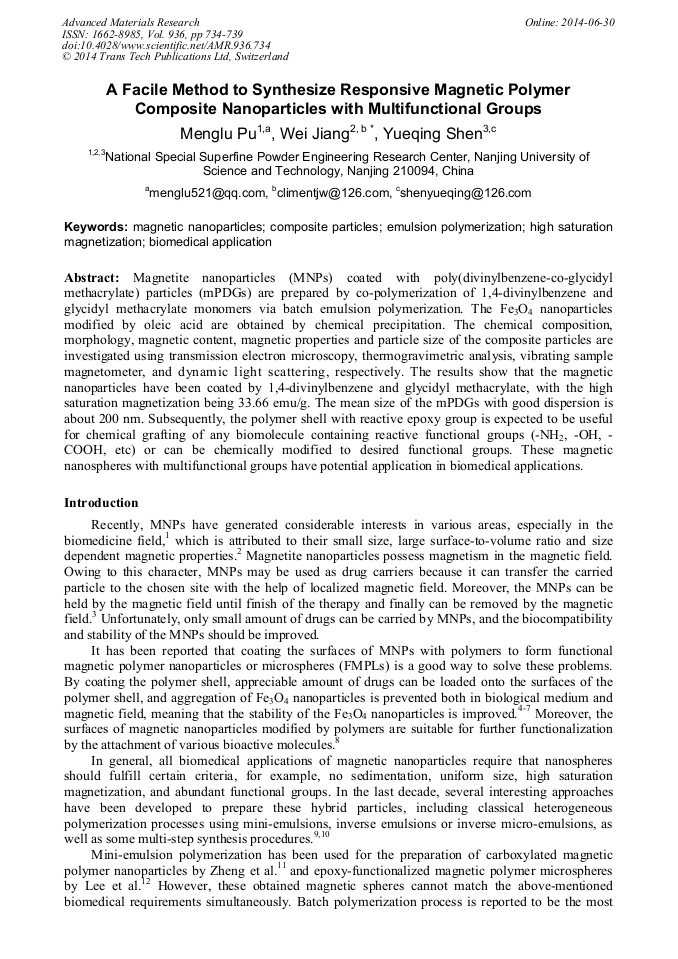

A Facile Method to Synthesize Responsive Magnetic Polymer Composite Nanoparticles with Multifunctional Groups

Abstract:

Magnetite nanoparticles (MNPs) coated with poly (divinylbenzene-co-glycidyl methacrylate) particles (mPDGs) are prepared by co-polymerization of 1,4-divinylbenzene and glycidyl methacrylate monomers via batch emulsion polymerization. The Fe₃O₄ nanoparticles modified by oleic acid are obtained by chemical precipitation. The chemical composition, morphology, magnetic content, magnetic properties and particle size of the composite particles are investigated using transmission electron microscopy, thermogravimetric analysis, vibrating sample magnetometer, and dynamic light scattering, respectively. The results show that the magnetic nanoparticles have been coated by 1,4-divinylbenzene and glycidyl methacrylate, with the high saturation magnetization being 33.66 emu/g. The mean size of the mPDGs with good dispersion is about 200 nm. Subsequently, the polymer shell with reactive epoxy group is expected to be useful for chemical grafting of any biomolecule containing reactive functional groups (-NH₂, -OH, -COOH, etc) or can be chemically modified to desired functional groups. These magnetic nanospheres with multifunctional groups have potential application in biomedical applications.

• Periodical: Advanced Materials Research (Volume 936)
• Pages: 734-739
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.936.734
• Online since: June 2014
• Authors: Meng Lu Pu*, Wei Jiang, Yue Qing Shen
• Keywords: Biomedical Application, Composite Particles, Emulsion Polymerization, High Saturation Magnetization, Magnetic Nanoparticles

References

[1] A. S. Lübbe, C. Alexiou, C. Bergemann, Clinical applications of magnetic drug targeting, J. Surgical Res. 95 (2001) 200-206.

DOI: 10.1006/jsre.2000.6030

[2] H. Maeda, J. Wu, T. Sawa, Tumor vascular permeability and the EPR effect in macromolecular therapeutics: a review, J. Controlled Release. 65 (2000) 271-284.

DOI: 10.1016/s0168-3659(99)00248-5

[3] S. Dietrich, S. Chandra, C. Georgi, Design, characterization and magnetic properties of Fe3O4-nanoparticle arrays coated with PEGylated-dendrimers, Mater. Chem. Phys. 132 (2012) 292-299.

DOI: 10.1016/j.matchemphys.2011.11.015

[4] Y. Wang, H-J. Kim, G. Vunjak-Novakovic, Stem cell-based tissue engineering with silk biomaterials, Biomaterials. 27 (2006) 6064-6082.

DOI: 10.1016/j.biomaterials.2006.07.008

[5] J. K. Oh, J. M. Park, Iron oxide-based superparamagnetic polymeric nanomaterials: Design, preparation, and biomedical application, Prog. Polym. Sci. 36 (2011) 168-189.

DOI: 10.1016/j.progpolymsci.2010.08.005

[6] M. Lattuada, T. A. Hatton, Functionalization of monodisperse magnetic nanoparticles, Langmuir. 23 (2007) 2158-2168.

DOI: 10.1021/la062092x

[7] X. Shi, T. P. Thomas, L. A. Myc, Synthesis, characterization, and intracellular uptake of carboxyl-terminated poly(amidoamine) dendrimer-stabilized iron oxide nanoparticles, PCCP. 9 (2007) 5712-5720.

DOI: 10.1039/b709147h

[8] X. Liu, Q. Dai, L. Austin, A One-step homogeneous immunoassay for cancer biomarker detection using gold nanoparticle probes coupled with dynamic light scattering, J. Amer. Chem. Soc. 130 (2008) 2780-2782.

DOI: 10.1021/ja711298b

[9] P. Tartaj, M. del Puerto Morales, S. Veintemillas-Verdaguer, The preparation of magnetic nanoparticles for applications in biomedicine, J. Phys. D: Appl. Phys. 36 (2003) R182.

DOI: 10.1088/0022-3727/36/13/202

[10] R. Hidalgo-Álvarez, Structure and functional properties of colloidal systems, CRC Press, (2010).

[11] W. Zheng, F. Gao, H. Gu, Carboxylated magnetic polymer nanolatexes: Preparation, characterization and biomedical applications, J. Magn. Magn. Mater. 293 (2005) 199-205.

DOI: 10.1016/j.jmmm.2005.01.082

[12] S. S. Lee, K. Y. Park, J. Y. Kim, Effect of GMA on monodisperse epoxy-functionalized polymer microsphere particles by dispersion copolymerization of styrene with glycidyl methacrylate, J. Appl. Polym. Sci. 80 (2001) 1206-1212.

DOI: 10.1002/app.1205

[13] R. A. Ramli, S. Hashim, W. A. Laftah, Synthesis, characterization, and morphology study of poly(acrylamide-co-acrylic acid)-grafted-poly(styrene-co-methyl methacrylate) raspberry, -shape like structure microgels by pre-emulsified semi-batch emulsion polymerization, J. Colloid Interface Sci. 391 (2013).

DOI: 10.1016/j.jcis.2012.09.047

[14] F. Montagne, O. Mondain-Monval, C. Pichot, Highly magnetic latexes from submicrometer oil in water ferrofluid emulsions, J. Polym. Sci. Part A: Polym. Chem. 44 (2006) 2642-2656.

DOI: 10.1002/pola.21391

[15] J. Zhang, D. Yu, W. Chen, Preparation of poly(styrene-glucidylmethacrylate)/Fe3O4 composite microspheres with high magnetite contents, J. Magn. Magn. Mater. 321 (2009) 572-577.

DOI: 10.1016/j.jmmm.2008.08.093

[16] M. M. Eissa, M. Rahman, N. Zine, Reactive magnetic poly(divinylbenzene-co-glycidyl methacrylate) colloidal particles for specific antigen detection using microcontact printing technique, Acta biomaterialia. 9 (2013) 5573-5582.

DOI: 10.1016/j.actbio.2012.10.027

[17] V. R. Babu, M. Sairam, K. M. Hosamani, Development of 5-fluorouracil loaded poly(acrylamide-co-methylmethacrylate) novel core-shell microspheres: In vitro release studies, Int. J. Pharm. 325 (2006) 55-62.

DOI: 10.1016/j.ijpharm.2006.06.020

[18] T. Begam, R. Tomar, A. Nagpal, Synthesis of poly(acrylamide-co-methyl methacrylate-co-vinyl amine-co-acrylic acid) hydrogels by Hoffman degradation and their interactions with acetaminophen, J. Appl. Polym. Sci. 94 (2004) 40-52.

DOI: 10.1002/app.20706

[19] S. Wu, W. Jiang, Z. Sun, Preparation of novel magnetic fluorescent nanospheres by sonochemical method, J. Magn. Magn. Mater. 323 (2011) 2170-2173.

DOI: 10.1016/j.jmmm.2011.03.025
