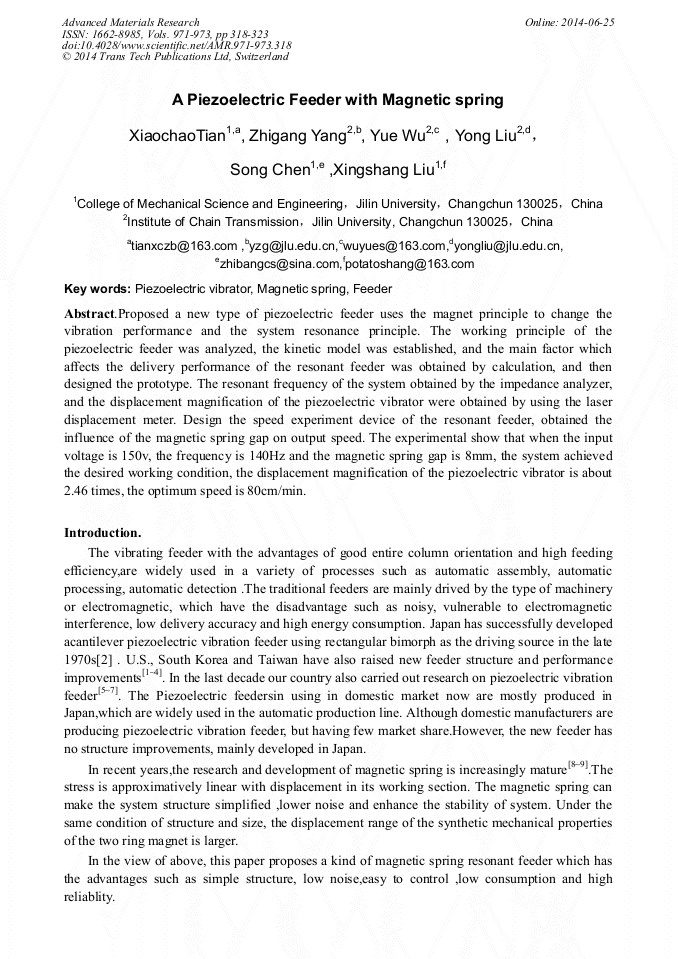

A Piezoelectric Feeder with Magnetic Spring

Abstract:

Proposed a new type of piezoelectric feeder uses the magnet principle to change the vibration performance and the system resonance principle. The working principle of the piezoelectric feeder was analyzed, the kinetic model was established, and the main factor which affects the delivery performance of the resonant feeder was obtained by calculation, and then designed the prototype. The resonant frequency of the system obtained by the impedance analyzer, and the displacement magnification of the piezoelectric vibrator were obtained by using the laser displacement meter. Design the speed experiment device of the resonant feeder, obtained the influence of the magnetic spring gap on output speed. The experimental show that when the input voltage is 150v, the frequency is 140Hz and the magnetic spring gap is 8mm, the system achieved the desired working condition, the displacement magnification of the piezoelectric vibrator is about 2.46 times, the optimum speed is 80cm/min.

• Periodical: Advanced Materials Research (Volumes 971-973)
• Pages: 318-323
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.971-973.318
• Online since: June 2014
• Authors: Xiao Chao Tian*, Zhi Gang Yang, Yue Wu, Yong Liu, Song Chen, Xing Shang Liu
• Keywords: Feeder, Magnetic Spring, Piezoelectric Vibrator

References

[1] Maul G P，Thomas M B． A system model and simulation of the vibratory bowl feeder［J］． Journal of Manufacturing Systems，1997，16( 5) : 309 ～ 314.

DOI: 10.1016/s0278-6125(97)88461-0

[2] Special pottery industry Ltd．Piezoelectric vibrating conveying means: Japan，52-61087［P］． 1977-05-04.

[3] Paul C P，Chao，Chien-Yu Shen． Dynamic modeling and experimental verification of a piezoelectric part feeder in a structure with parallel bimorph beams［J］．Ultrasonics，2007，46( 3) : 205 ～ 218.

DOI: 10.1016/j.ultras.2007.02.002

[4] Ting Yung，Shin Min-Sheng，Chang Hong-Yuan． Analysis and design of four-bar linkage type vibratory parts feeder driven bypiezoelectric actuator［C］∥Proceeding of the ASME Design Engineering Technical Conference，2002: 43 ～ 50.

DOI: 10.1115/detc2002/dac-34037

[5] JIANG Bin, LIU Xiao-lun, YANGZhi-gang, et al. Study on vertical drive ultrasonic feeder［J］．Optics and Precision Engineering, 2008，16(6): 1082～1086．( in Chinese).

[6] TIAN Zhong-jing，WU Wen-fu，HAN Feng. The Experimental Research on the Floating Piezoelectric Vibratory Feeder[J]. PIEZOELECTECTRICS and ACOUSTOOPTICS, 28（5）：557～559. ( in Chinese).

[7] Su Jiang, Yang Zhigang, TianFengjun, et al. Inertial Piezoelectric Vibratory Feeder[J]. Journal of agricultural machinery, 2013, 44（8）：281～286. ( in Chinese).

[8] QIANKX, LVLC, RUWM，et al. amagnetis spring and its elasticity[J]. Chine Journal ofMechanical Engineering，1998，34(3): 57-59. (in Chinese).

[9] Cai Changchun, Xu Zhifeng, Zhuang Jianping, et al. The analysis of working property for magnetic spring[J]. Equipment design and maintenance, 2003(6): 73～74. (in Chinese).
