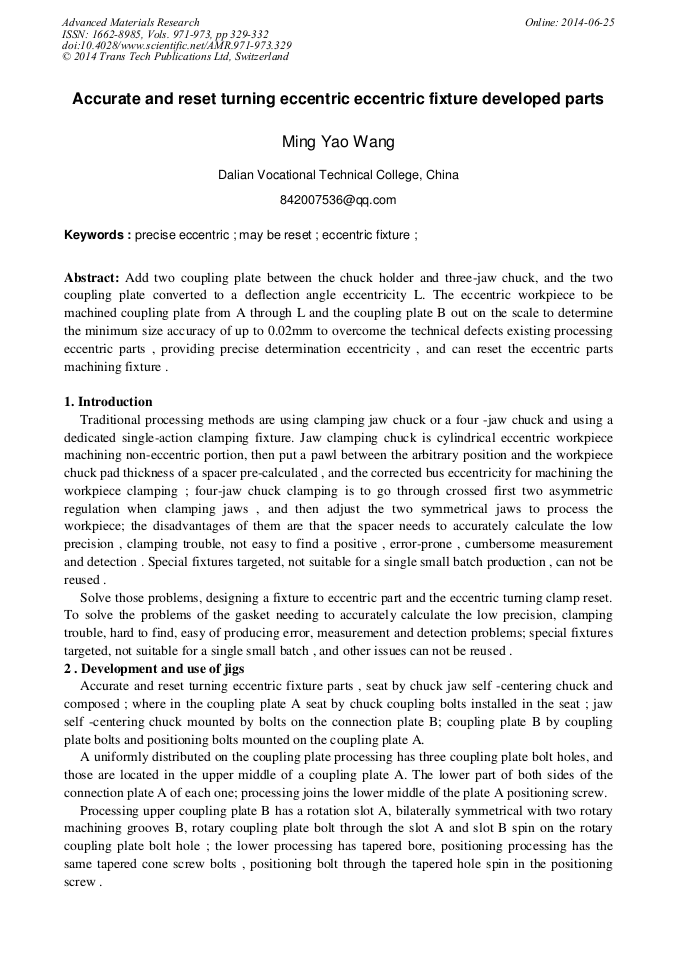

Accurate and Reset Turning Eccentric Eccentric Fixture Developed Parts

Abstract:

Add two coupling plate between the chuck holder and three-jaw chuck, and the two coupling plate converted to a deflection angle eccentricity L. The eccentric workpiece to be machined coupling plate from A through L and the coupling plate B out on the scale to determine the minimum size accuracy of up to 0.02mm to overcome the technical defects existing processing eccentric parts , providing precise determination eccentricity , and can reset the eccentric parts machining fixture .
