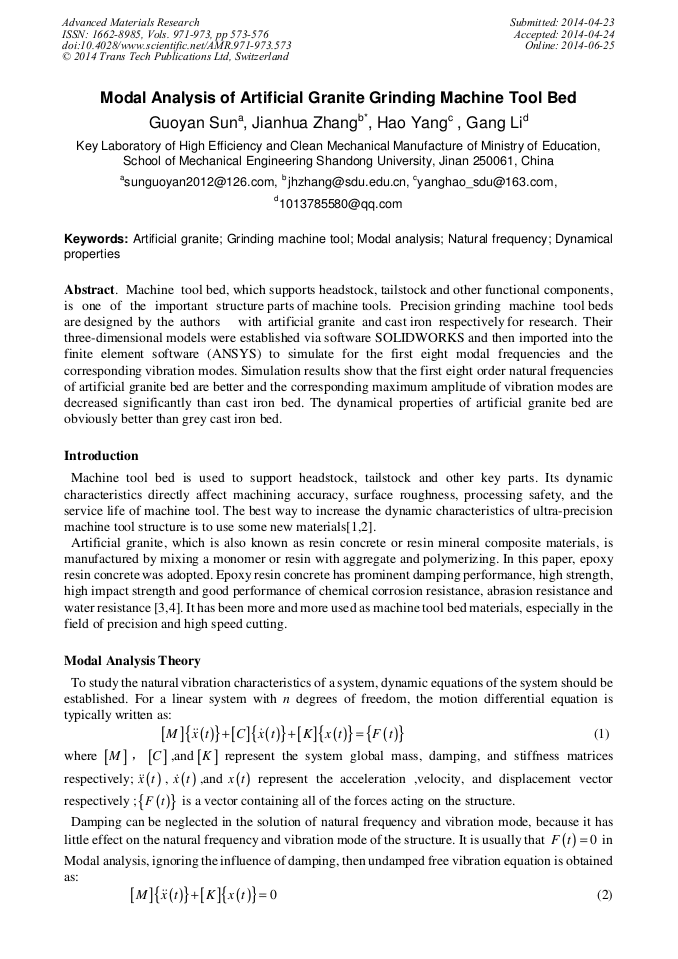

Modal Analysis of Artificial Granite Grinding Machine Tool Bed

Abstract:

Machine tool bed, which supports headstock, tailstock and other functional components, is one of the important structure parts of machine tools. Precision grinding machine tool beds are designed by the authors with artificial granite and cast iron respectively for research. Their three-dimensional models were established via software SOLIDWORKS and then imported into the finite element software (ANSYS) to simulate for the first eight modal frequencies and the corresponding vibration modes. Simulation results show that the first eight order natural frequencies of artificial granite bed are better and the corresponding maximum amplitude of vibration modes are decreased significantly than cast iron bed. The dynamical properties of artificial granite bed are obviously better than grey cast iron bed.

• Periodical: Advanced Materials Research (Volumes 971-973)
• Pages: 573-576
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.971-973.573
• Online since: June 2014
• Authors: Guo Yan Sun, Jian Hua Zhang*, Hao Yang, Gang Li
• Keywords: Artificial Granite, Dynamical Properties, Grinding Machine Tool, Modal Analysis, Natural Frequency

References

[1] Do Suh J. Design and manufacture of hybrid polymer concrete bed for high-speed CNC milling machine[J]. International Journal of Mechanics and Materials in Design, 2008, 4(2): 113-121.

DOI: 10.1007/s10999-007-9033-3

[2] Chang S H, Kim P J, Lee D G, et al. Steel-composite hybrid headstock for high precision grinding machines [J]. Composite structures, 2001, 53(1): 1-8.

DOI: 10.1016/s0263-8223(00)00173-2

[3] Berthelot J M, Assarar M, Sefrani Y, et al. Damping analysis of composite materials and structures[J]. Composite Structures, 2008, 85(3): 189-204.

DOI: 10.1016/j.compstruct.2007.10.024

[4] Kim H S, Park K Y, Lee D G. A study on the epoxy resin concrete for the ultra-precision machine tool bed[J]. Journal of materials processing technology, 1995, 48(1): 649-655.

DOI: 10.1016/0924-0136(94)01705-6

[5] Yi Wang, Juan Li, Kun Song. Dynamic performance analysis of precision grinder bed with polymer[J]. Journal of Chongqing University of science and technology: natural science, 2012, 26(11): 49-53.

[6] Mahdavinejad R. Finite element analysis of machine and workpiece instability in turning[J]. International Journal of Machine Tools and Manufacture, 2005, 45(7): 753-7.

DOI: 10.1016/j.ijmachtools.2004.11.017
