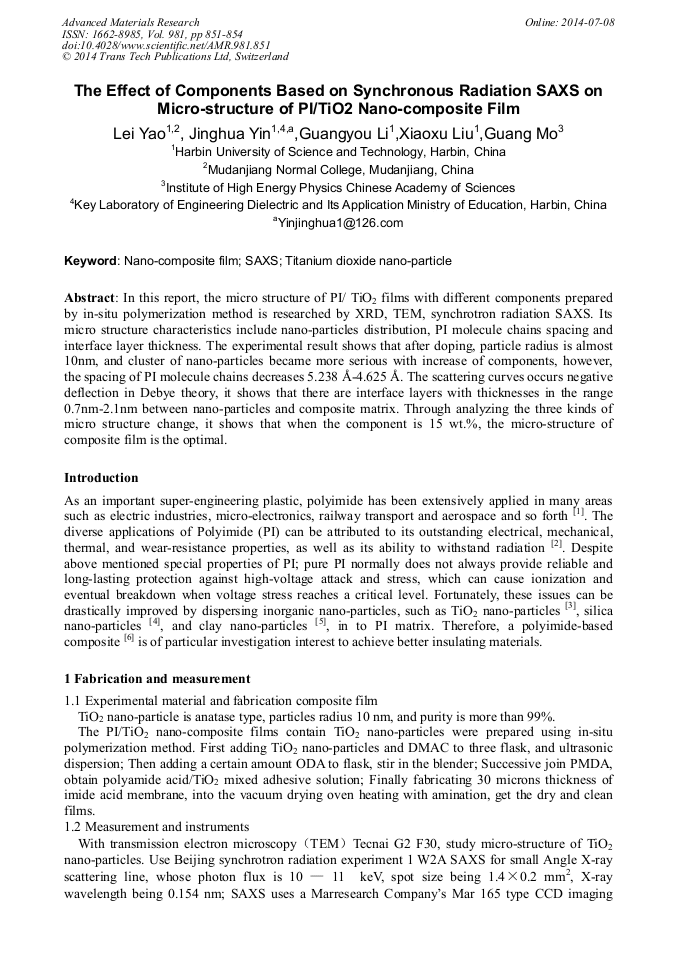

The Effect of Components Based on Synchronous Radiation SAXS on Micro-Structure of PI/TiO₂ Nano-Composite Film

Abstract:

In this report, the micro structure of PI/ TiO₂ films with different components prepared by in-situ polymerization method is researched by XRD, TEM, synchrotron radiation SAXS. Its micro structure characteristics include nano-particles distribution, PI molecule chains spacing and interface layer thickness. The experimental result shows that after doping, particle radius is almost 10nm, and cluster of nano-particles became more serious with increase of components, however, the spacing of PI molecule chains decreases 5.238 Å-4.625 Å. The scattering curves occurs negative deflection in Debye theory, it shows that there are interface layers with thicknesses in the range 0.7nm-2.1nm between nano-particles and composite matrix. Through analyzing the three kinds of micro structure change, it shows that when the component is 15 wt.%, the micro-structure of composite film is the optimal.

• Periodical: Advanced Materials Research (Volume 981)
• Pages: 851-854
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.981.851
• Online since: July 2014
• Authors: Lei Yao, Jing Hua Yin*, Guang You Li, Xiao Xu Liu, Guang Mo
• Keywords: Nano-Composite Film, SAXS, Titanium Dioxide Nano-Particle

References

[1] Xiaoxu Liu, Jinghua Yin, Yunan Kong. Electrical and mechanical property study on three-component polyimide nanocomposite films with titanium TiO2 and MMT[J]. Thin Solid Films. 2013, 544: (352-356).

DOI: 10.1016/j.tsf.2013.02.100

[2] Xiaoxu Liu, Jinghua Yin, Yunan Kong. The property and microstructure study of polyimide/nano-TiO2hybrid films withsandwich structures[J]. Thin Solid Films. 2013, 544: (54-58).

DOI: 10.1016/j.tsf.2013.04.130

[3] Zhiping S., Hui Z., and Yunhong Z. Polyimides: Promising Energy-Storage Materials[J]. Angew. Chem. Int. Ed. 2010, 49(45): 8444 –8448.

DOI: 10.1002/anie.201002439

[4] W. WANG; X. CHEN; Q. CAI; G. MO; Z. J. CHEN, Nuclear Techniques, 2007, 30, 7, 571.

[5] Fuqiang T., Qingquan L., Xuan W., Yi W., Effect of deep trapping states on space charge suppression in polyethylene/ZnO nanocomposite[J]. Apppied Physics Letters, 2011, 99(14): 142903.

DOI: 10.1063/1.3646909

[6] Tjong S.C. Structural and mechanical properties of polymer nanocomposites[J]. Materials Science and Engineering, 2006, 53(3-4): 73-197.

[7] Wang S.F., Wang Y.R., Cheng K. C and Hsaio Y. P, Characteristics of polyimide/barium titanate composite films[J]. Ceram. Inter, 2009, 35(1): 265-68.

DOI: 10.1016/j.ceramint.2007.10.004

[8] Zhiping S., Terrence X., et al. Polymer−Graphene Nanocomposites as Ultrafast-Charge and-Discharge Cathodes for Rechargeable Lithium Batteries[J]. Nano Letters, 2011, 12(5): 2205-2211.

DOI: 10.1021/nl2039666

[9] Zhiping S., Hui Z., and Yunhong Z. Polyimides: Promising Energy-Storage Materials[J]. Angew. Chem. Int. Ed. 2010, 49(45): 8444 –8448.

DOI: 10.1002/anie.201002439

[10] Minghua Chen, Jinghua Yin, Xiaoxu Liu. [J]. Thin Solid Films. 2013, 544: (116-119).
