The Analysis of Photocurrent Multiplication in Organic Dye CuPc Transistor with Wide Wavelength Light

Abstract:

The organic photoelectric transistors using the vacuum evaporation and sputtering process are prepared in this paper. The Cu/CuPc/Al/CuPc/ITO layer based on vertical structure is grown through a CuPc active layer. The CuPc has excellent photosensitivity and it is easy to be fabricated into Short-Channel device with vertical structure. It is shown that I-V characteristics of organic photoelectric transistors are unsaturated. In this experiment the light source is the Bromine-tungsten lamp in the range of 300nm to 800nm. When the light source irradiates the device with V_ec=2V, the operating current is 0.155μA which has been increased to 2.3-3.6 times as compared with the dark state. Therefore, the amplification coefficient of output current I_ec is increasing in irradiation with smaller base voltage. As a result, the current amplification coefficient β is 5.25 and 2.14 with illumination and without illumination respectively.

You might also be interested in these eBooks

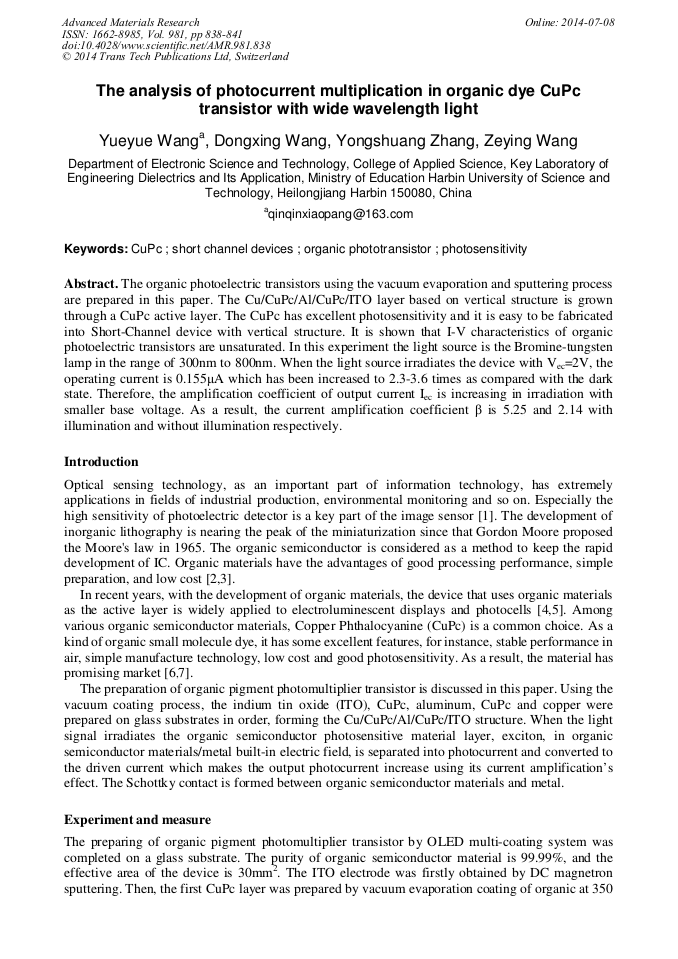

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 981)

Pages:

838-841

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.981.838

Citation:

Cite this paper

Online since:

July 2014

Authors:

Yue Yue Wang*, Dong Xing Wang, Yong Shuang Zhang, Ze Ying Wang

Keywords:

CuPc, Organic Phototransistor, Photosensitivity, Short Channel Devices

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] A. V. Kosinskii, V. R. Matveevskii and A. E. Popov: Measurement Techniques Vol. 33 (1990), p.869.

Google Scholar

[2] ZhenHua Zhang, ZhongQin Yang and JianHui Yuan: Chinese Science Bulletin Vol. 52 (2007), p.3016.

Google Scholar

[3] D Vuillaume, S Lenfant and D Guerin: Pramana Vol. 67 (2006), p.17.

Google Scholar

[4] ZhiGang Li, XinYan Zhao and Xin Lu: Science China Chemistry Vol. 55 (2012), p.553.

Google Scholar

[5] B. Chandar Shekar, Jiyeon Lee and Shi-Woo Rhee: Korean Journal of Chemical Engineering Vol. 21 (2004), p.267.

Google Scholar

[6] A. S. Komolov, E. F. Lazneva and S. A. Pshenichnyuk: Semiconductors Vol. 47 (2013), p.956.

Google Scholar

[7] Jun Huang, Mingtian Li and Yan Tang: Journal of Wuhan University of Technology-Mater. Sci. Ed. Vol. 23 (2008), p.606.

Google Scholar

[8] David J. Gundlach: Electrical Behavior of Organic Transistors and Circuits (Organic and Molecular Electronics, US 2004).

Google Scholar

[9] Bernd Schmidt: Ion Beams in Materials Processing and Analysis (Springer Vienna, Germany 2013).

Google Scholar
