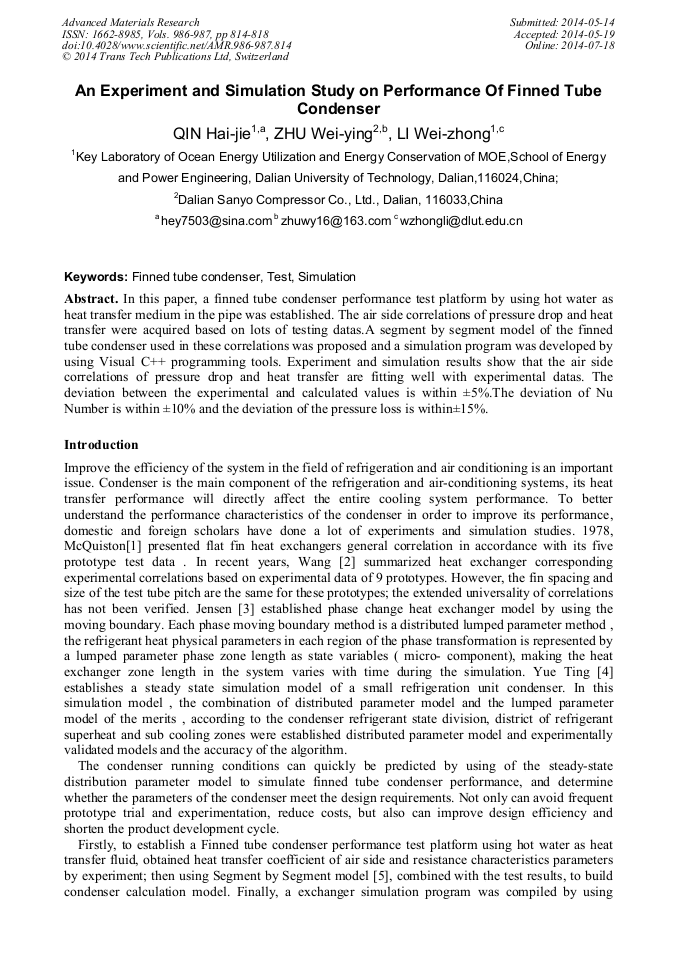

An Experiment and Simulation Study on Performance of Finned Tube Condenser

Abstract:

In this paper, a finned tube condenser performance test platform by using hot water as heat transfer medium in the pipe was established. The air side correlations of pressure drop and heat transfer were acquired based on lots of testing datas.A segment by segment model of the finned tube condenser used in these correlations was proposed and a simulation program was developed by using Visual C++ programming tools. Experiment and simulation results show that the air side correlations of pressure drop and heat transfer are fitting well with experimental datas. The deviation between the experimental and calculated values is within ±5%.The deviation of Nu Number is within ±10% and the deviation of the pressure loss is within±15%.

• Periodical: Advanced Materials Research (Volumes 986-987)
• Pages: 814-818
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.986-987.814
• Online since: July 2014
• Authors: Hai Jie Qin*, Wei Ying Zhu, Wei Zhong Li
• Keywords: Finned Tube Condenser, Simulation, Test

References

[1] F.C. McQuiston, Heat mass and momentum transfer data for five plate-fin tube transfer surface, ASHRAE Transactions, 1978, 84(1), 266-293.

[2] Wang C C, Hsieh Y, Lin Y. Performance of plate finned tube heat exchangers under dehumidifying conditions [J]. Journal of Heat Transfer, 1997, 119(1): 109-117.

DOI: 10.1115/1.2824075

[3] Jensen J M, Knudsen H J H. A new moving boundary model for transient simulations of dry-expansion evaporators[C], Proceedings of the 15th International Conference on Efficiency, Costs, Optimization, Simulation and Environmental Impact of Energy Systems. (2002).

[4] Yue Ting, Liu Chu-yun, Chen Guo-dong, Xu Lin. Study on Simulation and Experiment of Little Scale Refrigeration Device Condenser [J]. Gryogenics. 2005, (5): 46-48.

[5] P.A. Domanski, EVAP-COND, simulation models for finned tube heat exchangers, National Institute of Standards and Technology Building and Fire Research Laboratory, Gaithersburg, MD, USA, (2003).

[6] Wang H S, Rose J W, Honda H. Condensation of refrigerants in horizontal microfin tubes: comparison of correlations for frictional pressure drop [J]. International journal of refrigeration, 2003, 26(4): 461-472.

DOI: 10.1016/s0140-7007(02)00159-7

[7] NIST Reference Fluid Thermodynamic and Transport Properties—REFPROP Version 8. 0 User's Guide, (2007).

[8] Goto M, Inoue N, Yonemoto R. Condensation heat transfer of R410A inside internally grooved horizontal tubes[J]. International journal of refrigeration, 2003, 26(4): 410-416.

DOI: 10.1016/s0140-7007(02)00153-6
