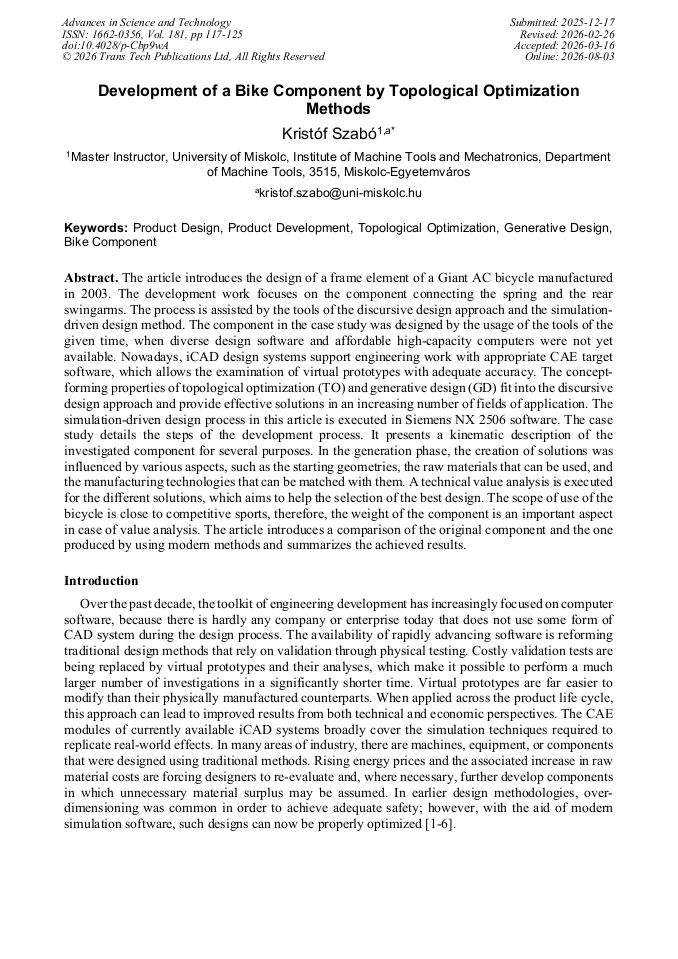

Development of a Bike Component by Topological Optimization Methods

Abstract:

The article introduces the design of a frame element of a Giant AC bicycle manufactured in 2003. The development work focuses on the component connecting the spring and the rear swingarms. The process is assisted by the tools of the discursive design approach and the simulation-driven design method. The component in the case study was designed by the usage of the tools of the given time, when diverse design software and affordable high-capacity computers were not yet available. Nowadays, iCAD design systems support engineering work with appropriate CAE target software, which allows the examination of virtual prototypes with adequate accuracy. The concept-forming properties of topological optimization (TO) and generative design (GD) fit into the discursive design approach and provide effective solutions in an increasing number of fields of application. The simulation-driven design process in this article is executed in Siemens NX 2506 software. The case study details the steps of the development process. It presents a kinematic description of the investigated component for several purposes. In the generation phase, the creation of solutions was influenced by various aspects, such as the starting geometries, the raw materials that can be used, and the manufacturing technologies that can be matched with them. A technical value analysis is executed for the different solutions, which aims to help the selection of the best design. The scope of use of the bicycle is close to competitive sports, therefore, the weight of the component is an important aspect in case of value analysis. The article introduces a comparison of the original component and the one produced by using modern methods and summarizes the achieved results.

• Periodical: Advances in Science and Technology (Volume 181)
• Pages: 117-125
• DOI: https://doi.org/10.4028/p-Cbp9wA
• Online since: August 2026
• Authors: Kristóf Szabó*
• Keywords: Bike Component, Generative Design, Product Design, Product Development, Topological Optimization

References

[1] Némethné Erdődi, K. (2009): Terméktervezési módszerek minőségügyi fejlesztése. PhD értekezés. NymE – CJDI. pp.20-29.

[2] Bercsey, T.; Döbröczöni, Á.; Dupcsák, ZS.; Horák, P.; Kamondi, L.; Kelemen. T.; Péter, J.; Tóth, J. (1997): Terméktervezés és fejlesztés, PHARE TDQM, Budapest

[3] Takács Gy., Zsiga Z., Szabóné M. I., Hegedős Gy. (2011): Gyártóeszközök módszeres tervezése, Nemzeti Tankönyvkiadó, Miskolc

[4] Bercsey, T.; Horváth, I.: A korszerű géptervezés feltételei, módszerei és eszközrendszere, GÉP, Vol. 37., No 11., 1985.

[5] Brandenberger, M., Kehl, G. (2004): Coupled Simulation using FEM, MBS and Control Simulation Tools using the Example of a Machine Tool. In: Proceedings of the NAFEMS Seminar Mechatronics in Structural Analysis, Wiesbaden

[6] Keller, K., Kehl, G. (2006): Coupled FE Analysis of Structure and Control of High Dynamic Machine Tools considering the Machining Centre HELLER MCH 250 as an Example. In: Proceedings of the PERMAS Users Conference, Strasbourg.

[7] All3DP (2022): The best generative design software of 2022. https:// all3dp. com/1/ the- best- gener ative- design- softw are- of-2022/. Accessed 17 Nov 2022.

[8] Autodesk Inc (2022): Product documentation. https:// help. autod esk. com/ view/ fusio n360/ ENU/? guid= GUID- 4EB16 696- 8951-47BC- 8F15- 10E61 4D899 4F.

[9] Zhang Y., Wang Z., Zhang Y., Gomes S., Bernard A. (2020): Bioinspired generative design for support structure generation and optimization in additive manufacturing (AM). CIRP Ann 69(1):117–120. https:// doi. org/ 10. 1016/j. cirp. 2020. 04. 091.

DOI: 10.1016/j.cirp.2020.04.091

[10] Bagassi S., Lucchi F., De Crescenzio F., Persiani F. (2016): Generative design: advanced design optimization processes for aeronautical applications. In: 30th Congress of the International Council of the Aeronautical Sciences, ICAS 2016.

[11] Shea K., Aish R., Gourtovaia M. (2005): Towards integrated performance-driven generative design tools. Autom Constr 14(2):253–264. https:// doi. org/ 10. 1016/j. autcon. 2004. 07. 002.

DOI: 10.1016/j.autcon.2004.07.002

[12] Rubaiat, H. K., Grossman, T., Cheong, H., Hashemi, A., Fitzmaurice, G., DreamSketch (2017): Early stage 3D design explorations with sketching and generative design., UIST 2017 - Proceedings of the 30th Annual ACM Symposium on User Interface Software and Technology. Association for Computing Machinery 401–414. https://doi. org/10.1145/31265 94.31266 62.

DOI: 10.1145/3126594.3126662

[13] Karlberg, M., Löfstrand, M., Sandberg, S., Lundin, M. (2013): State of the art in simulation-driven design. Int J of Product Development 18:68–87. https:// doi. org/ 10. 1504/ IJPD. 2013. 052166.

DOI: 10.1504/ijpd.2013.052166

[14] GIANT Bicycles, AC Owner's Manual, 2003.
