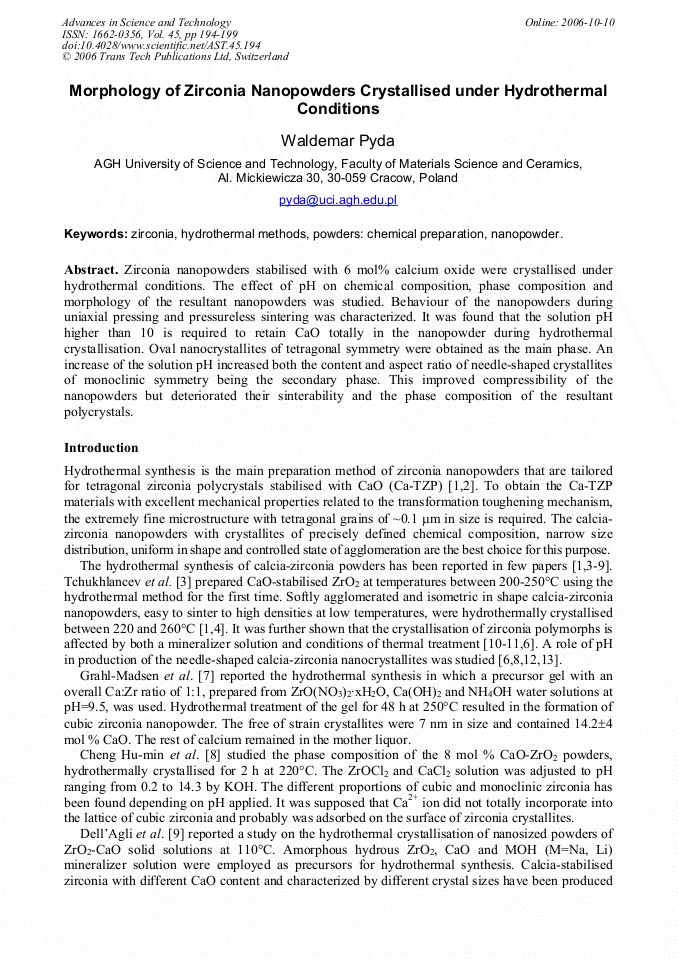

Morphology of Zirconia Nanopowders Crystallised under Hydrothermal Conditions

Abstract:

Zirconia nanopowders stabilised with 6 mol% calcium oxide were crystallised under hydrothermal conditions. The effect of pH on chemical composition, phase composition and morphology of the resultant nanopowders was studied. Behaviour of the nanopowders during uniaxial pressing and pressureless sintering was characterized. It was found that the solution pH higher than 10 is required to retain CaO totally in the nanopowder during hydrothermal crystallisation. Oval nanocrystallites of tetragonal symmetry were obtained as the main phase. An increase of the solution pH increased both the content and aspect ratio of needle-shaped crystallites of monoclinic symmetry being the secondary phase. This improved compressibility of the nanopowders but deteriorated their sinterability and the phase composition of the resultant polycrystals.

• Periodical: Advances in Science and Technology (Volume 45)
• Pages: 194-199
• DOI: https://doi.org/10.4028/www.scientific.net/AST.45.194
• Online since: October 2006
• Authors: Waldemar Pyda
• Keywords: Chemical Preparation, Hydrothermal Method, Nanopowder, Powder, Zirconia

References

[1] W. Pyda and K. Haberko, Ceramics Int. Vol. 13 (1987) p.113.

[2] R. Pampuch, W. Pyda and K. Haberko, Ceramics Int. Vol. 14 (1988), pp.245-249.

[3] W. G. Tchukhlancev and J. M. Galkin, Zh. Neorg. Khim. Vol. 14 (1969) p.311.

[4] K. Haberko and W. Pyda, in Science and Technology of Zirconia II, Vol. 12, N. Claussen, M. Rühle and A. H. Heuer Eds, (The American Ceramic Society, Columbus, Ohio, 1984) p.774.

[5] E. P. Stambaugh, J. H. Adair, W. Sekercioglu and R. R. Wills, US Patent no. 4, 619, 817 (1986).

[6] W. Pyda, K. Haberko and M. M. Bućko, J. Am. Ceram. Soc. Vol. 74 (1991), p.2622.

[7] L. Grahl-Madsen, R. E. Riman, in Ceramic Powder Science III, G. L. Messing, Shin-ichi Hirano and H. Hausner Eds, (The American Ceramic Society, Inc. Westerville, Ohio, 1990), p.33.

[8] Cheng Hu-min, Wu Li-jun, Ma Ji-ming, Zhang Zhi-ying and Qi Li-min, J. Eur. Cer. Soc. Vol. 19 (1999), p.1675.

[9] G. Dell'Agli and G. Mascolo, J. Mater. Sci. Vol. 35 (2000), p.661.

[10] T. Mitsuhashi, M. Ichihara and U. Tatsuke, J. Am. Ceram. Soc. Vol. 57 (1974), p.97.

[11] E. Tani, M. Yoshimura and S. Somiya, J. Am. Ceram. Soc. Vol. 66 (1974), p.97.

[12] W. Pyda, Bull. Pol. Ac.: Tech. Vol. 47 (1999), p.397.

[13] W. Pyda, N. Moskała and A. Pyda, in Proceedings of 10 th International Ceramics Congress, Part B, P. Vincenzini Ed., (Techna s. r. l., Italy, 2002), p.41.

[14] D. L. Porter and A. H. Heuer, J. Am. Ceram. Soc. Vol. 62 (1979), p.298.

[15] J. H. Adair, R.P. Denkewicz, F. J. Arriagada, K. Osseo-Asare, in Ceramic Powder Science II, G. L. Messing, E. R. Fuller and H. Hausner Eds, (The American Ceramic Society, Inc. Westerville, Ohio, 1988), p.135.

[16] W. Pyda, M. S. Gani and L. H. Chen, in Science and Technology of Zirconia V, S. P. S. Badwal, M. J. Bannister and R. H. J. Hannink Eds, (Technomic Publishing Co., Inc., Lancaster, Basel, 1993), p.223.

[17] E. Tani, M. Yoshimura and S. Somiya, J. Am. Ceram. Soc. Vol. 66 (1983), p.11.

[18] M. M. Bućko, K. Haberko and M. Faryna, J. Am. Ceram. Soc. Vol. 78 (1995), p.3397.

[19] H. Nishizawa, N. Yamasaki, K. Matsuoka and H. Mitsushio, J. Am. Ceram. Soc. Vol. 65 (1982), p.343.
