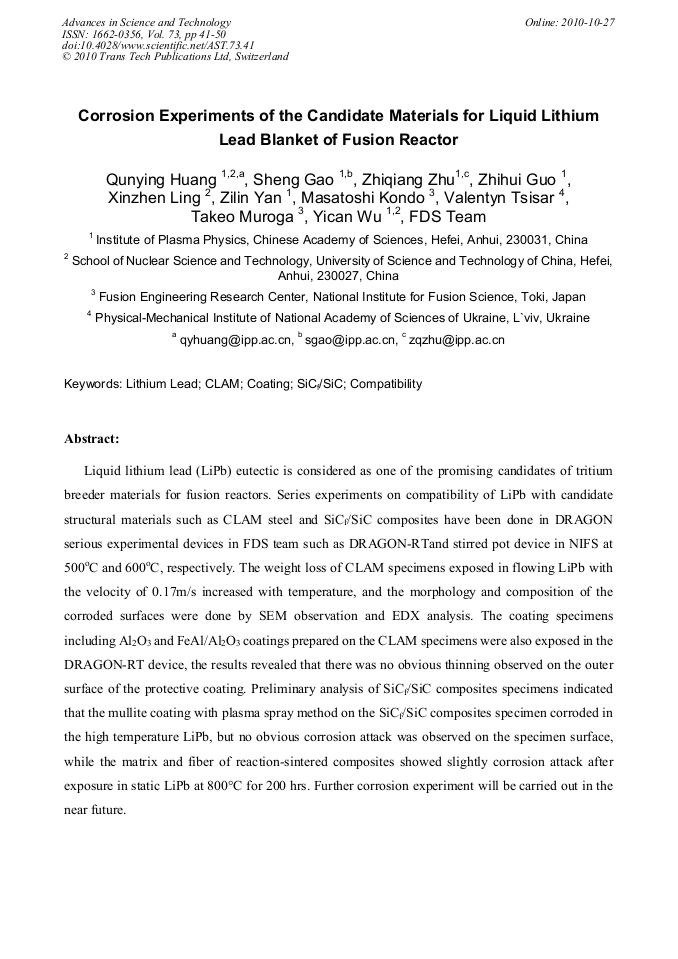

Corrosion Experiments of the Candidate Materials for Liquid Lithium Lead Blanket of Fusion Reactor

Abstract:

Liquid lithium lead (LiPb) eutectic is considered as one of the promising candidates of tritium breeder materials for fusion reactors. Series experiments on compatibility of LiPb with candidate structural materials such as CLAM steel and SiC f/SiC composites have been done in DRAGON serious experimental devices in FDS team such as DRAGON-RTand stirred pot device in NIFS at 500 oC and 600oC, respectively. The weight loss of CLAM specimens exposed in flowing LiPb with the velocity of 0.17m/s increased with temperature, and the morphology and composition of the corroded surfaces were done by SEM observation and EDX analysis. The coating specimens including Al 2O3 and FeAl/Al2O3 coatings prepared on the CLAM specimens were also exposed in the DRAGON-RT device, the results revealed that there was no obvious thinning observed on the outer surface of the protective coating. Preliminary analysis of SiC f/SiC composites specimens indicated that the mullite coating with plasma spray method on the SiC f/SiC composites specimen corroded in the high temperature LiPb, but no obvious corrosion attack was observed on the specimen surface, while the matrix and fiber of reaction-sintered composites showed slightly corrosion attack after exposure in static LiPb at 800°C for 200 hrs. Further corrosion experiment will be carried out in the near future.

• Periodical: Advances in Science and Technology (Volume 73)
• Pages: 41-50
• DOI: https://doi.org/10.4028/www.scientific.net/AST.73.41
• Online since: October 2010
• Authors: Qun Ying Huang, Sheng Gao, Zhi Qiang Zhu, Zhi Hui Guo, Xin Zhen Ling, Zi Lin Yan, Masatoshi Kondo, Valentyn Tsisar, Takeo Muroga, Yi Can Wu
• Keywords: CLAM, Coating, Compatibility, Lithium Lead, SiC_f, Silicon Carbide (SiC)

References

[1] Y. Wu, FDS team. Conceptual Design Activities of FDS Series Fusion Power Plants in China, Fusion Eng. Des., 81 (2006) 2713-2718.

DOI: 10.1016/j.fusengdes.2006.07.068

[2] Y. Wu, et al., FDS team. Design Status and Development Strategy of China Liquid Lithium-Lead Blankets and Related Material Technology, J. Nucl. Mater., 367-370 (2007) 1410-1415.

DOI: 10.1016/j.jnucmat.2007.04.031

[3] Y. Wu, FDS team, Design Concept and Testing Strategy of a Dual Functional Lithium Lead Test Blanket Module in ITER and EAST, Nucl. Fusion 47 (2007) 1533-1539.

DOI: 10.1088/0029-5515/47/11/015

[4] Y. Wu, FDS team, Design Analysis of the China Dual-Functional Lithium Lead (DFLL) Test Blanket Module in ITER, Fusion Eng. Des., 82 (2007) 1893-(1903).

DOI: 10.1016/j.fusengdes.2007.08.012

[5] Q. Huang, C. Li, Y. Li, et al., Progress in Development of China Low Activation Martensitic Steel for Fusion Application, J. Nucl. Mater., 367-370 (2007) 142-146.

DOI: 10.1016/j.jnucmat.2007.03.153

[6] Q. Huang, Y. Wu, J. Li, et al., Status and Strategy of Fusion Materials Development in China, J. Nucl. Mater., 386-388 (2009) 400-404.

[7] R. Jones, L. Giancarli, A. Hasegawa. Promise and Challenges of SiCf/SiC Composites for Fusion Energy Applications, J. Nucl. Mater., 307-311 (2002) 1057-1072.

DOI: 10.1016/s0022-3115(02)00976-5

[8] D. Levchuk, F. Koch, H. Maier, et al., Deuterium Permeation through Eurofer & a-alumina Coated Eurofer, J. Nucl. Mater., 328 (2004) 103-106.

DOI: 10.1016/j.jnucmat.2004.03.008

[9] D. Smith, J. Konys, T. Muroga, et al., Development of Coatings for Fusion Power Applications, J. Nucl. Mater., 307-311 (2002) 1314-1322.

DOI: 10.1016/s0022-3115(02)00985-6

[10] A. Perujo, K.S. Forcey, T. Sample, Reduction of Deuterium Permeation through DIN 1. 4914 Stainless Steel by Plasma-spray Deposited Aluminium, J. Nucl. Mater., 1993 (207) 83-86.

DOI: 10.1016/0022-3115(93)90249-x

[11] M. Kondo, T. Nagasaka, V. Tsisar, et al., Corrosion of Reduced Activation Ferritic Martensitic Steel JLF-1 in Purified Flinak at Static and Flowing Conditions, Fusion Eng. Des. (2010), doi: 10. 1016/ j. fusengdes. 2010. 03. 064.

DOI: 10.1016/j.fusengdes.2010.03.064

[12] B. Pint, J. Moser, P. Tortorelli. Investigation of Pb-Li Compatibility Issues for the Dual Coolant Blanket Concept, J. Nucl. Mater., 367-370 (2007) 1150-1154.

DOI: 10.1016/j.jnucmat.2007.03.206

[13] Z. Zhu, Q. Huang, S. Gao, et al. Preliminary Experiment on Compatibility of SiCf/SiC Composites in Static Liquid LiPb at 700oC, Fusion Eng. Des., 84 (2009) 2048-(2051).

DOI: 10.1016/j.fusengdes.2009.01.054
