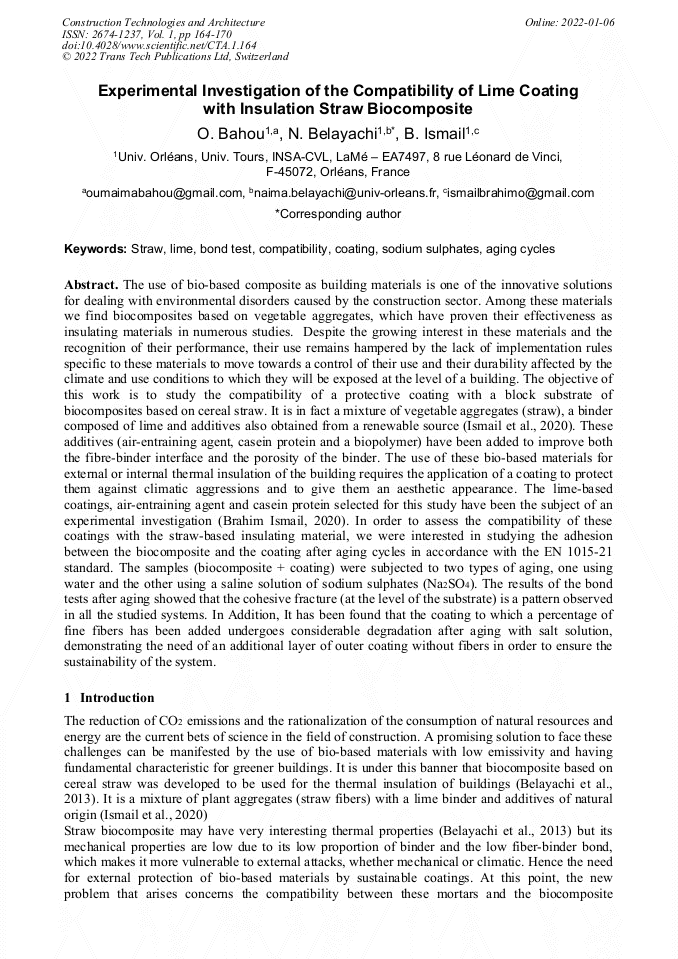

Experimental Investigation of the Compatibility of Lime Coating with Insulation Straw Biocomposite

Abstract:

The use of bio-based composite as building materials is one of the innovative solutions for dealing with environmental disorders caused by the construction sector. Among these materials we find biocomposites based on vegetable aggregates, which have proven their effectiveness as insulating materials in numerous studies. Despite the growing interest in these materials and the recognition of their performance, their use remains hampered by the lack of implementation rules specific to these materials to move towards a control of their use and their durability affected by the climate and use conditions to which they will be exposed at the level of a building. The objective of this work is to study the compatibility of a protective coating with a block substrate of biocomposites based on cereal straw. It is in fact a mixture of vegetable aggregates (straw), a binder composed of lime and additives also obtained from a renewable source (Ismail et al., 2020). These additives (air-entraining agent, casein protein and a biopolymer) have been added to improve both the fibre-binder interface and the porosity of the binder. The use of these bio-based materials for external or internal thermal insulation of the building requires the application of a coating to protect them against climatic aggressions and to give them an aesthetic appearance. The lime-based coatings, air-entraining agent and casein protein selected for this study have been the subject of an experimental investigation (Brahim Ismail, 2020). In order to assess the compatibility of these coatings with the straw-based insulating material, we were interested in studying the adhesion between the biocomposite and the coating after aging cycles in accordance with the EN 1015-21 standard. The samples (biocomposite + coating) were subjected to two types of aging, one using water and the other using a saline solution of sodium sulphates (Na₂SO₄). The results of the bond tests after aging showed that the cohesive fracture (at the level of the substrate) is a pattern observed in all the studied systems. In Addition, It has been found that the coating to which a percentage of fine fibers has been added undergoes considerable degradation after aging with salt solution, demonstrating the need of an additional layer of outer coating without fibers in order to ensure the sustainability of the system.

• Periodical: Construction Technologies and Architecture (Volume 1)
• Pages: 164-170
• DOI: https://doi.org/10.4028/www.scientific.net/CTA.1.164
• Online since: January 2022
• Authors: Oumayma Bahou, Naima Belayachi*, Brahim Ismail
• Keywords: Aging Cycles, Bond Test, Coating, Compatibility, Lime, Sodium Sulphates, Straw

References

[1] Belayachi N.. Bouasker, M.. Hoxha D., Al-Mukhtar M., 2013. Thermo-mechanical behaviour of an innovant straw lime composite for thermal applications. Applied Mechanics and Materials Col. 390.

DOI: 10.4028/www.scientific.net/amm.390.542

[2] Brahim Ismail 2020. Contribution to the development and optimization of a protective biobased-coated composite system for thermal insulation of buildings. (PhD Thesis) University of Orleans. Orleans, France.

[3] EN 1015 12: 2016. Test method for masonry mortars - Part 12: Determination of the adhesion of hardened plaster mortars applied to substrates,.

[4] EN 1015 21: 2003. Test method for masonry mortars - Part 21: Determination of compatibility of single-layer exterior rendering mortars with substrates,.

[5] Farinha C., De Brito J., Veiga R., 2015. « Incorporation of fine sanitary ware aggregates in coating mortars». Construction and Building Materials 83. 194–206.

DOI: 10.1016/j.conbuildmat.2015.03.028

[6] Ismail B.,. Belayachi N., Hoxha D., 2020. Optimizing performance of insulation materials based on wheat straw. lime and gypsum plaster composites using natural additives. Construction and Building Materials. 254 (118959).

DOI: 10.1016/j.conbuildmat.2020.118959

[7] Silva. J., De Brito J., . R. Veiga R., 2009. « Incorporation of fine ceramics in mortars». Construction and Building Materials 23. 556–564.

DOI: 10.1016/j.conbuildmat.2007.10.014

[8] R. Oliveira R., . J. De Brito J., R. Veiga R.,2013.. « Incorporation of fine glass aggregates in renderings». Construction and Building Materials 44. 329–341.

DOI: 10.1016/j.conbuildmat.2013.03.042
