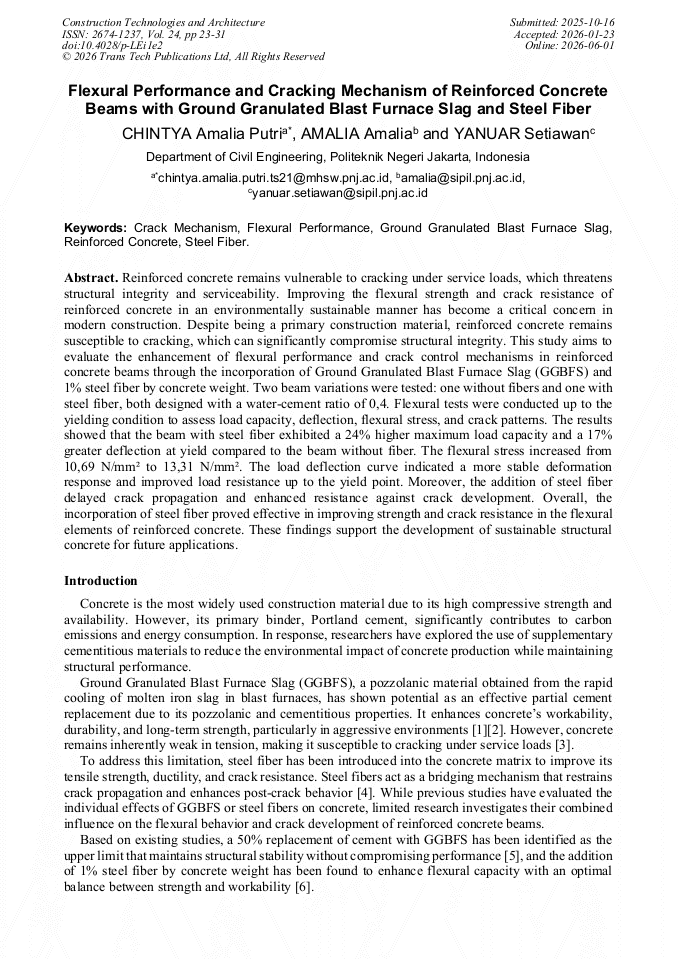

Flexural Performance and Cracking Mechanism of Reinforced Concrete Beams with Ground Granulated Blast Furnace Slag and Steel Fiber

Abstract:

Reinforced concrete remains vulnerable to cracking under service loads, which threatens structural integrity and serviceability. Improving the flexural strength and crack resistance of reinforced concrete in an environmentally sustainable manner has become a critical concern in modern construction. Despite being a primary construction material, reinforced concrete remains susceptible to cracking, which can significantly compromise structural integrity. This study aims to evaluate the enhancement of flexural performance and crack control mechanisms in reinforced concrete beams through the incorporation of Ground Granulated Blast Furnace Slag (GGBFS) and 1% steel fiber by concrete weight. Two beam variations were tested: one without fibers and one with steel fiber, both designed with a water-cement ratio of 0,4. Flexural tests were conducted up to the yielding condition to assess load capacity, deflection, flexural stress, and crack patterns. The results showed that the beam with steel fiber exhibited a 24% higher maximum load capacity and a 17% greater deflection at yield compared to the beam without fiber. The flexural stress increased from 10,69 N/mm² to 13,31 N/mm². The load deflection curve indicated a more stable deformation response and improved load resistance up to the yield point. Moreover, the addition of steel fiber delayed crack propagation and enhanced resistance against crack development. Overall, the incorporation of steel fiber proved effective in improving strength and crack resistance in the flexural elements of reinforced concrete. These findings support the development of sustainable structural concrete for future applications.

• Periodical: Construction Technologies and Architecture (Volume 24)
• Pages: 23-31
• DOI: https://doi.org/10.4028/p-LEi1e2
• Online since: June 2026
• Authors: Chintya Amalia Putri, Amalia Amalia*, Yanuar Setiawan
• Keywords: Crack Mechanism, Flexural Performance, Ground Granulated Blast Furnace Slag, Reinforced Concrete, Steel Fiber

References

[1] S. P. Dyavappanavar et al., "Enhancing Concrete Performance: Utilizing Industrial Waste GGBFS as an Admixture in Self-Compacting Concrete," Journal of Applied Engineering Sciences, vol. 14, no. 2, p.246–251, Dec. 2024.

DOI: 10.2478/jaes-2024-0030

[2] S. M. Miralami, S. H. Ziabari, and M. R. Esfahani, "The Effect of GGBFS with Steel and Carbon Fibers on the Mechanical Properties and Durability of Concrete," 2023.

[3] C. Zao, Z. Wang, Z. Zhu, and R. Zhao, "Research on different types of fiber reinforced concrete in recent years: An overview," Constr Build Mater, vol. 365, no. 130075, Feb. 2023.

DOI: 10.1016/j.conbuildmat.2022.130075

[4] Md. R. Chowdhury and D. Mondal, "Flexural Behavior of Recycled Aggregate Concrete Beam with Varying Dosage of Steel Fiber," Journal of Engineering Research and Reports, vol. 26, no. 12, p.141–152, Dec. 2024.

DOI: 10.9734/jerr/2024/v26i121347

[5] Y. J. Lee, H. G. Kim, and K. H. Kim, "Effect of ground granulated blast furnace slag replacement ratio on structural performance of precast concrete beams," Materials, vol. 14, no. 23, Dec. 2021.

DOI: 10.3390/ma14237159

[6] Y. Tan, C. Zhou, and J. Zhou, "Influence of the Steel Fiber Content on the Flexural Fatigue Behavior of Recycled Aggregate Concrete," Advances in Civil Engineering, vol. 2020, 2020.

DOI: 10.1155/2020/8839271

[7] X. Yuan, R. Huo, and X. Zhang, "Experimental study on flexural mechanical properties of steel fiber reinforced alkali-activated slag concrete beams," Front Phys, vol. 12, 2024.

DOI: 10.3389/fphy.2024.1361605

[8] ASTM International, ASTM C33/C33M-18 : Standard Specification for Concrete Aggregates. United States of America: https://store.astm.org/c0033_c0033m-18.html, 2023.

[9] SNI 2052:2017, "SNI 2052:2017 Baja Tulangan Beton," (2017)

DOI: 10.33322/terang.v1i2.437

[10] H. H. Z. Khalel et al., "Parametric study for optimizing fiber-reinforced concrete properties," Structural Concrete, vol. 26, no. 1, p.88–110, Feb. 2025.

DOI: 10.1002/suco.202300509

[11] ASTM International, ASTM A820-01 : Standard Specification for Steel Fibers for Fiber-Reinforced Concrete. United States of America: https://store.astm.org/a0820-01.html, 2021.

[12] ASTM International, ASTM C494/C494M-24 : Standard Specification for Chemical Admixtures for Concrete. United States of America: https://store.astm.org/c0494_c0494m-24.html, 2024.

DOI: 10.14359/51684228

[13] SNI 7656:2012, "SNI 7656:2012 Tata cara pemilihan campuran untuk beton normal, beton berat dan beton massa ," (2012)

DOI: 10.29103/tj.v6i1.67

[14] EFNARC, "Specification and Guidelines for Self-Compacting Concrete," 2002. [Online]. Available: www.efnarc.org

[15] Badan Standarisasi Nasional, "SNI 2847-2019 Persyaratan Beton Struktural untuk Bangunan Gedung dan Penjelasan," (2019)

DOI: 10.31848/arcade.v1i1.10

[16] Badan Standarisasi Nasional, "SNI 4431:2011 Cara Uji Kuat Lentur Beton Normal dengan Dua Titik Pembebanan," (2011)

[17] R. A. Shirke, "Effect on Flexural Strength of Steel Fiber Reinforced Self Compacting Concrete," 2022.

[18] F. Koksal, K. Srinivasa, Z. Babayev, and M. Kaya, "Effect of Steel Fibres on Flexural Toughness of Concrete and RC Beams," Arab J Sci Eng, Dec. 2021.

DOI: 10.1007/s13369-021-06113-5

[19] J. Ahmad, R. Nasr, S. Al-Dala'ien, A. Manan, O. Zaid, and M. Ahmad, "Evaluating the Effects of Flexure Cracking Behaviour of Beam Reinforced with Steel Fibres from Environment Affect," 2020.
