Energy Dissipation in Laminated Bamboo Hollow Section Beam and Column Connection Using Glued-In Rod and Bracket

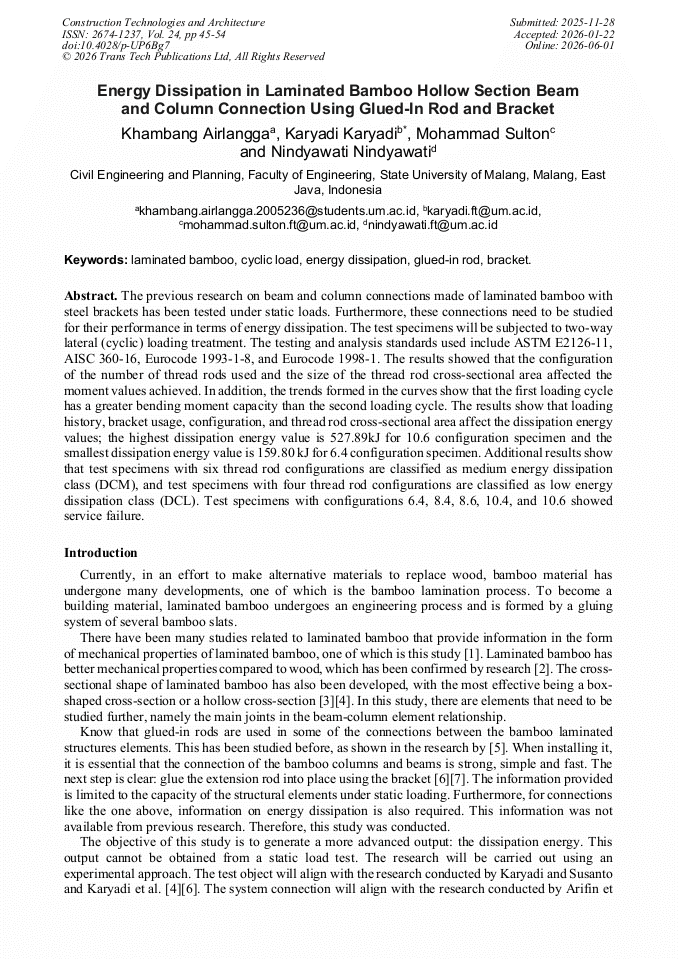

Article Preview

Abstract:

The previous research on beam and column connections made of laminated bamboo with steel brackets has been tested under static loads. Furthermore, these connections need to be studied for their performance in terms of energy dissipation. The test specimens will be subjected to two-way lateral (cyclic) loading treatment. The testing and analysis standards used include ASTM E2126-11, AISC 360-16, Eurocode 1993-1-8, and Eurocode 1998-1. The results showed that the configuration of the number of thread rods used and the size of the thread rod cross-sectional area affected the moment values achieved. In addition, the trends formed in the curves show that the first loading cycle has a greater bending moment capacity than the second loading cycle. The results show that loading history, bracket usage, configuration, and thread rod cross-sectional area affect the dissipation energy values; the highest dissipation energy value is 527.89kJ for 10.6 configuration specimen and the smallest dissipation energy value is 159.80 kJ for 6.4 configuration specimen. Additional results show that test specimens with six thread rod configurations are classified as medium energy dissipation class (DCM), and test specimens with four thread rod configurations are classified as low energy dissipation class (DCL). Test specimens with configurations 6.4, 8.4, 8.6, 10.4, and 10.6 showed service failure.

You might also be interested in these eBooks
The 5th International Conference on Green Civil and Environmental Engineering (GCEE) View Preview

Info:

Periodical:

Construction Technologies and Architecture (Volume 24)

Pages:

45-54

DOI:

https://doi.org/10.4028/p-UP6Bg7

Citation:

Cite this paper

Online since:

June 2026

Authors:

Khambang Airlangga, Karyadi Karyadi*, Mohammad Sulton, Nindyawati Nindyawati

Keywords:

Bracket, Cyclic Load, Energy Dissipation, Glued-In Rod, Laminated Bamboo

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] N. I. S. Hermanto, I. Satyarno, D. Sulistyo, and T. A. Prayitno, "Sifat Mekanika Bambu Petung Laminasi," Dinamika Rekayasa, vol. 10, no. 1, Feb. 2014.

Google Scholar

[2] I. GL. B. Eratodi, "Teknologi Bambu Laminasi Sebagai Material Ramah Lingkungan Tahan Gempa," Konferensi Nasional Teknik Sipil (KoNTekS), vol. 4, Jun. 2010.

DOI: 10.62603/konteks.v1i6.126

Google Scholar

[3] Karyadi, S. M. Dewi, and A. S. MD, "A Comparison of Shear Strength of Box-section Beam Made of Sliced-laminated Dendrocalamus Asper Under Torsion and Transversal Load," Procedia Eng., vol. 95, p.38–42, 2014.

DOI: 10.1016/j.proeng.2014.12.163

Google Scholar

[4] Karyadi and P. B. Susanto, "Mechanical characteristics of box-section beam made of sliced-laminated Asian bamboo (Dendrocalamus asper) in bending failure mode under transversal load," 2017, p.020062.

DOI: 10.1063/1.5003545

Google Scholar

[5] K. Karyadi, B. Prayogo, N. Nindyawati, and P. B. Susanto, "Pull-out Resistance Parallel to Grain of Threaded Steel Rod Glued-in Glubam with Edge Distance Variation," Research Journal of Applied Sciences, Engineering and Technology, vol. 17, no. 1, p.1–6, Feb. 2020.

DOI: 10.19026/rjaset.17.6027

Google Scholar

[6] Karyadi, R. Aprilianto, Nindyawati, and Andoko, "Laminated bamboo hollow section beam and column connection using glued-in rod and channel: Numerical study," 2023, p.020013.

DOI: 10.1063/5.0154397

Google Scholar

[7] A. S. Arifin, K. Karyadi, and N. Nindyawati, "Experimental Study on the Failure of Bamboo Laminated Hollow Section Beam-Column Joints using Glue-in-Rod Bracket," Reka Buana: Jurnal Ilmiah Teknik Sipil dan Teknik Kimia, vol. 8, no. 2, p.116–127, Nov. 2023.

DOI: 10.33366/rekabuana.v8i2.4638

Google Scholar

[8] "ASTM E2126-11: Standard Test Methods for Cyclic (Reversed) Load Test for Shear Resistance of Vertical Elements of the Lateral Force Resisting Systems for Buildings," 2018.

DOI: 10.1520/e2126-01

Google Scholar

[9] "ANSI/AISC 360-16: Specification for Structural Steel Buildings," Chicago, 2016.

Google Scholar

[10] "Eurocode 3: Design of steel structures - Part 1-8: Design of joints," 2004.

Google Scholar

[11] "SNI 7834:2012: Metode Uji dan Kriteria Penerimaan Sistem Struktur Rangka Pemikul Momen Beton Bertulang Pracetak Untuk Bangunan Gedung," 2012.

DOI: 10.37760/neoteknika.v2i1.892

Google Scholar

[12] Y. Leng, Q. Xu, K. A. Harries, L. Chen, K. Liu, and X. Chen, "Experimental study on mechanical properties of laminated bamboo beam-to-column connections," Eng. Struct., vol. 210, p.110305, May 2020.

DOI: 10.1016/j.engstruct.2020.110305

Google Scholar

[13] H. Yang et al., "Experimental static and seismic behaviour of glulam beam-to-column connection with screwed-in threaded rod joints," Bioresources, vol. 16, no. 3, p.5272–5286, Jun. 2021.

DOI: 10.15376/biores.16.3.5272-5286

Google Scholar

[14] Q. Xie, L. Zhang, W. Zhou, L. Wang, and T. Zhou, "Cyclical behavior of timber mortise-tenon joints strengthened with shape memory alloy: experiments and moment-rotation model," International Journal of Architectural Heritage, vol. 13, no. 8, p.1209–1222, Nov. 2019.

DOI: 10.1080/15583058.2018.1501116

Google Scholar

[15] Y. Wang, Y. Feng, Z. Huang, and Z. Chen, "Cyclic loading test of a bamboo-steel hybrid frame with novel energy-dissipation connections," Bioresources, vol. 15, no. 2, p.3504–3523, Mar. 2020.

DOI: 10.15376/biores.15.2.3504-3523

Google Scholar

[16] Masdiana, H. Parung, HM. W. Tjaronge, and R. Djamaluddin, "Studi Eksperimen Sambungan Balok Model Takik Terhadap Perilaku Joint Interior Pracetak Akibat Beban Siklik," in Prosiding Seminar Nasional Teknik Sipil, Surakarta: Fakultas Teknik Universitas Muhammadiyah Surakarta, 2016, p.400–430.

DOI: 10.62603/konteks.v2i3.166

Google Scholar

[17] N. Gattesco, A. Gubana, M. Buttazzi, and M. Melotto, "Experimental investigation on the behavior of glued-in rod joints in timber beams subjected to monotonic and cyclic loading," Eng. Struct., vol. 147, p.372–384, Sep. 2017.

DOI: 10.1016/j.engstruct.2017.03.078

Google Scholar

[18] E. F. G. Adikusuma, A. Awaludin, and A. Triwiyono, "SAMBUNGAN BALOK-KOLOM KERUING DENGAN TULANGAN GFRP DAN PERKUATAN PELAT BAJA SIKU AKIBAT BEBAN MONOTONIK," Universitas Gadjah Mada, Yogyakarta, 2017.

DOI: 10.18196/st.221236

Google Scholar

[19] "Eurocode 8: Design of structures for earthquake resistance," 1998.

Google Scholar
