Numerical Study of the Strength of Laminated Bamboo Hollow Section Beam and Column Connection Using Glued-In Rod-Steel Box

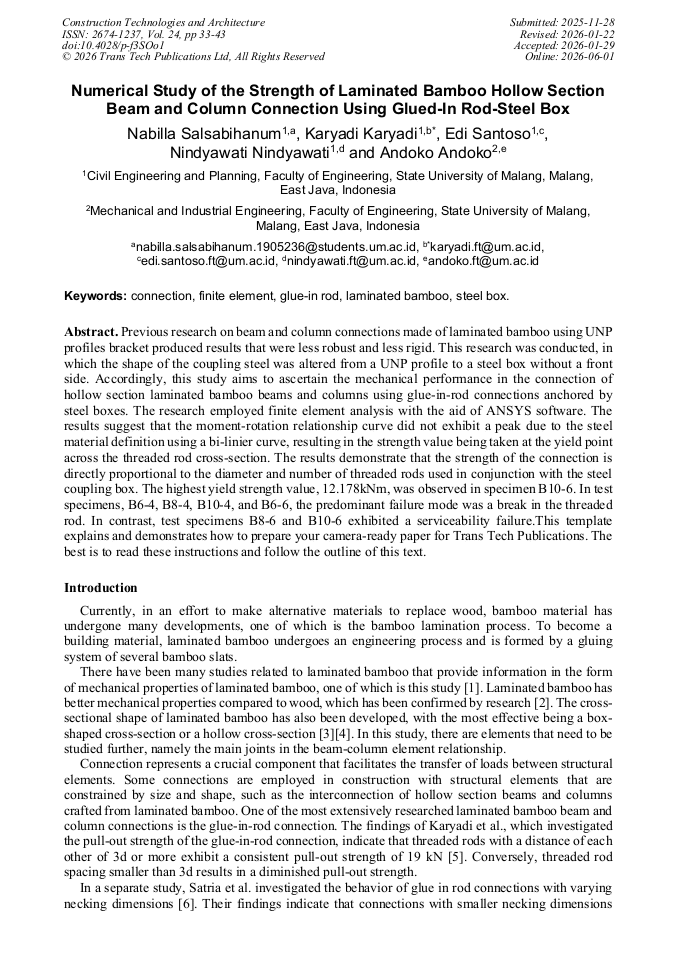

Article Preview

Abstract:

Previous research on beam and column connections made of laminated bamboo using UNP profiles bracket produced results that were less robust and less rigid. This research was conducted, in which the shape of the coupling steel was altered from a UNP profile to a steel box without a front side. Accordingly, this study aims to ascertain the mechanical performance in the connection of hollow section laminated bamboo beams and columns using glue-in-rod connections anchored by steel boxes. The research employed finite element analysis with the aid of ANSYS software. The results suggest that the moment-rotation relationship curve did not exhibit a peak due to the steel material definition using a bi-linier curve, resulting in the strength value being taken at the yield point across the threaded rod cross-section. The results demonstrate that the strength of the connection is directly proportional to the diameter and number of threaded rods used in conjunction with the steel coupling box. The highest yield strength value, 12.178kNm, was observed in specimen B10-6. In test specimens, B6-4, B8-4, B10-4, and B6-6, the predominant failure mode was a break in the threaded rod. In contrast, test specimens B8-6 and B10-6 exhibited a serviceability failure.This template explains and demonstrates how to prepare your camera-ready paper for Trans Tech Publications. The best is to read these instructions and follow the outline of this text.

You might also be interested in these eBooks
The 5th International Conference on Green Civil and Environmental Engineering (GCEE) View Preview

Info:

Periodical:

Construction Technologies and Architecture (Volume 24)

Pages:

33-43

DOI:

https://doi.org/10.4028/p-f3SOo1

Citation:

Cite this paper

Online since:

June 2026

Authors:

Nabilla Salsabihanum, Karyadi Karyadi*, Edi Santoso, Nindyawati Nindyawati, Andoko Andoko

Keywords:

Connection, Finite Element, Glued-In Rod, Laminated Bamboo, Steel Box

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] N. I. S. Hermanto, I. Satyarno, D. Sulistyo, and T. A. Prayitno, "Sifat Mekanika Bambu Petung Laminasi," Dinamika Rekayasa, vol. 10, no. 1, Feb. 2014.

Google Scholar

[2] I. GL. B. Eratodi, "Teknologi Bambu Laminasi Sebagai Material Ramah Lingkungan Tahan Gempa," Konferensi Nasional Teknik Sipil (KoNTekS), vol. 4, Jun. 2010.

DOI: 10.62603/konteks.v1i6.126

Google Scholar

[3] Karyadi, S. M. Dewi, and A. S. MD, "A Comparison of Shear Strength of Box-section Beam Made of Sliced-laminated Dendrocalamus Asper Under Torsion and Transversal Load," Procedia Eng, vol. 95, p.38–42, 2014.

DOI: 10.1016/j.proeng.2014.12.163

Google Scholar

[4] Karyadi and P. B. Susanto, "Mechanical characteristics of box-section beam made of sliced-laminated Asian bamboo (Dendrocalamus asper) in bending failure mode under transversal load," 2017, p.020062.

DOI: 10.1063/1.5003545

Google Scholar

[5] K. Karyadi, B. Prayogo, N. Nindyawati, and P. B. Susanto, "Pull-out Resistance Parallel to Grain of Threaded Steel Rod Glued-in Glubam with Edge Distance Variation," Research Journal of Applied Sciences, Engineering and Technology, vol. 17, no. 1, p.1–6, Feb. 2020.

DOI: 10.19026/rjaset.17.6027

Google Scholar

[6] A. Satria, A. Awaludin, and I. S. Irawati, "Behaviour of Beam-Column Connection Keruing Timber With Steel Glue in Rods Under Monotonic Load," in Prosiding SENATEK, Purwokerto, Oct. 2017.

Google Scholar

[7] N. Gattesco, A. Gubana, M. Buttazzi, and M. Melotto, "Experimental investigation on the behavior of glued-in rod joints in timber beams subjected to monotonic and cyclic loading," Eng Struct, vol. 147, p.372–384, Sep. 2017.

DOI: 10.1016/j.engstruct.2017.03.078

Google Scholar

[8] H. Yang, W. Liu, and X. Ren, "A component method for moment-resistant glulam beam–column connections with glued-in steel rods," Eng Struct, vol. 115, p.42–54, May 2016.

DOI: 10.1016/j.engstruct.2016.02.024

Google Scholar

[9] Karyadi, R. Aprilianto, Nindyawati, and Andoko, "Laminated bamboo hollow section beam and column connection using glued-in rod and channel: Numerical study," 2023, p.020013.

DOI: 10.1063/5.0154397

Google Scholar

[10] "Specification for Structural Steel Buildings," in ANSI/AISC 360-10: An American National Standard, Chicago: American Institute of Steel Construction, 2010.

Google Scholar

[11] P. Manik, S. J. Sisworo, G. Rindo, and Kamal, "Technical and Economic Analysis of the Usages Glued Laminated of Apus and Petung Bamboo as an Alternative Material Component of Timber Shipbuilding," Mater Today Proc, vol. 13, p.115–120, 2019.

DOI: 10.1016/j.matpr.2019.03.199

Google Scholar

[12] W. Dewobroto, Struktur Baja: Perilaku, Analisis & Desain - AISC 2010, 2nd ed. Jakarta: Lumina Press, 2016.

Google Scholar

[13] A. S. Cahyo, K. Karyadi, and P. B. Susanto, "Effect of diameter and anchor length of glued-in rod embedded radial to grain in laminated petung bamboo to pull-out strength," 2022, p.030034.

DOI: 10.1063/5.0094357

Google Scholar

[14] K. Karyadi, E. W. A. Basuki, P. B. Susanto, and N. Nindyawati, "Sidewall Thickening as Strengthening for Box-Section Laminated Bamboo Beam under Transverse Load in Shear Failure Mode," Research Journal of Applied Sciences, Engineering and Technology, vol. 16, no. 3, p.129–134, May 2019.

DOI: 10.19026/rjaset.16.6008

Google Scholar

[15] A. W. Abzarih, I. S. Irawati, and B. Suhendro, "Nonlinear Numerical Model of Glued-Laminated Petung Bamboo Under Flexural Test Based on ASTM D 143-94," 2022, p.99–118.

DOI: 10.1007/978-981-16-7924-7_7

Google Scholar

[16] K. Karyadi, O. Prastika Putri, P. Bagus Susanto, and Nindyawati, "Strength and Stiffness of Segmented Compression Part Beam Made of Sliced Laminated Bamboo Due to Transverse Load on Shear Failure Mode," in 2020 4th International Conference on Vocational Education and Training (ICOVET), IEEE, Sep. 2020, p.278–283.

DOI: 10.1109/ICOVET50258.2020.9230108

Google Scholar

[17] S. Zulaichah, "Perbandingan Kekuatan Geser Balok dan Blok Geser Dari Bambu Petung Laminasi Arah Radial," Universitas Negeri Malang, Malang, 2014.

DOI: 10.22216/jit.2016.v10i1.446

Google Scholar

[18] S. Ningrum, "Perbandingan Kekuatan Geser Balok dan Blok Geser Dari Bambu Petung Laminasi Arah Tengensial," Universitas Negeri Malang, Malang, 2014.

DOI: 10.22216/jit.2016.v10i1.446

Google Scholar

[19] Rajeswara. R. Resapu and L. R. Perumahanthi, "Numerical study of bilinear isotropic & kinematic elastic–plastic response under cyclic loading," Mater Today Proc, vol. 39, p.1647–1654, 2021.

DOI: 10.1016/j.matpr.2020.05.812

Google Scholar
